PN / GRD-GBR1 *

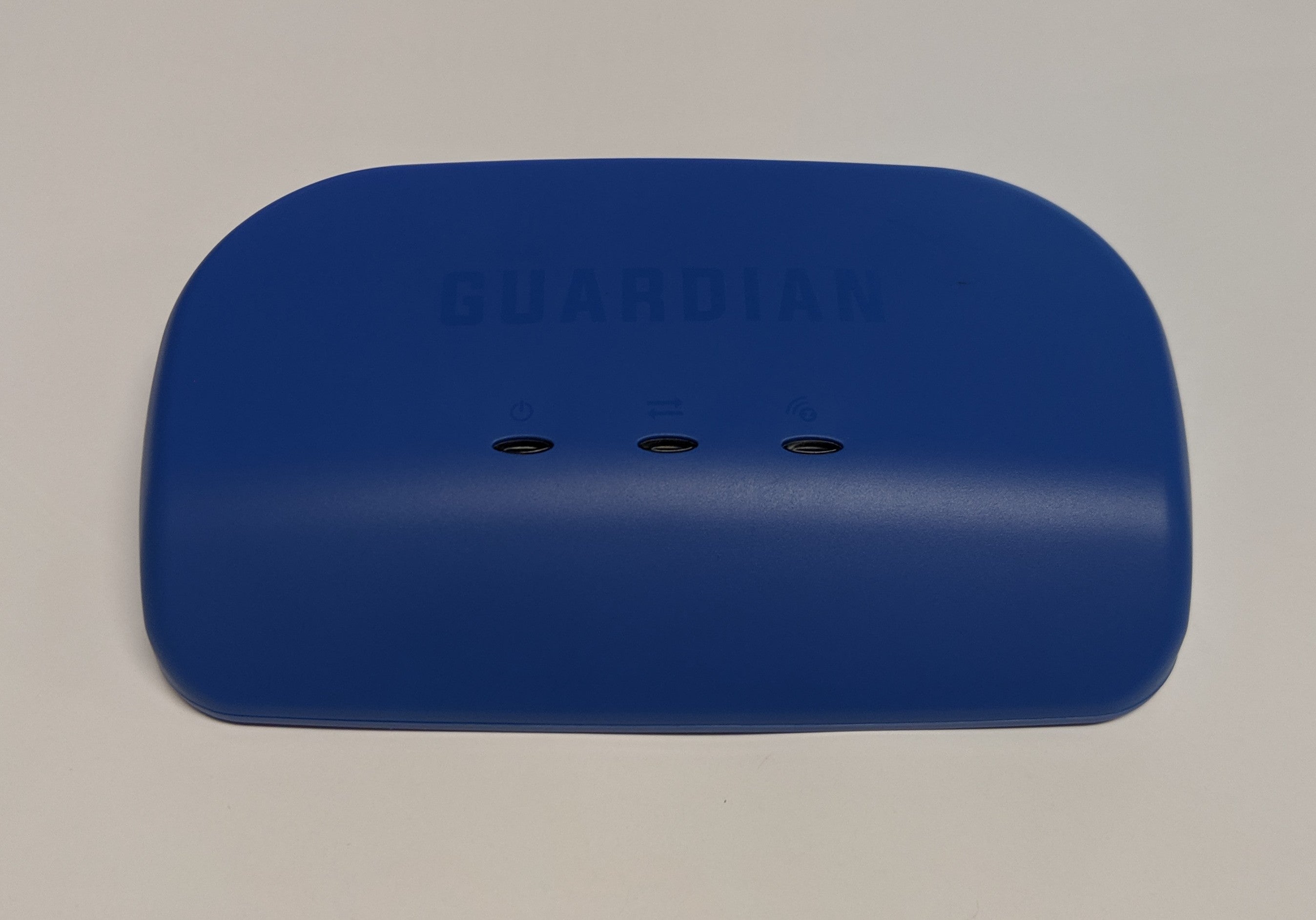

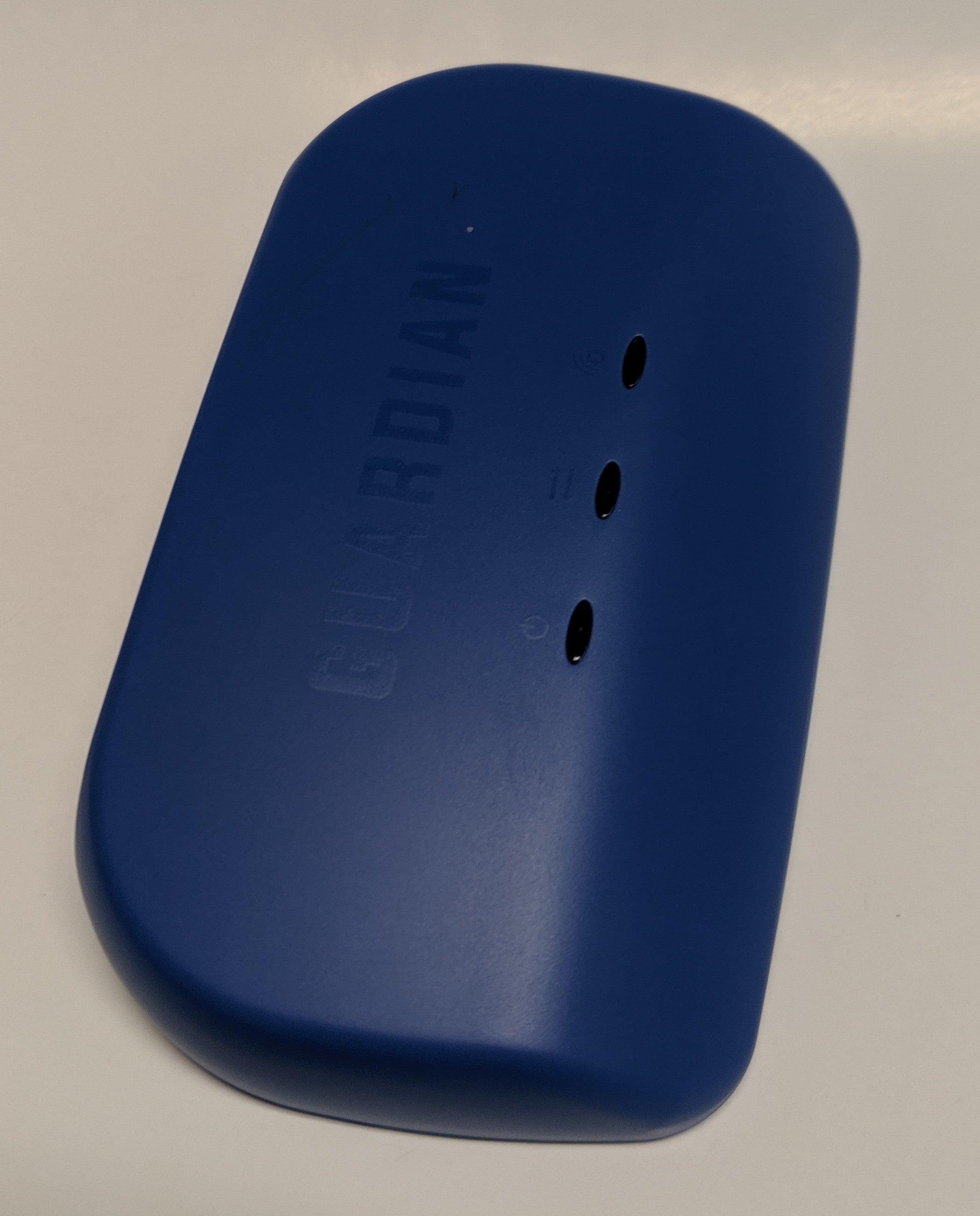

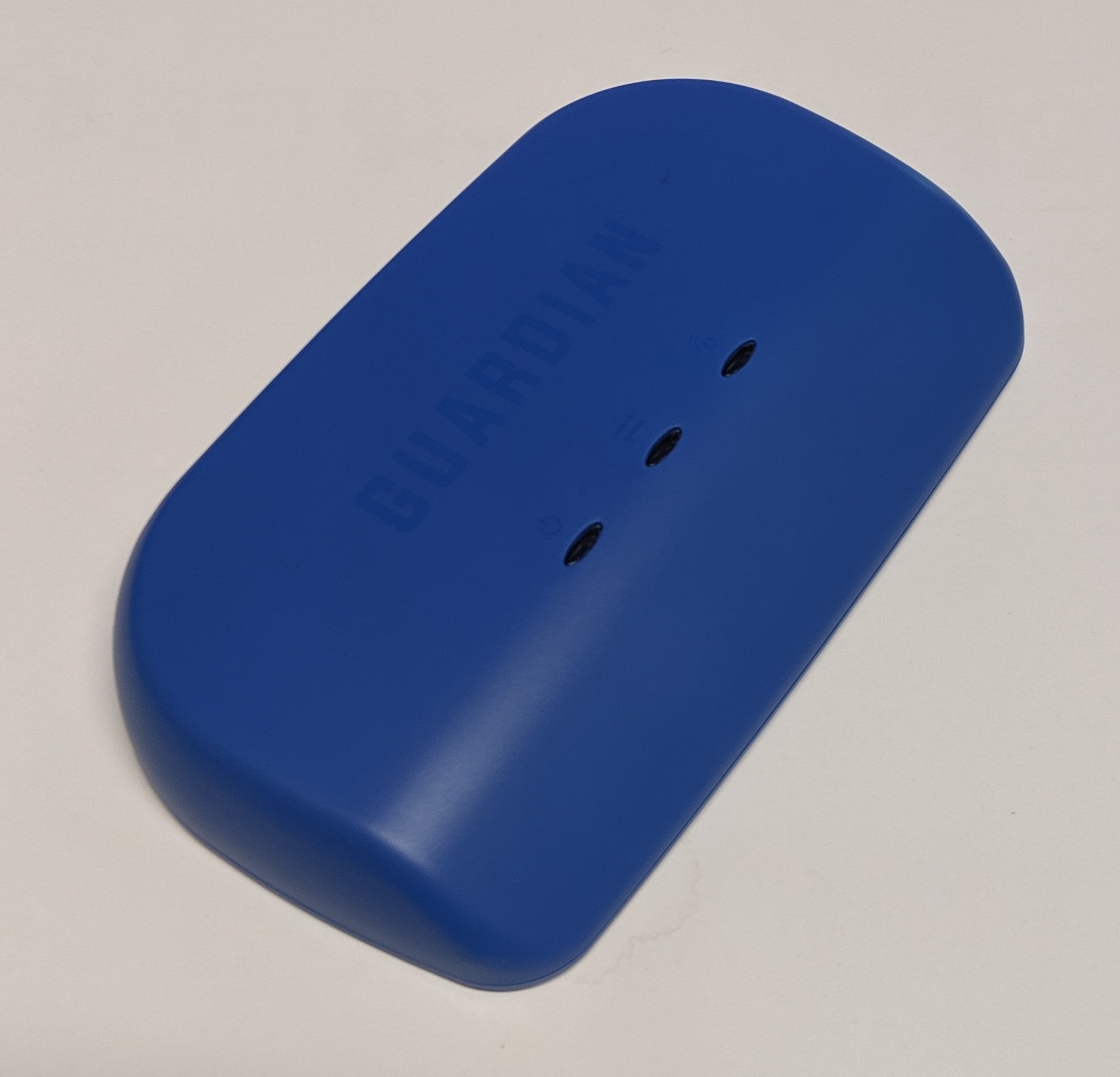

| The Guardian Bridge allows any security or Z-Wave automation system to interface with the Guardian ecosystem. The Bridge communicates wirelessly with the Guardian Valve controller (GVC1) and provides control and feedback to the connected 3rd party system using Z-Wave and/or hardwire connection. When paired with the Z-Wave controller, the bridge allows for open/close control of the valve and provides notification if water is detected by any device on the Guardian system. The Bridge also includes a hardwiring connection. Opening or Closing a dry contact input allows for control of the valve using relay output from security panel or automation controller. The Guardian Bridge, on-board low voltage relay, will close when Guardian detects any leaks what can trigger an event on the connected system. In addition to USB power input, there is also 12V DC input available for powering the Guardian Bridge directly from the Security panel. |
| TECHNICAL SPECIFICATIONS | ||
| Physical Attributes | Dimensions | 4.92"x2.71"x0.84" (WxHxD) |
| Ingress Protection | For indoor use only | |
| Required Tools | None | |
| Power Specs | Power Supply | Included 4ft micro USB power supply or optional 12V DC power input |

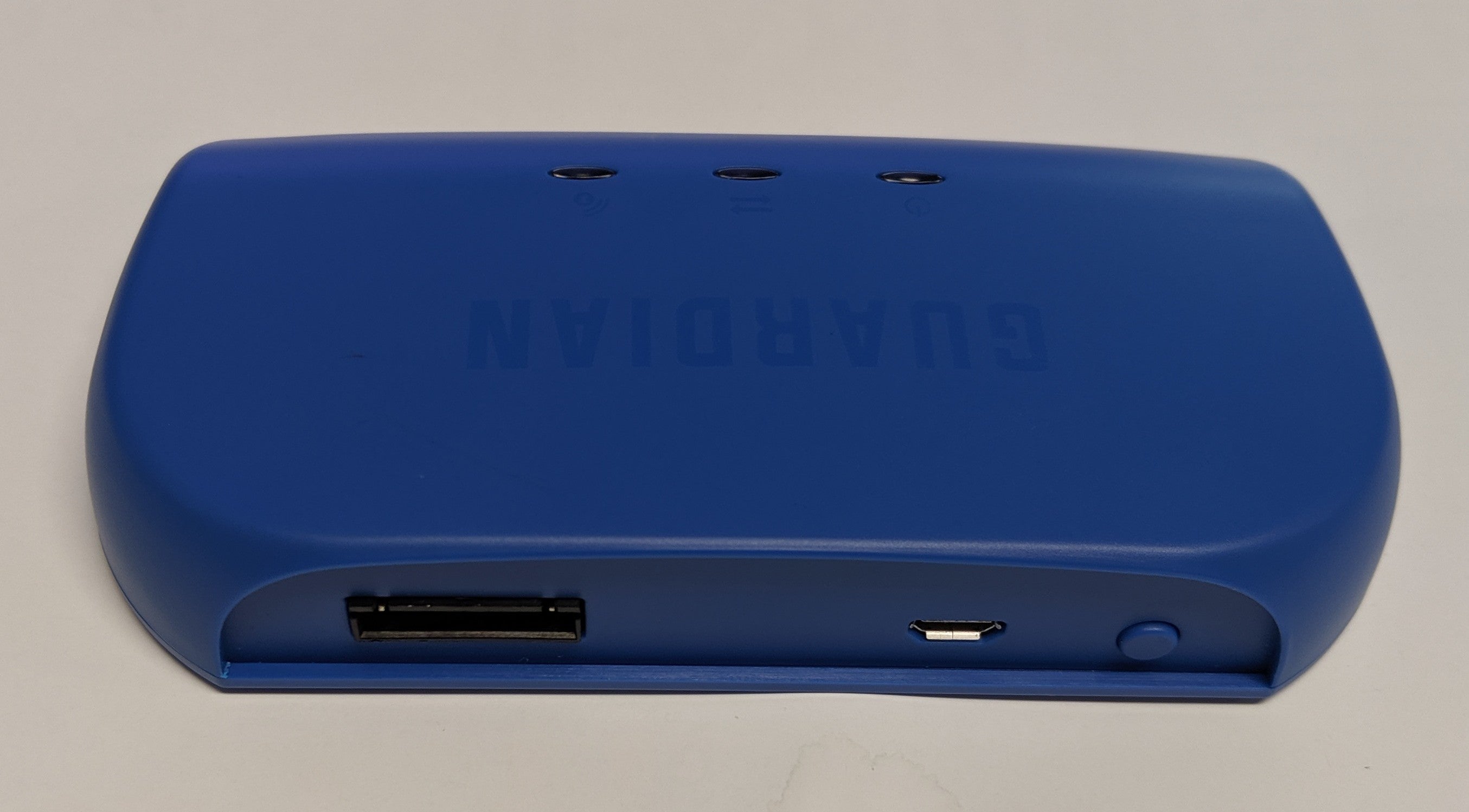

| Connectivity | Inputs | USB Power, 9-15V input power, Dry contact |
| Output | NC/NO Low Voltage relay | |
| Wireless Connectivity | Z-Wave, Guardian RF | |
| Subscription Fees | None | |
| Physical Interfacing Options | Audible Alerts | None |
| Visual Alerts | Yes, via LED | |
| Button Functionality | Inclusion, Exclusion and Factory reset | |
| LED Status Indicator | Power, Guardian RF, Inclusion and Exclusion | |
| 3rd Party Integration | Z-Wave |
Association Groups - AG 1: Binary Report on valve open/close, Notification Report on sensor dry/wet AG 2: Valve open/close Basic Report AG 3: Multilevel Report with temperature every 60 minutes Command Class - Basic, Switch_Binary, Sensor, Multilevel, Multi_Channel, Firmware_Update_MD, Notification, Configuration |
| Hardwire | Leak detection, Vavle Control using standard relay | |
| Requirements | Guardian Valve Controller | |
