PN/ VIV-FD-8166A-N*

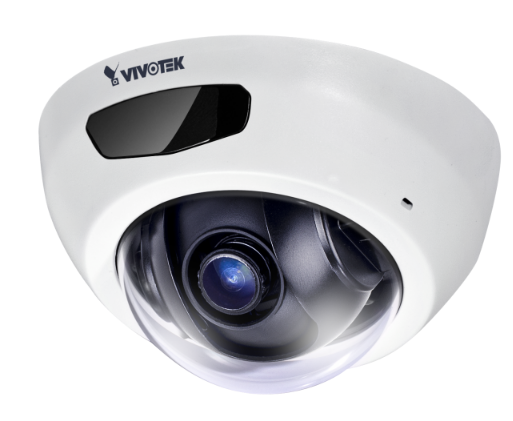

DOME ULTRA MINI 2MP 2.8MM
FEATURES:
- 2-Megapixel CMOS Sensor
- 30 fps @ 1920x1080
- Real-time H.264 and MJPEG Compression (Dual Codec)
- SNV (Supreme Night Visibility) for Low Light Conditions
- Built-in 940nm Invisible IR Illuminators up to 6 M
- Smart IR Technology to Avoid Overexposure
- Smart Stream II to Optimize Bandwidth Efficiency
- WDR Enhanced
- 3D Noise Reduction
- Defog
- Built-in IEEE 802.3af Compliant PoE
- Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
- Compact and Stylish Design
- Easy Installation
- VIVOCloud Mobile App
SPECIFICATIONS:
| Product SKU | FD8166A-N |
|---|---|
| Brand | Vivotek |
| Condition | New |
| Features | Wide Dynamic Range |
| Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS |
| S/N Ratio | 47dB |
| Power Consumption | Max. 4.75 W |
| Operating Temperature | -10°C ~ 50°C (14°F ~ 122°F ) |
| Operating Humidity | 0.9 |
| IR Distance | 6m/19.68ft |
| Motion Detection Tracking | Five-window video motion detection |
| Angle of View | 113° (Horizontal), 63° (Vertical), 136° (Diagonal) |
| Digital Noise Reduction | 3D |
| Minimum Scene Illumination | 0.05 Lux @ F1.8 (Color) <0.001 Lux @ F1.8 (B/W), 0 Lux with IR illumination on |
| IR Wavelength | 940nm |
| Camera Signal | Network IP |
| Connection Type | Wired |
| Infrared Distance | 0~60 Feet |
| Resolution | 2 Megapixel |
| Lens Size | 2.8mm |
| Mount Type | Wall |
| Compression Method | M-JPEG |
| Durability | Indoor |
| Voltage | PoE |
| Lens Type | Fixed |
| Dimensions (W x H) | Ø 90 x 50 mm |
| Image Device | 1/2.8" Progressive CMOS |
| Electronic Shutter | 1/5 sec. to 1/32,000 sec |
| Back Light Compensation | Yes |
| Automatic White Balance | Yes |
| Digital Noise Reduction | Yes |
| Privacy Masking | Yes |
| Day/Night | Yes |
| Wide Dynamic Range | Yes |
| Motion Detection Tracking | Yes |
| Mirror | Yes |
| Auto Gain Control | Yes |
| Audio | Yes |
| ONVIF | Yes |
| Digital Zoom | Yes |
