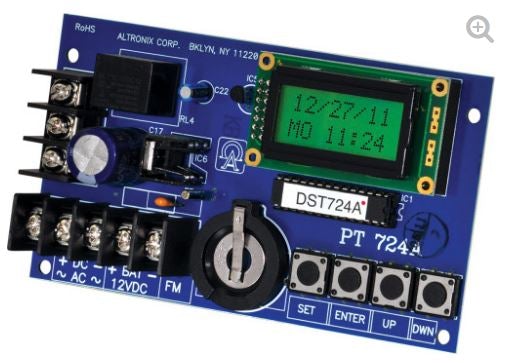

ALTRONIX PT724A Timer, 365 Day 24 Hour Annual Event, 1 Channel, LCD Display, Battery Charger, Board
PN / AX-PT724A *
Model PT724A is an extremely versatile 24 Hour 365 Day Event Timer
designed to support a wide range of applications
12 to 24 volts AC or DC operation Standby current:
10mA (relay off) 50mA (relay on).Form “C”
- 12 to 24 volts AC or DC operation
- Form "C" relay contacts are rated 10A @120VAC/28VDC.
- Standby current: 10mA (relay off) 50mA (relay on).
- EE Prom memory protects against loss of programming due to power failure.
- Accurate crystal controlled clock.
- Momentary and/or Latching Events.
- 50 individually programmed daily/weekly events.
- Block programming capacity can accommodate a total of 350 events per week.
- 10 programmable Holiday dates.
- "First man in" option.
- Standard or Daylight Savings Time settings.
- Automatic compensation for leap year.
- Alphanumeric LCD display simplifies programming.
- Built-in charger for 12VDC sealed lead acid or gel type batteries(Max charge current 100mA).
- Optional lithium battery backup maintains clock.
- Order Altronix part # LB2032.
- Operating -20ºC to 49ºC ( -4ºF to 120ºF).
- Storage -25ºC to 70ºC ( -13ºF to 158ºF).
- Relative Humidity 85% +/- 5%.
