PN / 5624081B-BK *

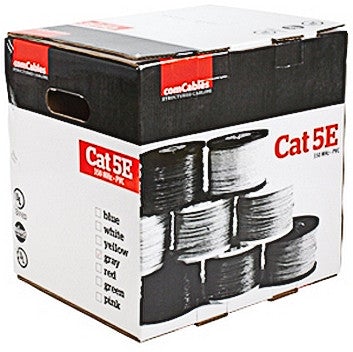

ETL Verified CMR Non-Plenum Category 5e Cable
UL LISTED
CABLE SPECIFICATIONS
DESCRIPTION
24 AWG Category 5e Unshielded Twisted Pair (UTP) Cable For Data Transmission up to 350MHz.This Cable is Non-Plenum Rated and Verified to Category 5e Electricals
CONDUCTOR
24 AWG Solid Bare Copper
INSULATION
HDPE - High-Density Polyethylene
COLOR CODE
Pair 1: White-Blue/Blue
Pair 2: White-Orange/Orange
Pair 3: White-Green/Green
Pair 4: White-Brown/Brown
SHIELD
N/A
DRAIN WIRE
N/A
JACKET
PVC; OD: CMR
JACKET COLOR
Multiple Optionjs
MARKING
UTP4-C5E-SOLID-CMR-XX-305----E303448 U/UTP 4PR 24AWG C(UL)US
CMR---ETL VERIFIED TO ANSI/TIA-568-C.2 CAT.5E 350Mhz WW/YYXXXXFT
CAPACITANCE
5.6 nF/m Max
IMPEDANCE
85 - 115 Ohms
DC RESISTANCE
9.38 Ohms/100m
TEMPERATURE RATING
75
INDUSTRY STANDARDS
AGENCY APPROVALS ETL
