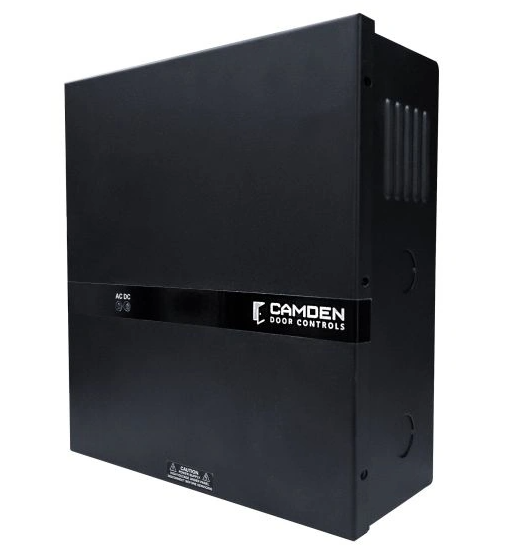

Camden CX-PS150UL 1.7 Amp Power Supply/Charger
Reliable Power for Access-Control and Egress-Door Systems
The Camden CX-PS150UL is a selectable 12/24 VDC power supply and battery charger designed for access-control and door-control applications. Providing dependable power for electric strikes, magnetic locks, and related access devices, it combines protected outputs, fire-alarm integration, battery backup support, and convenient status monitoring in a durable metal enclosure.
Key Features
-
Selectable 12 or 24 VDC operation
-
1.7-amp total power capacity
-
Dedicated connections for a magnetic lock and electric strike
-
200mA auxiliary output for access-control devices requiring continuous power
-
Built-in 500mA battery charger
-
Automatic transfer to standby battery during an AC power failure
-
Supports one 4Ah sealed lead-acid or gel-cell battery
-
Latching fire-alarm or access-control interface with reset
-
Request-to-exit input for releasing connected locking hardware
-
Overcurrent, short-circuit, terminal, and battery-reversal protection
-
Green AC, blue DC, and yellow alarm-trigger status indicators
-
Heavy-gauge metal enclosure
-
UL 294 and ULC-S533 listed
Designed for Safer Door Control
The CX-PS150UL includes a supervised fire-alarm and access-control interface that can interrupt power to connected locking devices when triggered. Configurable automatic and manual reset options provide installation flexibility for different access-control and life-safety requirements.
Its auxiliary output remains powered independently of the fire-alarm trigger, making it suitable for compatible readers, keypads, sensors, and other low-current access devices.
Battery-Backup Capability
A built-in charger supports an optional 4Ah standby battery and automatically switches the system to battery power if AC service is interrupted. Battery-reversal protection helps protect the power supply from incorrect battery connections.
Ideal Applications
-
Electric strikes
-
Magnetic locks
-
Access-control systems
-
Egress-door systems
-
Card readers and keypads
-
Request-to-exit devices
-
Low-voltage door-control installations
Technical Specifications
-
Model: CX-PS150UL
-
Input: 120 VAC, 60 Hz
-
Selectable output voltage: 12 or 24 VDC
-
Locking-device output: 1 amp continuous
-
Auxiliary output: 200mA
-
Battery-charging output: 500mA
-
Supported battery: One 12VDC or 24VDC, 4Ah battery, depending on system configuration
-
Enclosure: Metal
-
Installation environment: Indoor, protected, controlled environment
-
Certifications: UL 294 and ULC-S533
-
Battery included: No
The Camden CX-PS150UL provides an efficient, installation-friendly power solution for professional access-control and electrified-door systems requiring dependable operation, fire-alarm integration, and standby battery support.
