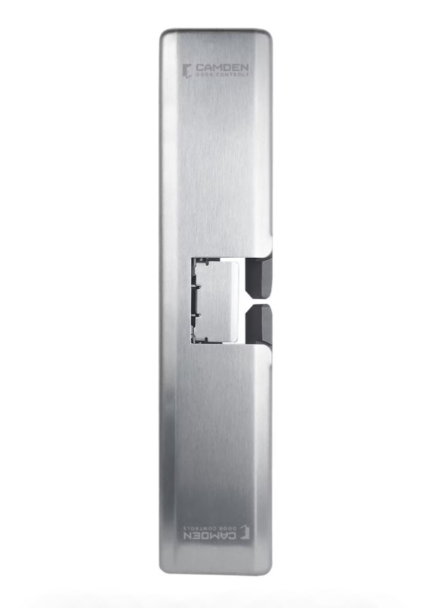

Camden CX-EPD1299L Surface-Mount RIM Electric Strike with Preload

The Camden CX-EPD1299L is a heavy-duty, low-profile RIM electric strike engineered for demanding access-control applications. Its patented preload design allows the strike to release reliably under up to 15 pounds of pressure, helping maintain dependable operation when door misalignment, weather conditions, or building pressure places force against the strike keeper.

At only 9/16 inch deep, the CX-EPD1299L provides a clean surface-mounted installation without requiring a large frame cutout. Its universal design supports 12 or 24V AC/DC power, field-selectable fail-safe or fail-secure operation, and both left- and right-handed doors. Included 1/8-inch and 1/4-inch spacer plates accommodate latch projections up to 3/4 inch.

A plug-in latch-monitoring assembly provides door-security status for integration with access-control and alarm systems. The included metal mounting jig helps make installation faster and more accurate.

Key Features

  • Low-profile 1/2-inch surface-mount RIM electric strike

  • Patented design operates under up to 15 lb of preload pressure

  • BHMA/ANSI A156.31 Grade 1 certified

  • UL Security listed

  • UL-verified static strength of 1,500 lb

  • 70 ft-lb dynamic-strength rating

  • Field-selectable fail-safe or fail-secure operation

  • Selectable 12 or 24V AC/DC power

  • Plug-in SPDT latch-monitoring assembly included

  • Non-handed design for left- or right-handed doors

  • Continuous-duty operation

  • Silent operation with DC power and audible buzz with AC power

  • Factory tested to 1,000,000 operating cycles

  • 1/8-inch and 1/4-inch spacer plates included

  • Metal installation jig included

  • Brushed aluminum finish

  • Backed by Camden’s five-year warranty

Technical Specifications

  • Model: CX-EPD1299L

  • Product type: Surface-mount RIM electric strike

  • Latch projection: 1/2 inch; accommodates up to 3/4 inch with included spacer plates

  • Voltage: 12/24V AC/DC

  • Current draw: 560mA at 12V DC; 280mA at 24V DC

  • Locking mode: Field-selectable fail safe or fail secure

  • Duty: Continuous

  • Static strength: 1,500 lb, UL verified

  • Dynamic strength: 70 ft-lb

  • Preload capacity: Up to 15 lb

  • Endurance: 1,000,000 cycles factory tested; 500,000 cycles UL verified

  • Latch monitor: SPDT, 100mA at 24V DC, resistive

  • Handing: Non-handed

  • Finish: Brushed aluminum

  • Dimensions: 9-3/16 inches high × 1-7/8 inches wide × 9/16 inch deep

  • Certification: BHMA/ANSI A156.31 Grade 1

  • Security listing: UL listed

  • Warranty: Five years

Package Includes

  • CX-EPD1299L surface-mount RIM strike

  • Plug-in latch-monitoring assembly

  • 1/8-inch spacer plate

  • 1/4-inch spacer plate

  • Metal mounting jig
