Camden CX-ED2079 Universal Low-Profile Electric Strike

Flexible 12/24V Access Control for Cylindrical Locksets

The Camden CX-ED2079 is a universal low-profile electric strike designed for cylindrical locksets in commercial access-control applications. It supports 12/24V AC or DC operation, field-selectable fail-safe or fail-secure functionality, and horizontal strike-body adjustment for easier alignment during installation.

Three included stainless-steel faceplates allow the strike to accommodate ANSI square, hollow-metal, and wood-door frames, reducing the need to order separate faceplates for common installations.

Key Features

• Universal Low-Profile Design — Fits applications where frame depth and installation space are limited.

• Designed for Cylindrical Locksets — Features centerline latch entry for compatible cylindrical locks.

• 12/24V AC or DC Operation — Provides flexible compatibility with common access-control power supplies.

• Selectable Fail-Safe or Fail-Secure Operation — Can be configured in the field to meet project requirements.

• Non-Handed Design — Works with left- or right-hand doors for simplified ordering and installation.

• Horizontal Adjustment — Allows the strike body and faceplate to be aligned with the lockset latch.

• Three Stainless-Steel Faceplates Included — Supports ANSI square, hollow-metal, and wood-door frame applications.

• 1,000-Pound Static Strength — Provides dependable holding strength for commercial installations.

• 50-Foot-Pound Dynamic Strength — Built to withstand impact at the doorway.

• High-Cycle Endurance — Factory tested for 700,000 cycles and UL verified for 500,000 cycles.

• Continuous-Duty Operation — Suitable for applications requiring prolonged electrical operation.

• AC or DC Performance — Produces an audible buzz with AC power and operates silently with DC power.

• UL 1034 and UL 294 Listed — Tested for use in security and access-control applications.

• ANSI/BHMA A156.31 Certified — Meets recognized electric-strike performance standards.

• 5-Year Warranty — Backed by Camden Door Controls.

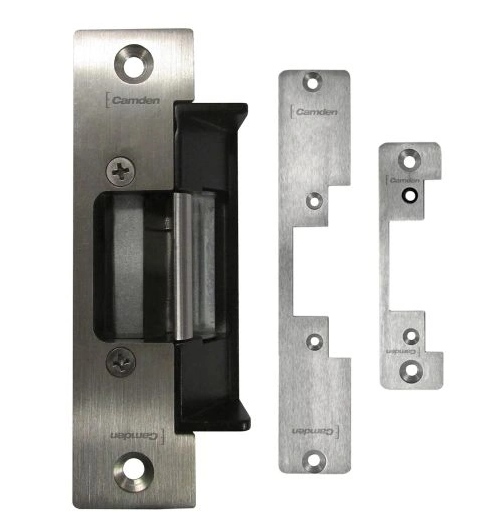

Three Faceplates for Greater Installation Flexibility

The CX-ED2079 includes three stainless-steel faceplates for common frame types:

• CX-ESP1B: ANSI square, 4-7/8 × 1-1/4 inches

• CX-ESP3B: Hollow-metal door frame, 6-7/8 × 1-1/4 inches

• CX-ESP4B: Wood-door frame, 7-15/16 × 1-7/16 inches

This multi-faceplate package helps installers adapt the strike to different door-frame configurations without purchasing separate components.

Ideal Applications

• Commercial access-controlled doors

• Cylindrical lockset installations

• Offices and retail locations

• Schools and institutional facilities

• Warehouses and industrial properties

• Multi-tenant buildings

• Hollow-metal door frames

• Wood-door frames

• New construction and retrofit projects

• Fail-safe or fail-secure access-control systems

Technical Specifications

• Lockset Compatibility: Cylindrical locksets

• Latch Projection: 1/2–5/8 inch

• Operating Voltage: 12/24V AC or DC

• Current Draw: 300 mA at 12V DC; 150 mA at 24V DC

• Operating Mode: Field-selectable fail-safe or fail-secure

• Duty: Continuous

• AC Operation: Audible buzz

• DC Operation: Silent

• Static Strength: 1,000 lbs.

• Dynamic Strength: 50 ft-lbs.

• Endurance: 700,000 cycles factory tested; 500,000 cycles UL verified

• Mounting: Non-handed

• Adjustment: Horizontal strike-body and faceplate adjustment

• Included Faceplates: 3 × stainless steel

• Strike-Body Dimensions: 4-7/8 × 1-7/8 × 1-7/32 inches

• Listings and Certifications: UL 1034, UL 294, and ANSI/BHMA A156.31

• Warranty: 5 years

The Camden CX-ED2079 combines dual-voltage operation, selectable locking modes, rugged performance, and three included faceplates—making it a versatile and installer-friendly electric strike for professional access-control systems.
