PN / CAM-CX-DA800-KD *

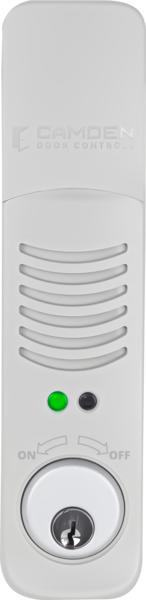

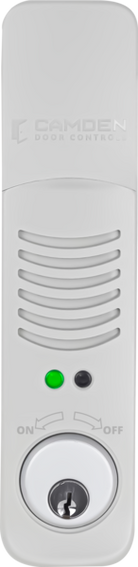

Camden CX-DA800KD Battery-Powered Exit Door Alarm

The Camden CX-DA800KD is a compact, battery-powered exit alarm designed to provide immediate audible and visual notification when a secured door is opened. Its powerful 105dB sounder helps deter unauthorized entry or exit, while an LED and buzzer provide instant local alerts.

With no external power or wiring required, the CX-DA800KD offers a straightforward solution for retail stores, offices, warehouses, schools, healthcare facilities, and other buildings where emergency exits or restricted doors need to be monitored. The alarm can be installed on the door or frame and is suitable for both in-swinging and out-swinging doors.

This model features a grey housing and includes a keyed-different mortise cylinder with two keys, allowing it to be controlled independently from other alarms. It also includes a magnetic door contact, 9V battery, and cylinder installation tool.

Key Features

  • Immediate alarm activation when the monitored door opens

  • Loud 105dB alarm sounder

  • LED and buzzer provide immediate visual and audible alerts

  • Automatically silences after two minutes or can be silenced manually with the key

  • Standard Armed and Always Armed operating modes

  • Battery powered—no external wiring required

  • Low-battery alert

  • Mounts on either the door or frame

  • Suitable for in-swinging and out-swinging doors

  • Built-in door contact with NC external contact input

  • Magnetic door contact included

  • Grey housing

  • Keyed-different mortise cylinder with two keys

  • Cylinder installation tool included

  • UL Listed

Product Specifications

  • Model: CX-DA800KD

  • Product type: Battery-powered exit door alarm

  • Finish: Grey

  • Cylinder: Keyed different, 1-1/8-inch mortise cylinder

  • Alarm output: 105dB at 3 feet (1 meter)

  • Power: 9V DC battery, included

  • Alarm triggering: Built-in door contact or normally closed external door contact

  • Operating modes: Manual Silence Mode and Auto Reset Mode

  • Arming modes: Standard Armed and Always Armed

  • Operating temperature: 32°F to 113°F (0°C to 45°C)

  • Impact protection: IK04

  • Device dimensions: 8-5/16 inches high × 2-1/16 inches wide × 2-1/2 inches deep

  • UPC: 670454225252

  • Listing: UL Listed

Package Includes

  • CX-DA800KD exit door alarm

  • Keyed-different mortise cylinder

  • Two keys

  • Magnetic door contact

  • 9V battery

  • Cylinder installation tool
