PN / CAM-CM-RQE70A * | Download data sheet

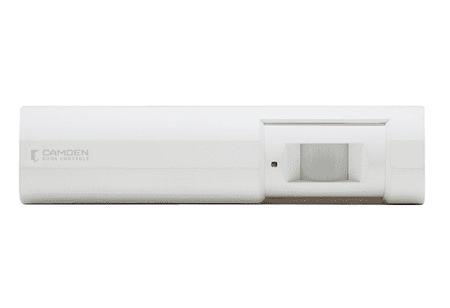

Camden CM-RQE70A PIR Request-to-Exit Detector
Intelligent, Touch-Free Exit Detection in a Compact Door-Frame Design
The Camden CM-RQE70A is a compact passive infrared motion detector designed to provide touch-free request-to-exit activation for access-controlled doors. Mounted above the doorway on the secure side, it detects an approaching occupant and signals the access-control system to release the locking hardware.
With dual Form “C” relay contacts, adjustable detection coverage, multiple operating modes, and convenient push-button programming, the CM-RQE70A provides installers with a flexible solution for commercial access-control and automatic-door applications.
Key Features
-
Passive Infrared Motion Detection — Detects movement from the secure side of an access-controlled doorway.
-
Touch-Free Request-to-Exit Activation — Allows occupants to exit without pressing a button or presenting a credential.
-
Compact Door-Frame Design — Slim housing is designed for mounting directly above the doorway.
-
Onboard Wiring Terminal — Simplifies installation and field connections.
-
Push-Button Programming — Allows easy configuration without DIP switches.
-
Four Factory-Default Modes — Provides quick setup for common door-control applications.
-
Fully Customizable Mode — Allows operating attributes to be configured for specialized installations.
-
Selectable Fail-Safe or Fail-Secure Operation — Adapts to different locking and security requirements.
-
Two Form “C” Relay Contacts — Provides flexible normally open and normally closed output connections.
-
Momentary or Latching Relay Modes — Supports a variety of access-control and door-operator configurations.
-
Adjustable Detection Coverage — Offers mechanical horizontal and vertical adjustment with electronic range and sensitivity control.
-
Up to 10 × 10-Foot Coverage — Provides a broad adjustable detection area.
-
Adjustable Time Delay — Selectable 5-, 15-, 30-, 45-, or 60-second relay timing.
-
Secondary Activation Input — Supports connection to an additional activation device.
-
Card or Keypad Input — Allows integration with compatible access-control credentials.
-
Door-Position Input — Supports connection to a normally open door-position switch.
-
Additional REX Input — Accepts a secondary normally open request-to-exit device.
-
Built-In Adjustable Sounder — Provides audible notification with selectable on/off operation and volume control.
-
Tamper Switch — Helps identify unauthorized removal or interference.
-
Activation LED — Provides clear visual indication during operation and setup.
-
UL Security Listed and RoHS Compliant — Designed to meet recognized security and environmental standards.
Flexible Door-Control Integration
The CM-RQE70A can be programmed for momentary or latching operation and includes inputs for a secondary activation device, credential reader, door-position switch, and request-to-exit device. Its two Form “C” relay contacts provide flexible control of electric strikes, magnetic locks, automatic-door operators, and access-control panels.
Ideal Applications
-
Access-controlled interior doors
-
Magnetic-lock installations
-
Electric-strike systems
-
Automatic-door operators
-
Offices and commercial facilities
-
Retail and hospitality properties
-
Schools and institutional buildings
-
Healthcare facilities
-
Touch-free exit applications
-
High-traffic controlled doorways
Technical Specifications
-
Detection Technology: Passive infrared
-
Operating Voltage: 12/24V DC
-
Maximum Current Draw: 50 mA
-
Relay Outputs: 2 × Form “C” (DPDT)
-
Contact Rating: 3A at 30V DC
-
Operating Modes: 4 factory-default modes and 1 fully customizable mode
-
Relay Operation: Momentary or latching
-
Fail Mode: Selectable fail-safe or fail-secure
-
Maximum Coverage: 10 feet wide × 10 feet high
-
Coverage Adjustment: Horizontal and vertical mechanical adjustment with electronic sensitivity and range control
-
Time Delay: 5, 15, 30, 45, or 60 seconds
-
Sounder: Adjustable on/off and volume
-
Piezo Buzzer Output: 92 dB at 10 cm
-
Inputs: Card/keypad, door-position switch, request-to-exit, and secondary activation device
-
Tamper Contact Rating: 50 mA at 12V DC
-
Operating Temperature: 32°F to 120°F (0°C to 50°C)
-
Operating Humidity: 0–93% RH, non-condensing
-
Dimensions: 7 × 1.75 × 1.75 inches
-
Weight: 0.25 lbs.
-
Color: White
The Camden CM-RQE70A combines adjustable PIR detection, flexible relay control, convenient onboard programming, and multiple system inputs in a compact housing—making it a dependable request-to-exit solution for professional access-control installations.
