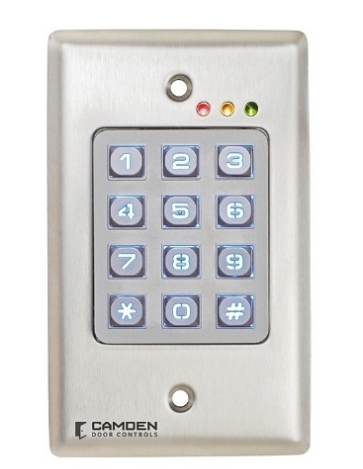

Camden CM-120wV2 Outdoor Vandal-Resistant Access-Control Keypad

Rugged Tri-Brid™ Access Control for Indoor and Outdoor Installations

The Camden CM-120wV2 is a weather- and vandal-resistant access-control keypad designed for demanding indoor and outdoor applications. Its backlit metal keypad and stainless-steel faceplate provide dependable performance at exterior doors, gates, equipment areas, and other high-traffic access points.

Supporting standalone relay control, 26-bit Wiegand output, and optional wireless operation, the CM-120wV2 gives installers the flexibility to use one keypad across a wide range of access-control configurations.

Key Features

  • Supports Up to 999 User Codes — Provides programmable PIN access for commercial and institutional facilities.

  • Variable or Fixed-Length Codes — Supports codes up to eight digits with as many as 10 million possible combinations.

  • Tri-Brid™ Operation — Configurable for standalone, Wiegand, or optional wireless use.

  • Weather-Resistant Design — Built for indoor and outdoor access-control installations.

  • Vandal-Resistant Metal Keypad — Designed to withstand demanding, high-traffic environments.

  • Backlit Keys — Improves keypad visibility and operation in low-light conditions.

  • Stainless-Steel Faceplate — Provides a durable, professional appearance.

  • Two Form “C” Relays — Offers independent control of two locks, operators, doors, or other electrical devices.

  • 3-Amp Relay Rating — Supports a wide variety of access-control and door-activation hardware.

  • 26-Bit Wiegand Output — Connects to compatible access-control panels when configured as a reader.

  • Optional Wireless Operation — Accepts a Camden CM-TX99 two-channel plug-in transmitter.

  • 12/24V AC or DC Operation — Provides compatibility with common access-control power supplies.

  • Single-Gang Flush Mounting — Installs cleanly in a standard electrical box.

  • Three Status LEDs — Offers clear visual indication of keypad and system activity.

  • Piezo Buzzer — Supplies audible confirmation during operation and programming.

  • Request-to-Exit Input — Supports an exit button, motion detector, or other REX device.

  • Door-Contact Input — Enables anti-tailgating functionality and door-open alarm monitoring.

  • Global Lockout Feature — Allows keypad access to be temporarily disabled when required.

  • Adjustable Relay Timing — Selectable from 1 to 255 seconds or configurable for latched operation.

  • Fast Response — Provides a response time of approximately 0.3 seconds.

  • Tamper-Resistant Hardware Included — Supplied with tamperproof screws and the required driver.

Flexible Access-Control Configurations

The CM-120wV2 can operate independently using its two onboard relays, connect to an access-control panel through its Wiegand output, or communicate wirelessly when fitted with the optional Camden CM-TX99 transmitter. This flexibility makes it an effective choice for new installations, system expansions, and retrofit projects.

Ideal Applications

  • Exterior access-controlled doors

  • Pedestrian and vehicle gates

  • Commercial and industrial facilities

  • Warehouses and storage areas

  • Offices and retail properties

  • Schools and institutional buildings

  • Automatic-door operators

  • Equipment and utility rooms

  • High-traffic entrances

  • Standalone, networked, or wireless access-control systems

Technical Specifications

  • User Capacity: 999 programmable user codes

  • Code Length: Fixed or variable, up to 8 digits

  • Possible Code Combinations: Up to 10 million

  • Operating Modes: Standalone, Wiegand, or optional wireless

  • Wiegand Output: 26-bit

  • Operating Voltage: 12/24V AC or DC

  • Current Draw: 30 mA standby; 90 mA maximum

  • Relay Outputs: 2 × Form “C”

  • Relay Rating: 3A at 24V DC

  • Inputs: 1 × Request-to-Exit and 1 × door contact

  • Indicators: 3 LEDs and piezo buzzer

  • Response Time: 0.3 seconds

  • Time Delay: 1–255 seconds or latched

  • Mounting: Standard single-gang flush mount

  • Faceplate: Stainless steel

  • Keypad: Backlit, weather- and vandal-resistant metal construction

  • Operating Temperature: -40°F to 122°F (-40°C to 50°C)

  • Dimensions: 4.5 × 2.75 × 0.75 inches

  • Country of Origin: Canada

Configuration Notice: The onboard relay outputs are disabled when the keypad is configured for Wiegand operation. Optional wireless functionality requires the Camden CM-TX99 transmitter and a compatible Camden receiver, sold separately.

The Camden CM-120wV2 combines rugged outdoor construction, flexible Tri-Brid operation, dual-relay control, and high user capacity—making it a dependable keypad for professional access-control installations.
