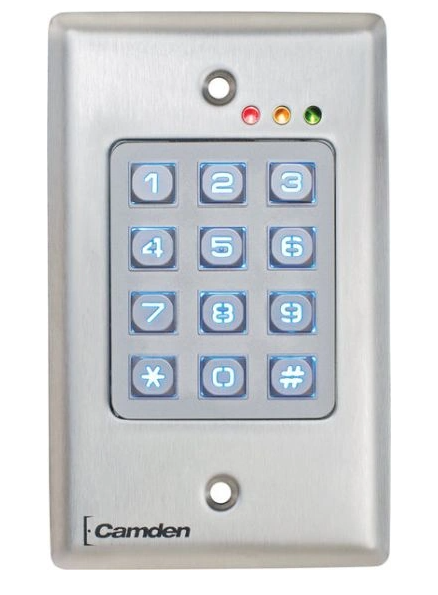

Camden CM-120TX Battery-Powered Wireless Outdoor Keypad

Secure Wireless Access Control Without Running Power or Control Wiring

The Camden CM-120TX is a battery-powered wireless keypad designed for outdoor access-control applications where running wires would be difficult, disruptive, or expensive. It combines a weather- and vandal-resistant metal keypad with built-in 915 MHz spread-spectrum wireless communication for dependable operation.

Supporting up to 999 users, fixed or variable-length PIN codes, and two-channel wireless control, the CM-120TX provides a convenient solution for doors, gates, automatic-door operators, and other remotely controlled access points.

Key Features

  • Fully Wireless Operation — Communicates with a compatible Camden Lazerpoint RF™ receiver without requiring control wiring between the keypad and receiver.

  • Battery Powered — Operates using two commonly available AA batteries.

  • Built-In 915 MHz Transmitter — Uses spread-spectrum wireless technology for reliable communication.

  • Two-Channel Wireless Control — Allows user codes to activate receiver relay 1, relay 2, or both.

  • Supports Up to 999 Users — Accommodates a wide range of commercial and institutional applications.

  • Fixed or Variable-Length PIN Codes — Supports codes up to eight digits with millions of possible combinations.

  • Outdoor-Rated Construction — Designed for exterior door and gate installations.

  • Vandal-Resistant Metal Keypad — Withstands demanding, high-traffic environments.

  • Backlit Keys — Improves keypad visibility and usability in low-light conditions.

  • Multi-Year Battery Life — Supports up to approximately 90,000 operations under specified operating conditions.

  • Battery-Test Gauge — Allows installers and users to check the remaining battery level.

  • Low-Battery Alarm — Provides notification when battery replacement is required.

  • Signal-Strength Meter — Helps installers verify wireless communication during setup.

  • Automatic Enrollment — Simplifies pairing with a compatible Camden receiver.

  • Request-to-Exit Input — Supports connection to an additional REX device.

  • Door-Contact Input — Enables door-position monitoring and anti-tailgating functionality.

  • Global Lockout Feature — Allows keypad access to be temporarily disabled.

  • Visual and Audible Feedback — Uses indicator LEDs and a buzzer to confirm keypad activity.

  • Tamper-Resistant Hardware — Helps protect against unauthorized removal or interference.

Simplified Access-Control Installation

Because the CM-120TX operates on batteries and communicates wirelessly, installers can add keypad-controlled access without running power and control cables to the keypad location. This makes it particularly useful for gates, finished buildings, historic properties, concrete walls, and other installations where new wiring is impractical.

Ideal Applications

  • Exterior access-controlled doors

  • Pedestrian and vehicle gates

  • Automatic-door operators

  • Commercial and industrial facilities

  • Warehouses and storage areas

  • Multi-tenant properties

  • Finished or historic buildings

  • Remote entry points

  • Retrofit access-control projects

  • Locations where wiring is difficult or costly

Technical Specifications

  • User Capacity: Up to 999 user codes

  • Code Length: Fixed or variable, up to 8 digits

  • Wireless Technology: 915 MHz spread-spectrum RF

  • Wireless Channels: 2

  • Power Source: 2 × AA batteries

  • Battery Life: Up to approximately 90,000 operations with the buzzer disabled, based on four-digit user codes

  • Keypad: Backlit, vandal-resistant metal construction

  • Installation Environment: Indoor or outdoor

  • Inputs: Request-to-Exit and door contact

  • Indicators: Status LEDs, buzzer, battery gauge, low-battery alarm, and signal-strength meter

  • Mounting: Single-gang flush mount

  • Dimensions: 4.5 × 2.75 × 0.75 inches

  • Compatible Receivers: Camden CM-RX90, CM-RX91, and CM-RX92 series receivers

Compatibility Notice: The CM-120TX requires a compatible Camden Lazerpoint RF wireless receiver to control locking hardware or another connected device. The receiver is sold separately. Lithium AA batteries are recommended for installations operating below 32°F (0°C).

The Camden CM-120TX combines secure PIN-code access, rugged outdoor construction, long battery life, and dependable two-channel wireless communication—making it an excellent solution for access points where conventional wiring is not practical.
