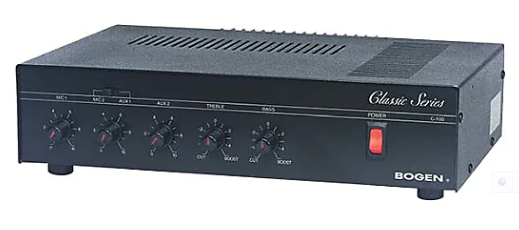

Bogen Classic Series 100 Watt Public Address Amplifier

Brand CUSTOM PRODUCTS

This product is unavailable

PN/ BGN-C100*

Bogen Classic Series 100 Watt Public Address Amplifier

The Bogen Classic Series Models are public address mixer amplifiers that provide mixing of microphones, telephone, and auxiliary sources.

Output screw terminals are provided for 4-ohm (direct) and 8-ohm, 16-ohm, 25V and 70V (transformer-coupled) speaker systems. Output jacks let you connect to a tape recorder or an additional booster amplifier, or feed a 600-ohm telephone line when an accessory transformer (Model WMT1A) is used.

Features:
4 inputs: 1 MIC (Lo-Z), 1 AUX (Hi-Z), 1 TEL, plus 1 selectable MIC or AUX
Each input controlled by an independent volume control
Treble and bass controls
AUX muting by external contact closure for push-to-talk mic’s
Tel input for telephone paging applications
TEL input voice-activated (VOX) mute over AUX input
Variable threshold for TEL input voice-activated AUX mute
Audio output for tape recorder or booster amplifier
Outputs for 4-ohm (direct), 8-ohm, and 16-ohm, 25V and 70V speaker systems (transformer coupled)
Output jack to connect a tape recorder or booster amplifier
Output jack to connect a general-purpose 600-ohm matching transformer (model WMT1A)
Thermal protection and electronic shutdown
Rack mountable with accessory mounting kit
UL and CSA listed
DESCRIPTION:
  • Channel Description

    • 2 mono
    • 2 mono
  • Connections

    • Rear
    • Screw-type
    • 2
    • Microphone
    • RCA
    • Audio line-in
    • 1
    • Speakers output
    • Audio line-out
    • Mute control
    • Telephone
  • Dimensions & Weight

    • 11 in
    • 3.7 in
    • 18.96 lbs
    • 14.5 in
  • Header

    • Bogen
    • Bogen
    • C100
    • Bogen Classic Series
  • Miscellaneous

    • Black
  • Mixer

    • Knobs
    • 25V/70V or 4/16 Ohm operation, Bass & treble control
    • 20 kHz
    • 20 Hz
    • Powered
    • Rack-mountable
    • Mixer amplifier
  • Mixer Amplifier

    • 100 W
  • Power

    • 60 Hz
    • 220 W
    • AC 120 V
