ALTRONIX ALTV2432350 AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC

By ALTRONIX CORPORATION
Minus Plus
Login to see prices
More details Right

PN / AX-ALTV2432-350 *

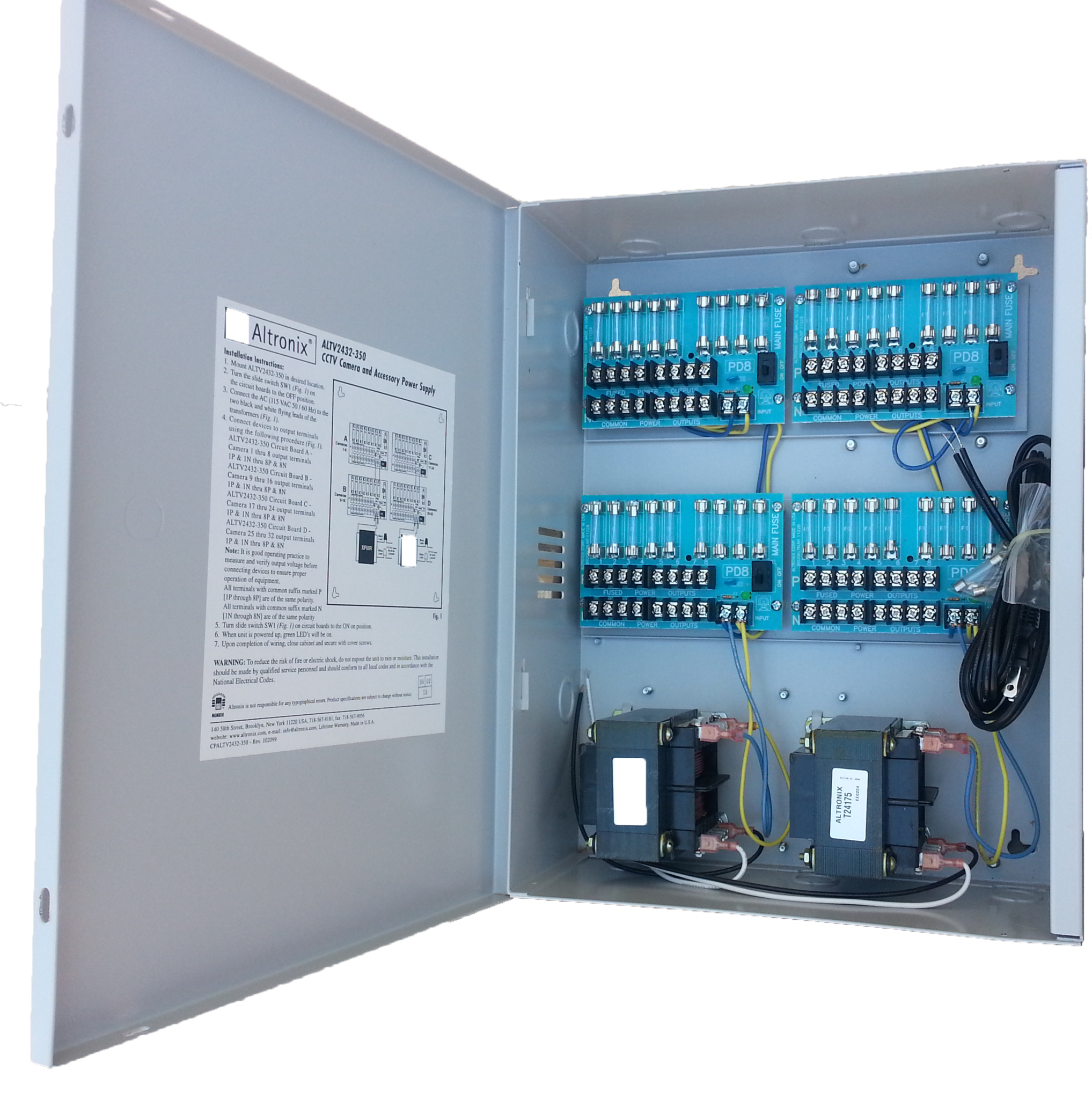

ALTV2432350 AC Wall Mount CCTV Power Supply provides 24VAC or 28VAC distributed via Thirty-Two (32) fuse protected outputs for powering CCTV Cameras, heaters and other video accessories.

  • Input:

  • 115VAC, 50/60Hz, 2.7 amp.

  • Output:

  • Thirty-Two (32) fuse protected outputs.
  • 24VAC @ 14 amp (350VA) supply current (0.438 amp per device, 3.5 amp max.). or 28VAC @ 12.5 amp (350VA) supply current (0.391 amp per device, 3.5 amp max.).
  • Outputs are rated @ 3.5 amp.
  • Surge suppression.

  • Electrical:

  • Operating temperature: 0° C to 49° C ambient.
  • BTU/Hr.:
  • - 24VAC: 171.97BTU/Hr.
  • - 28VAC: 179.14BTU/Hr.
  • System AC input VA requirement: 310.5VA.

  • Features:

  • Secondary fuse rated @ 10 amp/250V.
  • AC power LED.
  • Power ON/OFF switch.
  • Spare fuses provided. (all models w/primary and/or secondary fuses).
  • Lifetime Warranty

  • Enclosure:

  • Wall mount enclosure for indoor use.
  • Dimensions 13.5"H x 13"W x 3.25"D (343mm H x 330mm W x 83mm D)
  • 1/2" and 3/4" combination knockouts.

  • Weights (approximate):

  • Product Weight: 15.9 Lbs (7.212 kg)
  • Shipping Weight: 16.9 Lbs (7.665 kg)

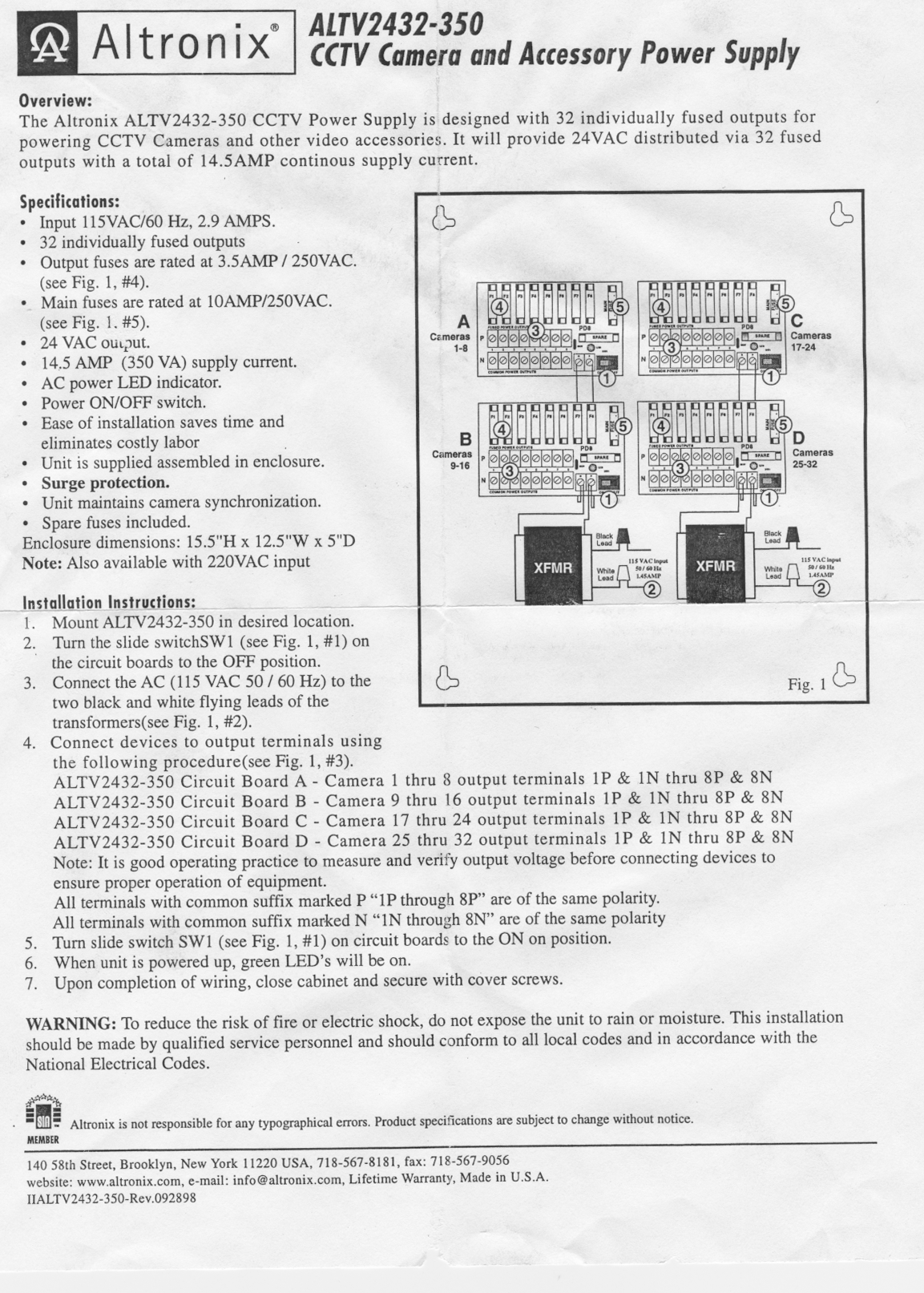

VIEW INSTALLATION GUIDE
