ALARM.COM ADC-CSVR2008P-1X6TB: Pro Series 8-Channel PoE Commercial Business Stream Video Recorder (1x6=6TB Total Hard Drive)

Call 1-800-888-8101 for pricing
Vendor Alarm.com

Call: 800-888-8101

Fill Out Customer Application

PN / ADC-CSVR2008P-1X6TB * ∣ Download data sheet

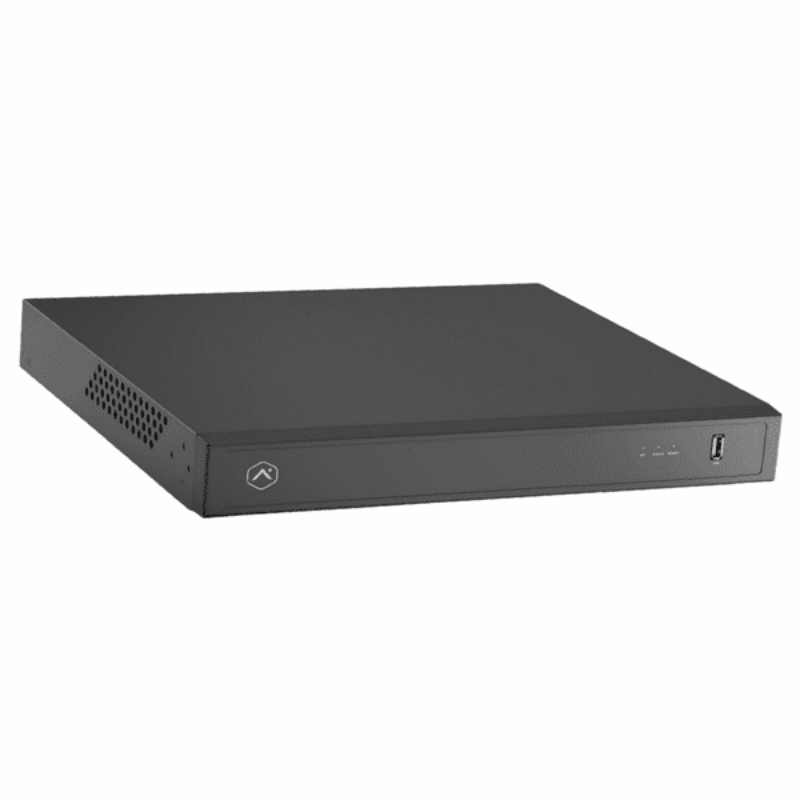

Pro Series 8-Channel PoE Commercial Business Stream Video Recorder (1x6=6TB Total Hard Drive)

The CSVR2008P Pro Series Commercial SVR is a cloud-managed storage solution for 24/7 local video recording. Continuously record up to 16 camera streams at up to 4MP resolution when using Alarm.com Pro Series cameras.

Designed for Commercial Properties

The CSVR2008P offers a built-in PoE switch to power and connect Alarm.com PoE cameras.Alarm.com commercial video is a powerful, easy-to-use solution for commercial properties that integrates with the Alarm.com for business platform. As part of the platform, recorded video is automatically tagged with important events, like a door being accessed or an alarm activation. This allows you to quickly jump to footage of the event using the Alarm.com mobile app or website—anytime, anywhere.

Each Alarm.com ADC-CSVR2008P can support up to two (2) 3.5" HDD, SATA 6Gb/s, @ up to 16TB each, for a possible 32TB of storage space. Currently, the CSVRs from Alarm.com cannot support an SSD (Solid State Drive) but can support a Solid State Hybrid Drive (SSHD).

The ADC-CSVR2008P has one (1) front-facing USB 3.0 port, which allows quick and easy local clip export. Two (2) additional USB 3.0 ports on the back of the unit that can be used for a keyboard and mouse when local viewing is required. The Ethernet connection for the CSVR2008P's connection to the network is an RJ45 10/100/1000 Mbps port. There are eight (8) Camera PoE 802.3af RJ45 10/100 Mbps ports that can provide a total of 120 W of power for up to eight (8) PoE cameras.

Specifications

  • Recording Channels: Up to 16 cameras
  • Video Input: 16 channels @ up to 4MP (2688 x 1520)
  • Local Display Capabilities: Live View, Playback, Clip Export, Archive Export
  • Local Display Output: 2x HD Out, up to 3840 x 2160
  • Local Clip Export: 1x USB 3.0 (front), 2x USB 3.0 (rear)
  • Internal Storage: Up to 2x 3.5" HDD, SATA 6 Gb/s, up to 16TB each
  • Dimensions (WxDxH): 14.4" x 12.5" x 1.9" (36.6cm x 31.6cm x 4.8cm)
  • Operating Temperature: 32℉ - 104℉ (0℃ - +40℃)
  • Compliance: FCC Class A, IC, CE, UL Listed
  • Included Accessories: AC power adapter, Ethernet cable, Rack mount ears, and Hardware
  • Requirements: Power: Standard Electrical Outlet ; Network: Ethernet connection to broadband internet
  • PoE Power Budget: 120 W
  • Max Power Consumption: 200 W
  • Ethernet Connectivity: 1x Client RJ45 10/100/1000 Mbps, 8x Camera PoE 802.3af
  • RF45 10/100 Mbps
  • Max Weight: 8.7 lbs (3.9 kg)
  • Available 802.3af PoE RJ45 Ports for Cameras: 8

Key Features

  • Simplified networking with dedicated camera PoE ports
  • Local storage on one or two hard drives
  • Rack-compatible (1U) industrial design
  • Outputs for up to 2 4K monitors
  • USB 3.0 outputs for fast video clip export
