Seco-Larm E-941SA-600 Mag Lock 600 lb 12 or 24 Volt - PAM Distributing Co

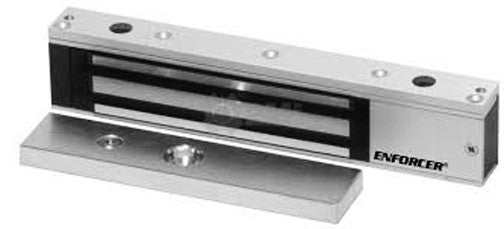

Seco-Larm E-941SA-600 Mag Lock 600 lb 12 or 24 Volt

Login to see prices
Vendor SECO-LARM USA, Inc.
In stock
View details
PN / SEC-E-941SA-600 *

Magnetic Lock 600 Lb. 12 or 24 VDC Current Drain 500MA 12 V 250ma 24V

Now with LIFETIME LIMITED WARRANTY!*


  • Anodized aluminum housing (US 28).
  • 12 or 24 VDC (selectable).
  • No residual magnetism.
  • Adjustable mounting bracket.
  • MOV surge protection.
  • Complete mounting hardware for typical installations.
  • "L" bracket and "Z" brackets available for easy mounting.
  • Detachable face plate.
  • UL and ULC listed.
  • CE listed.
  • RoHS compliant.
Access - Maglocks
Holding Force 600-lb (272kg)
Operating Voltage 12 or 24 VDC±10%
Current Draw 500mA@12VDC, 250mA@24VDC
Operating Temperature 14º ~ 131º F (-10º ~ 55º C)
Magnet Dimensions 9-7/8"x1"x1-5/8" (250x25x42 mm)
Armature Dimensions 7-1/4"x1/2"x1-1/2" (185x12x38 mm)
Certification UL, ULC, CE
RoHS Compliance Yes
Unit Weight (Approx.) 4-lb 6-oz (2kg)
Case Shipping Weight 47-lb (22kg)
Case Quantity 10 pcs
