VIDEO MOUNT PRODUCTS ERWEN-12E750 19" 12U Hinged Wall Equipment Rack Enclosure

Call 1-800-888-8101 for pricing


VIDEO MOUNT PRODUCTS ERWEN-12E750 19" - 12U - 750mm Deep, Hinged Wall Equipment Rack Enclosure

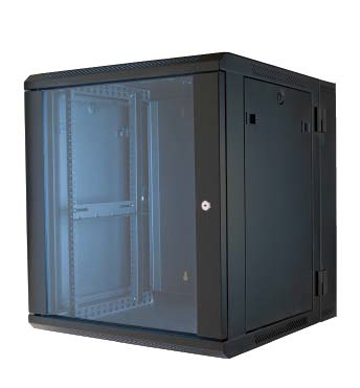

This 12 RU (Rack Unit) wall mounted equipment rack enclosure is the Video Mount Products (VMP) ERWEN-12E. The overall dimensions for the ERWEN-12E are 25.3” H x 24.3” W x 21.9” D with a maximum usable depth of 16”.

The ERWEN-12E works with all EIA compliant 19” rack equipment and accessories which are less than 16” in depth. The ERWEN-12E comes equipped with two sets of adjustable rack rails which are #10-32UNF threaded and have rack spaces numbered. The ERWEN-12E comes with a lockable, reversible tempered glass front door. The ERWEN-12E has a removable wall plate with mounting holes for wooden studs with 16” centers.

The ERWEN-12E has a lockable, hinged wall plate allowing the main enclosure to rotate 90 degrees while mounted on the wall and fully loaded. The ERWEN-12E has a vented top and bottom with cable entry and exit points located on the top and bottom of the wall plate and on the top of the main enclosure. The ERWEN-12E has two mounting points for standard fans which can be purchased separately.

The ERWEN-12E has removable side panels which can accept locks (sold separately). The ERWEN-12E has a load capacity of 120 lbs. It is fully welded, ship assembled, and has a powder coat black finish.

  • • Welded steel construction
    • Ships fully assembled
    • Overall Dimensions -25.3"H x 24.3"W x 29.625"0
    • Usable Depth -24"
    • Works with all standard 19" rack equipment and accessories
    • Rails have numbered spaces with standard l0-32 threading
    • Adjustable front and rear rails
    • Vented tap and bottom
    • Top and bottom cable routing knockouts
    • Reversible hinged tempered glass front door
    • Removable hinged back panel
    • Removable lacking side panels
    • Stabilizing hasp
    • Load capacity -120 lbs / Black powder coat finish

UPC:  6-7385313112-4  (ERWEN-12E)
Product Dimensions (WxDxH):  24.3" x 21.9" x 25.3"
Product Weight (lbs):  61.6 lbs
Shipping Dimensions (WxDxH):  24.4" x 22.6" x 26.1"
Shipping Weight (lbs):  69 lbs

Spec Sheet

Optional fans available
VMP-EREN3FANKIT Rack Mounted 3 Fan Kit - 3U
VMP-ERWEN2FANKIT 2 Fan Kit for Wall Enclosures
