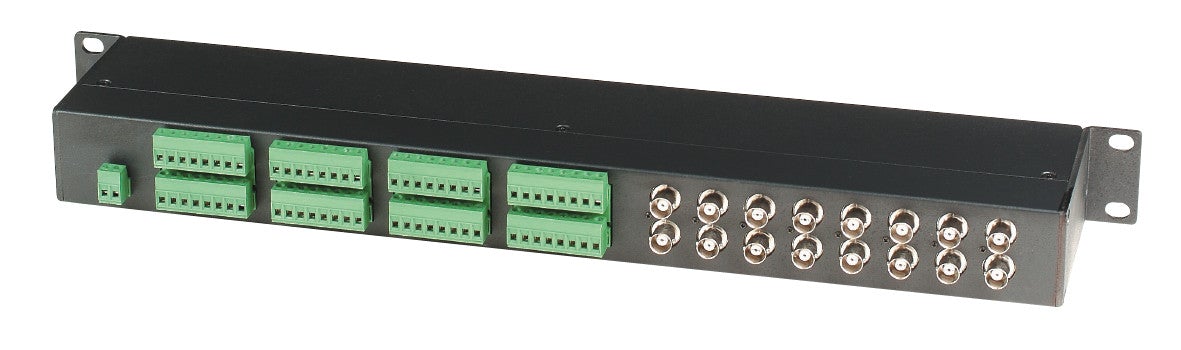

SEESTATION TPP016D 16CH PASSIVE VIDEO-DATA HUB
PN / SEE-TPP016D *
16 Port Passive Video & DATA Transceiver hub
- Video Input Port: 16 Port (Terminal Block)
- Data Input Port: 1 Port (Terminal Block)
- Video Output Port (BNC Connector): 16 Port, 1Vp-p, 75 ohms
- Data Output Port: 16 Port (Terminal Block)
- Recommend Cable: CAT 5 Cable 4 Pairs (24 AWG)
- Operating Temperature:-20 ～70°
- Dimension W x H x D mm: 482x105X44 (1U)
- Weight : 1400g
- Material: Metal Black
- Built in 16 port passive transceivers in 1U 19” rack mounting panel.
- As a rack mounting passive transmitter hub, use with active receiver at distance up to 1000 meters.
- Passive, no power required.
- Built in a highly balanced mode of video transmission for extra interference immunity.
