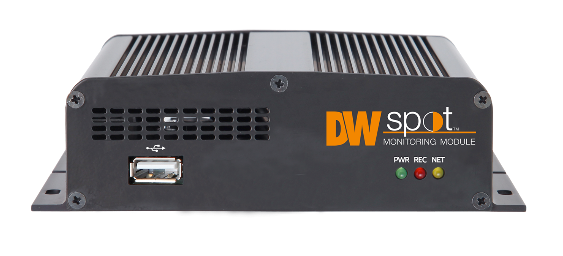

PN/ DW-HDSPOTMOD16*
16-channel spot monitoring module
FEATURES:
- Automatic network search and device registration
- Identifies an unlimited number of ONVIF conformant IP cameras, Universal HD over Coax VMAX A1 DVRs (via RTSP) or VMAX IP Plus NVRs
- Live monitoring of up to 16 cameras view and 16-camera sequencing
- Up to 480fps display
- Drag and drop camera selection from DVRs and NVRs
- Remote configuration via the Internet
- Supports up to 5 Megapixel (2592x1944) resolution cameras, max. 80 Mbps throughput
- HD and VGA video outputs
- USB mouse included
- Velcro for easy mounting to the back of a monitor
SPECIFICATIONS:
|
Operating system
|
Embedded Linux
|
|
|
IP camera
|
Input
|
16 channels
|
|
Protocol
|
ONVIF
|
|
|
Display
|
Speed
|
Up to 480fps
|
|
Max. throughput
|
80 Mbps
|
|
|
Screen mode
|
Single channel, 16-Ch view mode, sequence
|
|
|
Video – in
|
IP cameras (up to 5MP, 2592 x 1944 resolution), Universal HD over Coax VMAX® A1 DVRs or VMAX IP Plus NVRs
|
|
|

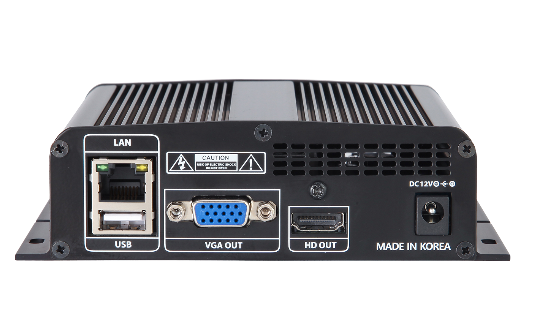

Video – out
|
Monitor
|
True HD or VGA
|
|
Resolution
|
800 x 600, 1024 x 768, 1280 x 1024, 1920 x 1080
|
|
|
LAN
|
1x 10/100/1000Mbps gigabit ethernet (RJ45)
|
|
|
Protocols
|
Fixed IP, DHCP & DDNS
|
|
|
Network function
|
Live monitoring
|
|
|
Time synchronization by NTP server
|
||
|
Remote management
|
Web (IE)
|
System settings
|
|
System recovery after power failure
|
Auto-reboot and log file system
|
|
|
Advanced functions
|
Firmware upgrade by USB and CMS
|
|
|
Import & export settings
|
||
|
Warning alarm for system over-heating
|
||
|
Digital zoom
|
||
|
System operation
|
USB mouse
|
|
ENVIROMENTAL |
||
|
Power
|
DC12V
|
|
|
Operating temperature
|
41°F ~ 104°F (5°C ~ 40°C)
|
|
|
Operating humidity
|
20–90% RH (non–condensing)
|
|
|
Dimensions
|
5.47" x 4.84" x 1.25" Inch (139 x 123 x 32 mm)
|
|
