14/2 STRANDED DB 500FT

Brand SUPERIOR

This product is unavailable

PN/ 114025S-DB*

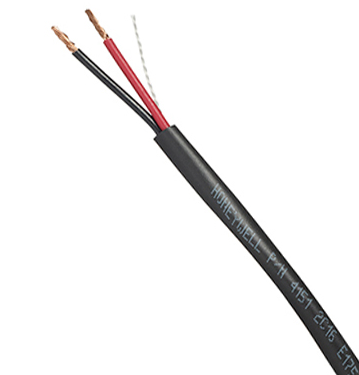

14/2 STRANDED DB 500FT

FEATURES:

  • Ratings FPL, CL2, Direct Burial, Sunlight Resistant
  • Approvals UL Listed
  • Conductor 14 AWG 19 Strand Bare Copper
  • Conductor Count 2
  • Insulation SRPVC (0.020" nom.)
  • Insulation Colors Black, Red
  • Lay Length 6" nom.
  • Shielding N/A
  • Rip Cord Yes
  • Jacket PVC (0.045 " nom.)
  • Overall Diameter 0.310" nom.
  • Operating Voltage 300 Volts max.
  • DC Resistance 2.62 Ohms/1000' at 20°C
  • Capacitance 17.1 pF/ft. nom.
  • Impedance 89 Ohms nom.
  • Temperature -20°C to 75°C
  • Flame Rating UL Vertical Tray
  • RoHS Compliant Yes
