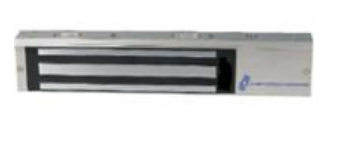

Alarm Controls 1200S Magnetic Lock, 1200lb, Single Door, Clear Anodized Aluminum
Vendor Alarm Controls
PN/ ALC-1200S*
1200LB MAGLOCK
UPC: 604840236423
Also known as: AC-1200S, HES-1200S
The Alarm Controls 1200S is a single magnetic lock with a holding force of 1200 lbs. The lock features a clear anodized aluminum finish and its metal non-aluminum parts are plated. The 1200S can be used with any access control system.
- 1200lb holding force
- Single door
- Clear anodized aluminum finish
- Instant release, no hysteresis
- Can be used with any access control system
- Self drilling TEC screws
- Built-in arc suppression
- E-Z mount system, no special tools required
- Non-aluminum parts are plated to resist corrosion
- Limited lifetime warranty
- 1200 lbs holding force
- Magnet size: 10-1/2" L x 2-7/8" H x 1-1/2" W
- Armature size: 7-3/8" L x 2-3/8" H x 9/16" W
- Operates on 12 or 24 VDC, switch selectable
- Low current draw: 400 mA at 12 VDC, 200 mA at 24 VDC
- Operating temperature: +14 to +131F [-10 to +55C]
- UL and Canadian UL listed, R16759
