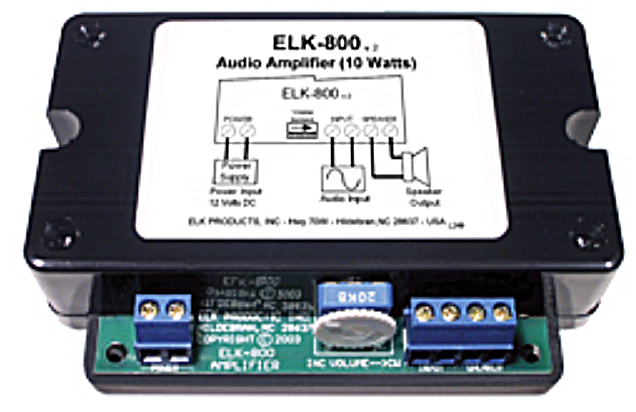

ELK-800 Audio / Paging Amplifier 10W

Call 1-800-888-8101 for pricing
In stock

PN / ELK-800 *

10 Watt Audio / Paging Amplifier


The ELK-800 is a great compact public address audio amplifier. It may be connected to a telephone system paging output, a microphone, or even an ordinary single line phone set (see Basic PA system below). The audio source is amplified up to 10 watts, adjustable from an on-board volume control. Remotely installed, it saves money by requiring only 22 - 24 gauge telco or alarm type wire. It operates on 12 to 24 volts AC or DC and can also drive multiple speakers.


• 10 Watt Amplifier
• Expanded Telephone System Paging
• Does Not Require 25 or 70V Line Transformers
• Multiple Speaker Hookups
• Requires only 22-24 gauge telco wire
• Built-in Volume Control
• Compact Size
• Surface Mount ABS Enclosure with Snap-On Cover
• Lifetime Limited Warranty


• Rated Output: 10 Watts**
• Operating Voltage: 12 to 24 Volts AC or DC**
• Speaker (Output) Load: 2 to 16 Ohms**
• Current Draw: 50 to 800 mA, Depending on Load and Volume Setting
• Input Impedance: 1000 Ohms Nominal
• Enclosure Size: 4.5" x 3" x 1.2" (111.8mm x 76.3mm x 29.2mm)
**NOTE: The ELK-800 is primarily designed for short duration (intermittent) paging applications. For long durations,such as playing music, you may need to reduce the
volume output, or lower the power input voltage, or lower the speaker loading in order to keep the ELK-800 from overloading and shutting down.
