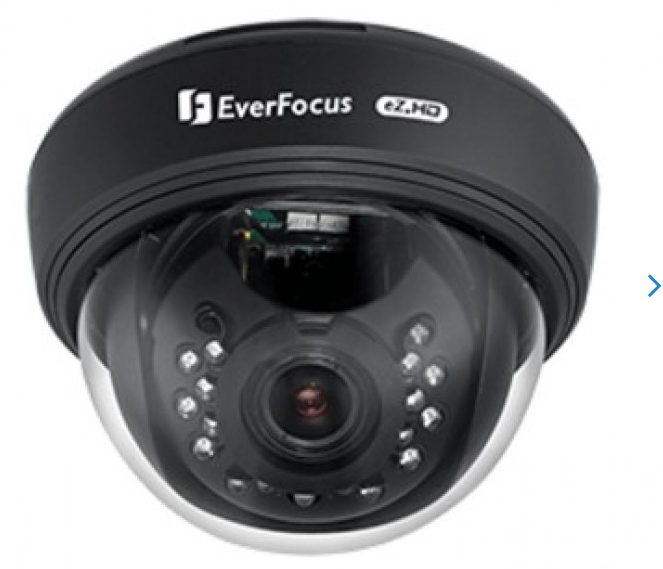

1080p Indoor IR Dome Camera

Brand EVERFOCUS ELECTRONICS CORP.

This product is unavailable

PN/ EVF-ED930FB*

1080p Indoor IR Dome Camera

Features

  • 1080p Full HD with high flexibility and performance for astounding image
  • 1/2.9" Sony 2.24MP CMOS Sensor, delivering amazing high sensitivity
  • Varifocal 2.8-12mm DC iris lens to capture the desired field of view
  • Extended IR range of up to 30m / 100ft. with 18 LEDs (depending on scene IR reflectivity)
  • D-WDR to improve the visibility under high contrast scene
  • 3D-Noise Reduction ensures less blurry moving subjects, vivid and high SN ratio images even under low light environments
  • Supports 1080p, 720p & 960H analog signal output, which can be easily switched using OSD Joystick
  • The flexible angle viewing with its 3-Axis rotation design allows wall or ceiling mounting
  • Easy lock installation by screwing the base plate to the surface and then locking the camera to the base plate without mounting screws
  • eZ Controller function: Control camera OSD settings and PTZ operation directly from DVR end
Auto Gain Control, Automatic White Balance, Back Light Compensation, Day/Night, Digital Noise Reduction, Motion Detection Tracking, On Screen Display Menu, Privacy Masking, Wide Dynamic Range
Technology Analog HD - AHD
Resolution HD-1080p
Image Sensor 1/2.9-inch CMOS
Signal Format NTSC/PAL
Housing Color Black
Voltage 12 VDC, 24 VAC
Video Connection BNC
Special Features Digital Noise Reduction, Image Flip, On-screen Menu, Privacy Masking, Video Motion Detection
Camera Type Dome
Max Focal Length 12.0
Environment Indoor
Lens Varifocal
Min Focal Length 2.8
Imaging System Day/Night (IR)
Signal System NTSC / PAL
Operating Temperature -10°C ~ 50°C / 14°F ~ 122°F
Scanning System Progressive Scan
Dimensions (W x H) 133 x 96.6mm / 5.24" x 3.8"
Privacy Zone Off / On for 4 selectable zones
Power Consumption 12VDC: 3.7W max. /24VAC~: 3.5W max
OSD Menu English / Simplified Chinese / Traditional Chinese / German / French / Italian / Spanish / Polish / Russian / Portuguese / Netherlands / Turkish
Camera Signal HD-AHD
Motion Detection Off / On for 4 selectable zones
IR LEDs 18 Units
Auto Gain Control 0 ~ 15 Levels
Automatic White Balance ATW / AWC-SET / Indoor / Outdoor / Manual / AWB
Backlight Compensation Off / BLC / HS BLC Selectable
Mirror Off / Mirror / V-Flip / Rotate
Digital Noise Reduction 2DNR / 3DNR, Off
Synchronization Internal
Minimum Scene Illumination 0 Lux with IR On
Operating Humidity Less than 80%
Mount Type Ceiling, Wall
Sensor Option 1/2.9" CMOS
Lens Type Varifocal
Lens Size 2.8-12mm
Infrared Distance 61~100 Feet
Durability Indoor
Resolution 1080p
Voltage 12vDC, 24VAC
Image Pixels-Effective 1920 (H) x 1080 (V)
IR Distance Up to 30m / 100ft
Image Device 1/2.9" Sony 2.24MP CMOS
Electronic Shutter Auto / Manual (x30 ~ 1/50,000) / FLK
Gamma Correction 0.45
Digital Noise Reduction Yes
Mirror Yes
On Screen Display Menu Yes
Privacy Masking Yes
Wide Dynamic Range Yes
Auto Gain Control Yes
Motion Detection Tracking Yes
Day/Night Yes
Back Light Compensation Yes
Automatic White Balance Yes





DATASHEET
