PN / OPT-AX-200TFRi *
**Contains Lithium Batteries - Cannot Air Ship**
Description:

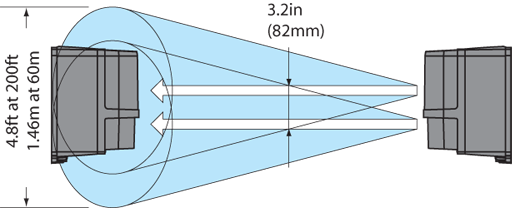

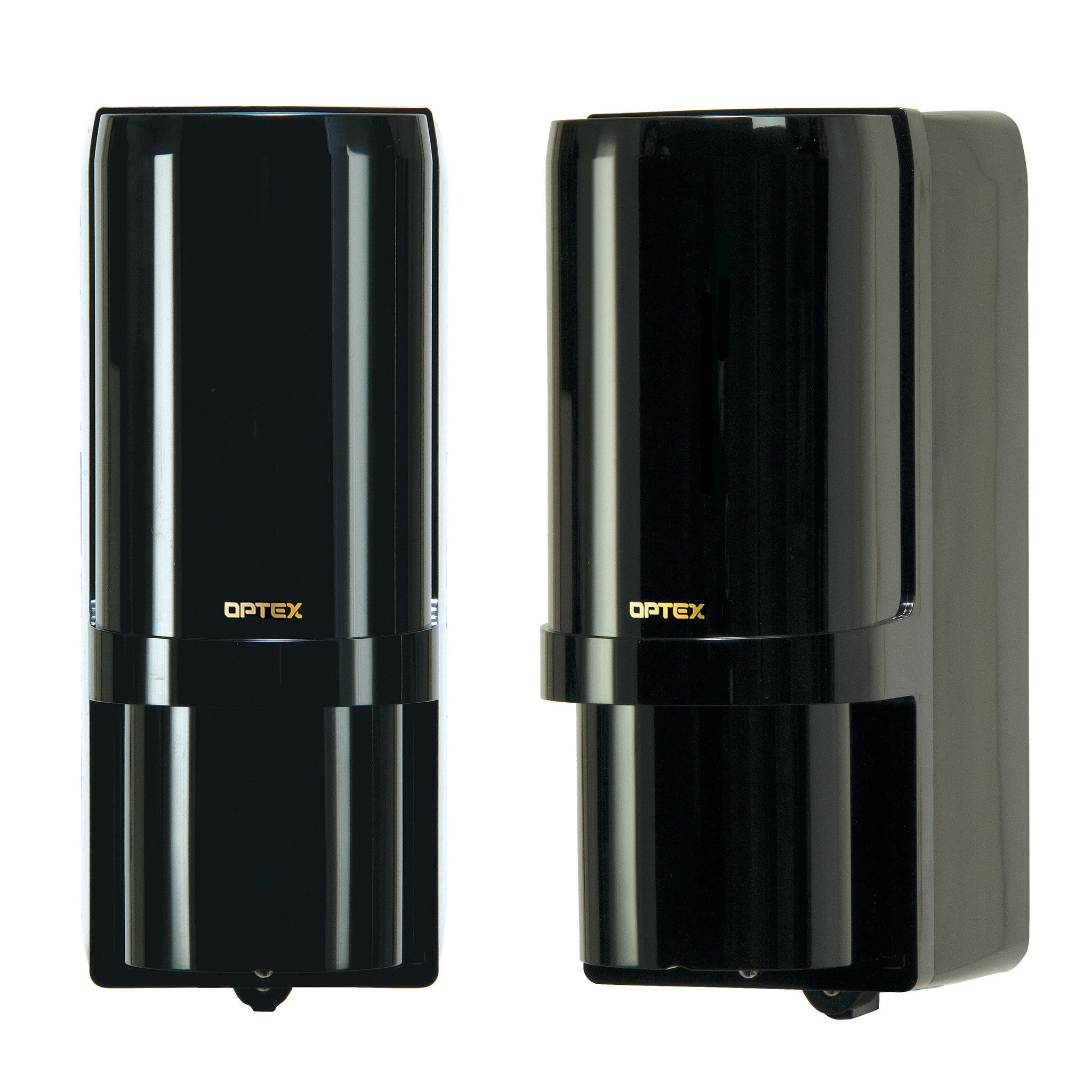

The iSeries AX-200TFRi is a 200ft. battery-powered photobeam detector that includes Inovonics EN1941 transmitters built in, making it a ready-to-install wireless solution for perimeter protection. Because no trenching or wiring is involved in the installation process, a substantial reduction in labor costs and install time can be expected. The AX-200TFRi also includes four lithium D-cell batteries with a lifespan of three to five years. In addition, the AX-200TFRi is compatible with the AX-TW200 line of beam towers for a clean, concealed, wireless mounting option.
Features:

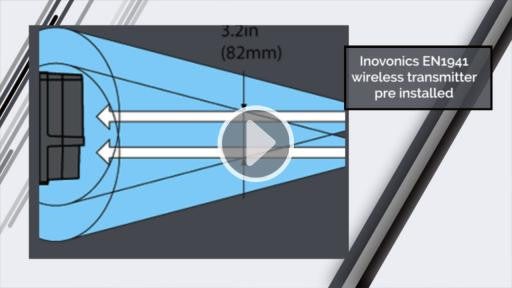

- Inovonics EN1941 wireless transmitter pre installed.
- Long life battery operation (batteries included).
- Easy battery replacement.
- Triple tamper functions.
- Low battery output and LED indication.
- Intermittent output function.
- Battery saving time function for wireless transmitters.
- Selectable 4-channel beam frequencies.
- 99% beam blocking stability.
- A.G.C circuit.
- IP55 structure.
- Adjustable beam interruption time.
Technology:
Active Infrared
Wiring:
Battery Powered
Installation:
Commercial
Government
Industrial
Residential
Indoor/Outdoor:
Indoor
Outdoor
Product Type:
Detector
Zone:
Approach
Perimeter
Interior
Power Input:
3.6 V 13.0 Ah: LSH20 lithium batteries manufactured by SAFT (included) Transmitter: 2 units Receiver: 2 units
Alarm Output:
Form C-Solid State Switch: 3.6 VDC, 0.01 A
Current Consumption:
Total: 810 µA (T: 490 µA + R: 320 µA at 77°F, 3.6 VDC)
Operation Temperature:
-4°F – +140°F (-20°C – +60°C)
Coverage:
