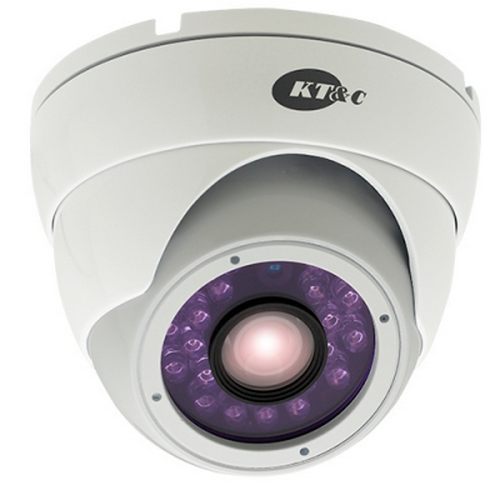

KT&C KTC-KEZ-C2TR4IRW: (TVI) 2.1MP 1080P IR Outdoor Fixed Turret Camera

Login to see prices
Vendor KT&C USA
In stock
View details

PN / KTC-KEZ-C2TR4IRW *

1080p HD-TVI Outdoor White Turret Camera with IR

1080p HD Over Regular Coax or UTP
• Outdoor 3-Axis Turret
• True Day/Night & WDR
• 66’ Smart IR Range
• IP66 Weather Resistant
• OSD/UTC: On Screen Display
Up The Cable control
• CVBS BNC Output
• 12VDC

1080p HD-TVI Outdoor Turret with IR

  • Superlative HD resolution of 1080p30 for amazing image quality and useful digital zoom
  • Field select 1080p/720p 30/25
  • HD-TVI HD BNC output, plus full time CVBS analog BNC output for alternative connection/monitoring and ease of service
  • Operation over ‘almost any’ wire
    - Over 1000 feet on standard RG59 coax; longer distances on RG6
    - Up to 500’ on one pair from a Cat5e cable (using optional KA-HDBAL1 balun pair).
  • 1/2.8” progressive scan CMOS sensor
  • 3.6mm megapixel lens to capture the desired field of view
  • Wide Dynamic Range to handle challenging bright or unbalanced lighting conditions
  • Digital slow shutter (Sens-Up) low light enhancement (Use of more than 2~4X enhancement should be limited to select applications.)
  • True Day/Night zero light operating range of 66 feet or more (depending on scene reflectivity) from 20 IR LEDs
  • Smart IR automatic exposure level adjust to achieve the desired IR brightness despite reflections and bright spots
  • Easy mounting with 3-Axis positioning for convenient wall or ceiling mounting
  • Simple and easy to use OSD setup menu
    - Up-the-cable control from OMNI EZHD recorders (or other compatible Coaxitron® control equipment)
    - Wide Dynamic Range for bright or unbalanced scene lighting conditions
    - Programmable Back Light Compensation (BLC) and Highlight Suppression Back Light Compensation (HSBLC)
    - Adjustable 3D Noise Reduction to increase low light picture clarity and conserve DVR HDD disk space
    - Privacy masking for 8 configurable zones
    - Lens shading compensation for even exposure out to the lens periphery
    - Defog improves image contrast in the presence of haze or smoke that obscures image details
  • IP66 weather resistant, vandal resistant metal housing
  • Choice of black or white housing color to blend or contrast with the décor
  • Operating temperature range of 14°F~122°F
  • 12VDC operation with low current draw
Imaging Device 1/2.8" Progressive Scan CMOS
Video Format Main Output: 1080p/720p HD-TVI 30/25FPS (OSD selectable) Secondary Output: Full time CVBS (OSD selectable NTSC/PAL) aux video
Picture Elements 1984 (H) x 1105 (V)
Effective Picture Elements 1920 (H) x 1080 (V)
Horizontal Resolution More than 1080 HTVL (1080p mode)
Sensitivity 0 lux IR on
Day/Night Type True Day/Night with ICR motorized filter control
Lens Type Megapixel Fixed Focal Length f=3.6mm board type
IR LED 20 LED, 850nm
IR Range 66’ / 20m †
Smart IR Exposure Adjust Adjustable Off/low/mid/high
Video Output Connector Type TVI and CVBS: BNC 75Ω
Sync. Mode Internal
OSD Menu Multiple functions using UTC Control
OSD Languages English, Spanish, Portuguese, German, Russian, Japanese, French
UTC Control Full OSD Menu access via up-the-cable (Coaxitron® type ) signaling
DWDR/BLC/HSBLC OFF/WDR/BLC/HSBLC Selectable Adjustable for Level 1~10; also BLC area, HLC color.
Auto Gain Control OFF; 2~42dB
Electronic Shutter Auto; FLK; or Manual 1/30 (25) to 1/30,000
White Balance Auto / Push Lock / Manual
Color Correction Gamma 0.45~.65, adjustable
Day & Night Auto True D/N with motorized ICR, controlled by photo sensor. Optional color-only and B/W only modes under OSD control
Digital Slow Sutter [DSS] DSS low light boost Off/Auto 2X~16X*
3D-DNR Off/Low/Mid/High
Digital Zoom 1X~8X
Defog Off/Low/Mid/High
Mirror Off / H-flip, V-flip, rotate
Motion Detection Off/On for programmable zone with sensitivity adjust (pixel change detection)
Privacy Mask Off/On with full programmability for 8 selectable zones
Lens Shading Compensation) Off/Low/Mid/High
DPC (Defective Pixel Correction) Off/On
Other OSD Functions Camera Title with position, Font Color; Image Sharpness
Power Source 12VDC
Power Consumption 12VDC:390mA
Operating Temperature 14 °F ~ 122 °F (-10 °C ~ 50 °C)
Environmental IP66 weather resistant
Mechanical Metal ball and base, with base removable for easy mounting
Positioning 3-axis flexible positioning for wall or ceiling mounting Pan: 0~360° Tilt: 0~70° Rotate: 0~360°
Dimensions Ø5.14” × 3.67” [Ø93 × 63mm]
Weight .73 lbs./332g
Certifications CE / FCC / RoHS
