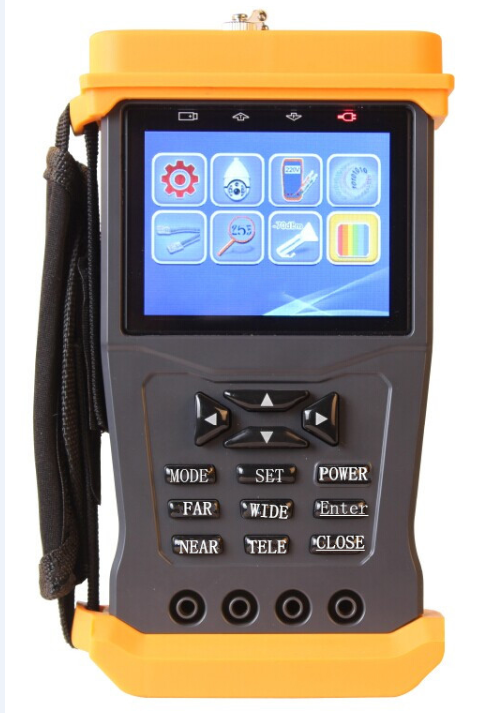

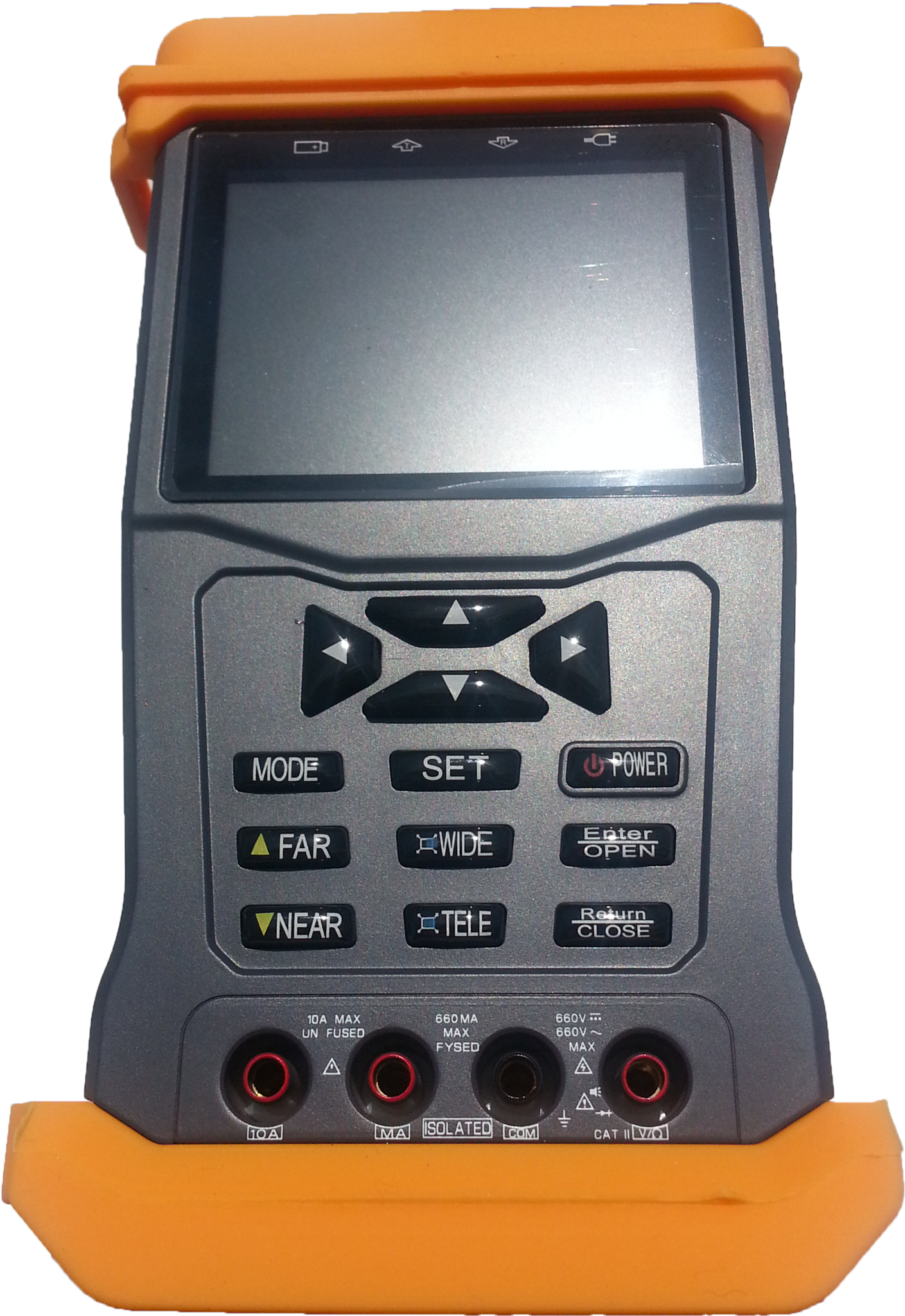

SeeStation Multiple Function AHD/CVBS/NTSC/PAL Tester & Multi Meter Combo

   Product Features

• Automatic identification AHD and CVBS, adaptive NTSC and PAL , support 1ch video output.
• Compatible AHD (720p, 960h, 960p coming soon), also support AHD coaxial signals (PELCO_D), need movement supports.
• Compatible of AHD movement video signal output switch, AHD or CVBS mode, need movement supports.
• Chinese and English menu switch, support multiple languages (customized), friendly interface, easy operation and reliable.
• 5 -inch LCD screen, resolution 960 * 240.
• Multi-protocol color barcode generator, display PAL/NTSC standard color pattern of the video test signal via video OUT port.

• Compatible Pelco D / Pelco P, special protocols could be customized.
• Built-in High quality, large capacity li-battery, support 8 hours.
• Adopt RS485 communication, baud rate: 1200, 2400, 4800, 9600, 19200 are optional, suitable for installation test and also worked as a keyboard for remote using.
• Compatible AHD (coaxial and 485) and CVBS (485) ptz control: to control the ptz up, down, left, right, zoom, focus and aperture functions, set positions and call presets.
• RS485 data analysis function, engineers best partner. test and analysis the RS485 signals of control equipment, in hexadecimal displayed on the screen, convenient for technician check whether protocol match.
• Visualization wiring intelligent testing functions, simple and easy for using, the tester is easy to realize.
• Visualization display wiring and wiring sequence, test standard rate is much higher than other testers in market.
• PTZ address searching function, convenient for the user to check the PTZ ID.
• Output DC12V /1A, provide emergency power for the camera.
• Audio input test, test audio signal of pick-up, etc.
• Intelligent power saving function, 0 to 10 minutes can be set, no standby time when set to 0.
• Display Battery remaining power on screen, check remained power at any time.
• Original high precision, functional digital multi-meter in both English and Chinese, test current, voltage, resistance, on-off testing, diode, capacitor.
