PN / ASK-SCS-2A *

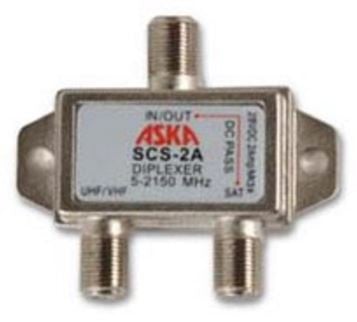

SCS-2A - 2 Amp High performance Diplexer
DISH NETWORK APPROVED
Low insertion loss, on both U/V and Sat port. Higher Return Loss, High Isolation (stop band rejection).
2 AMP 28VDC current capability on Sat port-power passing. Solder back cover for excellent RFI shielding, Complies with CEA-897 color coding.
Features:
-
Low Insertion Loss, on both ANT and SAT ports
-
Higher Return Loss – 12dB Min. on both ANT & SAT ports
-
Solder back cover for excellent RFI shielding
-
Complies with CEA-897 Port color coding
Specifications:
-
Band width: ( ANT) 5 - 806MHz (SAT) 950 - 2200MHz
-
Insertion Loss: ( ANT) - 2dB Max (SAT) - 1.5dB Max
-
Stop band Attenuation: 35dB Min
-
DC current capability: (SAT port only) – 2 Amp 28VDC
-
Return Loss: 12 dB Min. on both Sat and Ant ports
