PN / JON-MCT-468 * | Download data sheet

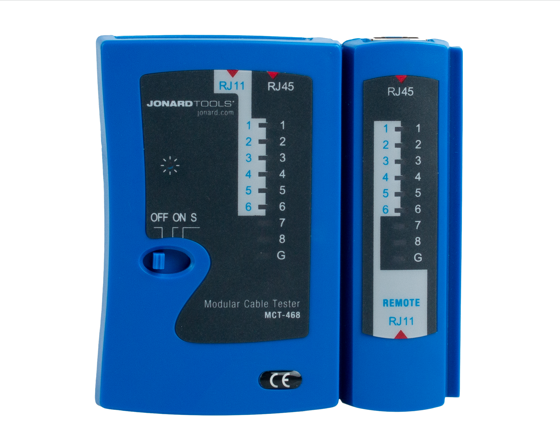

Jonard Tools MCT-468 Modular Cable Tester
Quickly Test and Troubleshoot Network and Telephone Cables
The Jonard Tools MCT-468 Modular Cable Tester provides a simple and dependable way to check the continuity and pin connections of RJ45, RJ12, and RJ11 terminated cables. Designed for network, telecommunications, security, and low-voltage professionals, it quickly identifies open circuits, shorts, and miswired connections.
LED indicators on both the main and remote units display each pin connection in sequence, making wiring faults easier to locate. Testing begins automatically when the unit is switched on, while the slow-test setting allows installers to observe each connection more closely.
Key Features
-
Tests RJ45, RJ12, and RJ11 terminated cables
-
Detects open circuits, shorts, and miswired pin connections
-
Full LED indicators on both the main and remote units
-
Automatically begins testing when powered on
-
Slow-test setting provides more time to view each result
-
Detachable remote unit supports cables installed between separate locations
-
Compact and lightweight for convenient field use
-
Includes a protective nylon carrying case
-
Includes one 9V battery
-
Independently tested to meet ETL Listed standards
Fast and Easy Cable Verification
Simply connect one end of the cable to the main tester and the other end to the remote unit. The MCT-468 automatically cycles through the cable’s individual connections, allowing installers to verify proper termination and identify common wiring problems before equipment is connected.
The tester’s numbered LED sequence provides clear visual feedback for each conductor, helping reduce troubleshooting time and prevent callbacks caused by improperly terminated cables.
Ideal Applications
-
Ethernet cable testing
-
Telephone and voice-line testing
-
Structured-cabling installations
-
Security and surveillance networks
-
Access-control systems
-
Telecommunications projects
-
Residential and commercial networking
-
Pre-installation and post-installation cable verification
Supported Connector Types
-
RJ45: Network and Ethernet cables
-
RJ12: Six-position telephone and communication cables
-
RJ11: Telephone and voice cables
Technical Specifications
-
Model: MCT-468
-
Supported connectors: RJ45, RJ12, and RJ11
-
Detected faults: Opens, shorts, and miswiring
-
Indicator type: LED
-
Testing modes: Automatic and slow
-
Power source: One 9V battery
-
Weight: Approximately 0.51 lb
-
UPC: 811490016316
Package Includes
-
MCT-468 main cable tester
-
Remote testing unit
-
Nylon carrying case
-
One 9V battery
The Jonard Tools MCT-468 offers technicians a fast, portable, and straightforward solution for confirming proper cable termination and troubleshooting common network and telecommunications wiring problems.
