UNIVIEW IPS302030-S: Outdoor IP Speaker

Login to see prices
Vendor PAM Distributing Co
View details

Call: 800-888-8101

Fill Out Customer Application

PN / UNV-IPS302030-S * | Download data sheet

Download user manual

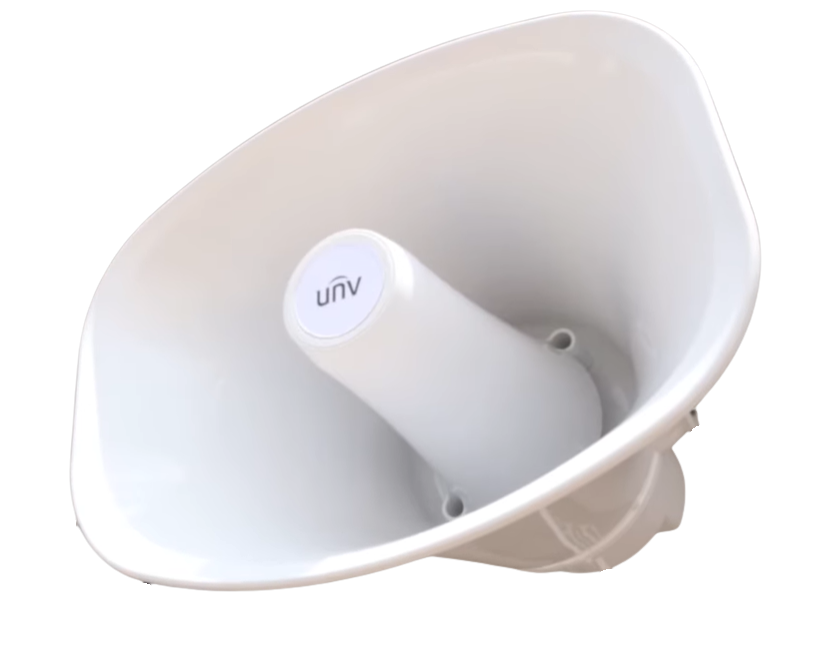

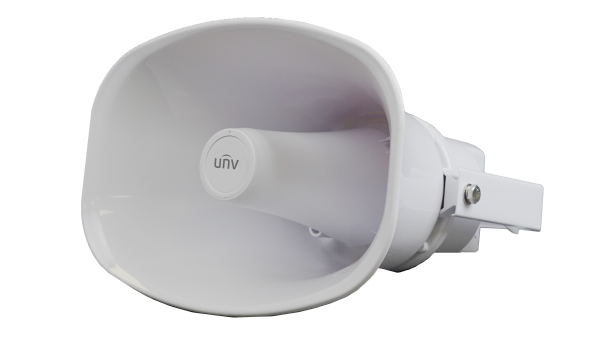

Outdoor IP Speaker
Product Overview

Key Specifications

Parameter Value
Rated Power (Speaker Output) 30 W Uniview+1
Maximum Acoustic Pressure 130 dB SPL Uniview+1
Speaker Frequency Response 300 Hz to 12.5 kHz ubox-eu.oss-eu-central-1.aliyuncs.com+1
Impedance 8 Ω dwg.us+1
Material (Housing / Enclosure) ABS Plastic ubox-eu.oss-eu-central-1.aliyuncs.com+1
Network Protocols IPv4, HTTP/HTTPS, SSL/TLS, DNS, TCP/UDP, DHCP, UPnP, ARP, SSH ubox-eu.oss-eu-central-1.aliyuncs.com+1
Interface Protocol (API) ONVIF, RTSP, RTP, LAPI ubox-eu.oss-eu-central-1.aliyuncs.com
Built-in Microphone Quantity: 1; Frequency Response 100 Hz–8 kHz; Sensitivity –37 dBV/Pa; Sampling Rate 8 kHz; Quantization 16 bit XLR Security+1
Audio Features • Regular broadcast, live broadcast, alarm broadcast
• Two-way audio support
• Compression: G.711 U
• Audio File Format: MP3, WAV
• Built-in Storage: 64 MB
• Max Audio File Size: up to 10 MB
• Max Audio File Number: ~100 (including built-in) ubox-eu.oss-eu-central-1.aliyuncs.com+1
Network Interface 1 × RJ45 10/100 Mbps self-adaptive Ethernet Interface ubox-eu.oss-eu-central-1.aliyuncs.com+1
Additional Inputs Audio In: RCA (for amplification only, no intercom) dwg.us
Alarm Inputs: 2 dwg.us
Power Supply Options • PoE (IEEE 802.3at)
• DC 24 V /1.4 A
• DC 12 V /2.5 A ubox-eu.oss-eu-central-1.aliyuncs.com+1
Operating Environment Temperature: -30 °C to +55 °C (-22 °F to 131 °F)
Humidity: ≤ 90% RH (non-condensing) ubox-eu.oss-eu-central-1.aliyuncs.com
Dimensions 282 mm × 205 mm × 285 mm (≈ 11.1″ × 8.1″ × 11.2″) ubox-eu.oss-eu-central-1.aliyuncs.com+1
Protection / Ingress Rating IP66 (dust-tight & powerful water-jet resistant) Uniview+1
Certifications & Compliance Safety: CE LVD (EN IEC 62368-1), UL 62368-1
EMC: CE-EMC (EN 55032, EN 55035, EN 61000-3-2/3)
Environment: RoHS, WEEE, REACH. ubox-eu.oss-eu-central-1.aliyuncs.com

Notable Features & Highlights

  • Supports custom audio uploads (MP3/WAV) allowing tailored messages or alarms. XLR Security+1

  • Integration capability with NVR systems (video + audio linkage) enabling automated broadcasts triggered by events (e.g., intrusion detection). Nelly's Security+1

  • Dual communication support: both broadcast (one-way) and two-way intercom via network.

  • Flexible power: PoE simplifies installation (single cable for data + power) or alternate DC supply.

  • Rugged build and IP66 rating makes it suited for outdoor, harsh or industrial environments.

  • Wide language support (38 languages) for audio messages/localization. XLR Security

Considerations for Installation & Use

  • Ensure your network infrastructure supports PoE-out at the required power (IEEE 802.3at) if using PoE.

  • Check mounting bracket & orientation to achieve best coverage given horn shape and sound projection.

  • Given outdoor use, ensure location is within operating temperature/humidity range and protected from extreme climates beyond spec.

  • When uploading custom audio messages, ensure file format, size, and number of files stay within the storage capacity (64 MB, max-10 MB/file, up to ~100 files).

  • For alarm linkage, check compatibility of your NVR/event system and ensure firmware is up-to-date for ONVIF/API features.

  • Calibration/tuning may be required if used for voice announcements in noisy outdoor environments (bearing in mind 130 dB max pressure).

  • While IP66 gives strong protection, still verify conduit, cable glands, and mounting hardware are suitable to avoid environmental ingress over time.
