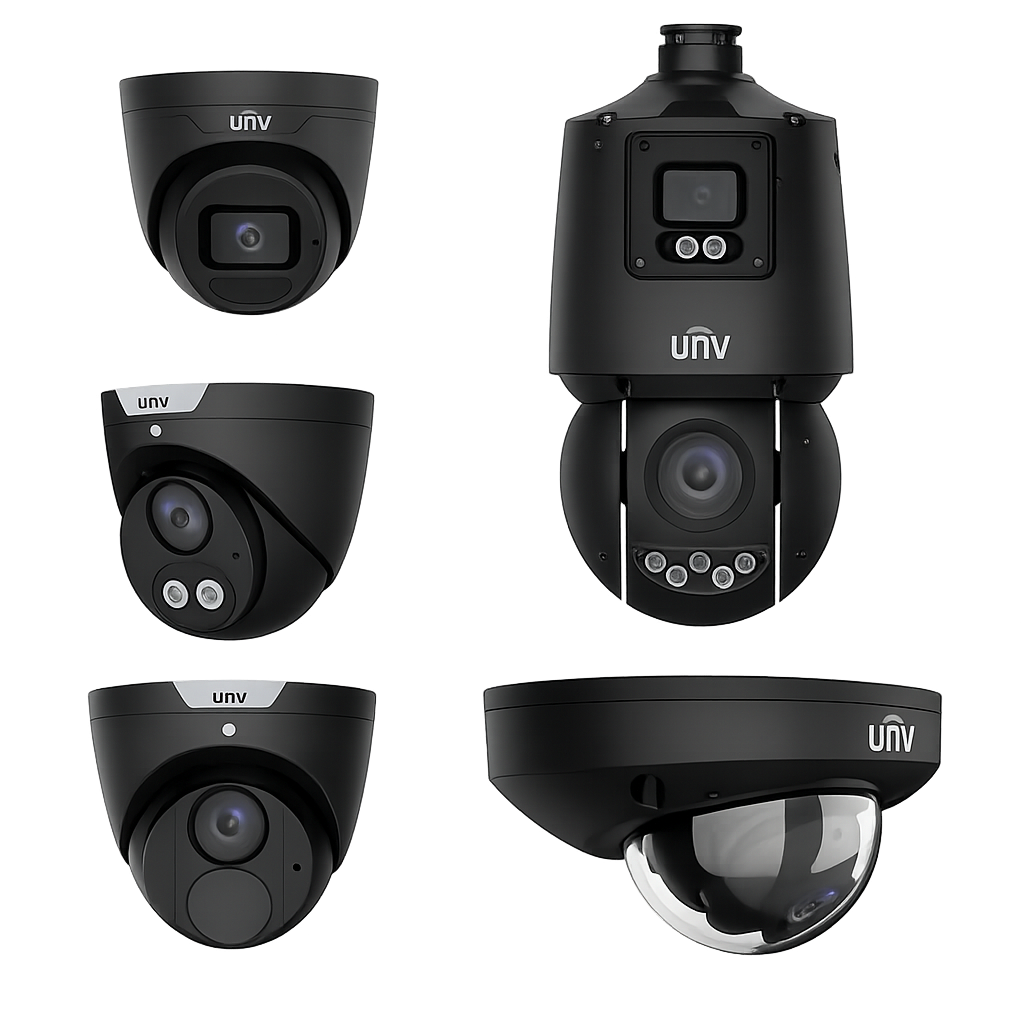

Uniview ptz cameras
• Fixed camera and PTZ camera integration, dual channels with one IP, look at overall situation and consider details at the same time
• High quality image with 4MP,1/2.7’’ CMOS sensor
• Ultra 265, H.265, H.264, MJPEG
• 25X optical zoom of PTZ channel allows for closer viewing of subjects
• PTZ channel can be linked to fixed channel’s smart intrusion prevention to track the objects triggering the rule
• Lighthunter technology ensures ultra-high image quality in low illumination environment
• DC12V or PoE+(IEEE 802.3at) power supply
• Alarm 2 in and 1 out, Audio 1 in and 1 out
PDK Products
- highsecurity- Standard technologies include Proximity (125 kHz) and high-security (13.56 MHz), so customers can set their migration path to secure credentials and security ecosystems.
- OSDPmulti-drop- OSDP Multi-Drop accommodates many readers by running one length of cable, eliminating the need to run wire for each reader.
- anytimeanywhere- Powered by pdk.io, the only true cloud access solution. Take advantage of real-time updates, cloud backup, 24-hour support, and more (Subscription required)
Popular Items

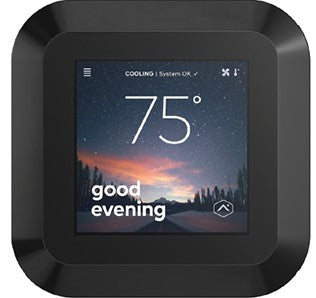

ALARM.COM
PAM DISTRIBUTING is a Stocking Distributor for Alarm.Com and other proprietary Smart Home & Business Security Devices.
Call 800-888-8101 for availability of all Alarm.Com products
UNIVIEW lIGHTHUNTER
PAM Distributing stocks the largest variety & quantity of UNIVIEW products in the US. We are also a warranty resolution center.
Call 800-888-8101 for availability of all UNIVIEW products
CAT6 Unshielded pass through
Simply45 Pass Through connectors feature our reengineered connectors designed for the technology used today. Simply45 only uses the highest quality materials to ensure reliable results that will greatly reduce truck roll backs.
Call 800-888-8101 for the availability of all Simply45 products
Call: 800-888-8101
Fill Out Customer Application

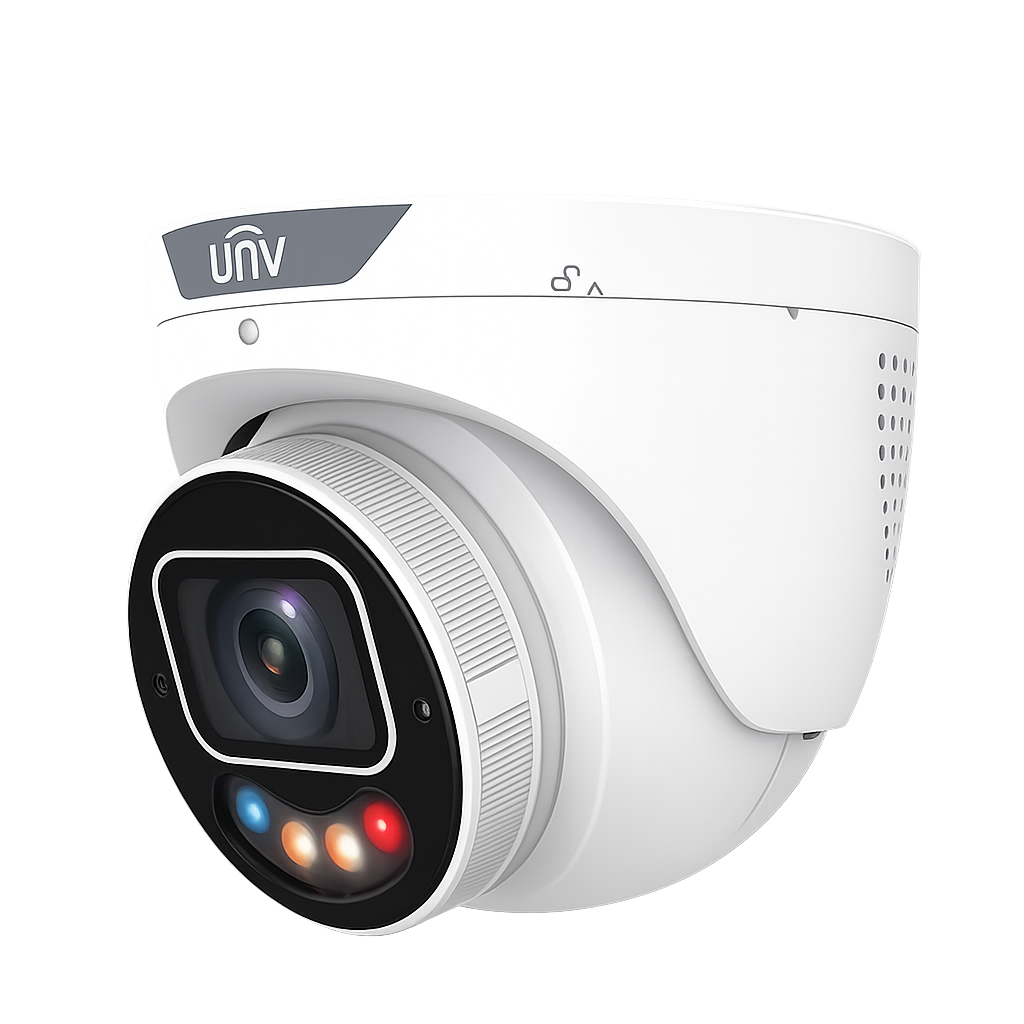

PN / UNV-UAC-T125-AF28M-W*
5MP ColorHunter HD Fixed Turret Analog Camera
• 5MP high quality imaging
• TVI/AHD/CVI/CVBS
• Supports white light illumination, 24/7 color images
• Supports 180° horizontal flip, 180° vertical flip
• OSD configuration menu, easy to operate
• IP67 waterproof and dustproof design, high reliability
• OSD configuration menu in 11 languages
• Built-in microphone for high quality audio transmission via coaxial cables
• Metal front face and housing
• 3-Axis
SPECIFICATIONS
Model | UAC-T125-AF28M-W | UAC-T125-AF40M-W |
Sensor | ||
Pixel | 5MP | |
Size | 1/2.7" | |
Minimum illumination | 0.005lux (F1.4, AGC ON) 0 lux (white light on) |
|
Lens | ||
Lens | 2.8mm | 4.0mm |
Lens mount | M12 | |
Angle of view | H: 111.5° V: 58.9° D: 134.8° | H: 89.6° V: 48.3° D: 106.4° |
Illuminator | ||
Illuminator | Two white-light illuminators | |
Illumination distance | 40m | |
Lifetime | ≥60,000 hours | |
Video | ||
Resolution | 5MP@25fps: 2880(H)×1620(V); 5MP@20fps: 2592(H)×1944(V); 5MP@12.5fps: 2592(H)×1944(V) 4MP: 2560(H)×1440(V) 1080P: 1920(H)×1080(V) |
|
Frame rate | TVI: 5MP@20fps (default), 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps AHD: 5MP@20fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVBS: PAL, NTSC |
|
Shutter time | PAL: 1/25s-1/50000s NTSC: 1/30s–1/50000s |
|
Image | ||
Exposure mode | Four modes: Global (default), BLC, HLC, DWDR | |
Day/Night | 24/7 color images | |
Digital noise reduction | 2D | |
White balance | Two modes: Auto (default), Manual | |
WDR | DWDR | |
Flip | Supports 180° horizontal flip, 180° vertical flip | |
Audio | ||
Microphone | Built-in Mic | |
Camera audio | TVI: 5MP@20fps, 5MP@12.5fps, 4MP@30fps, 4MP@25fps, 1080P@30fps, 1080P@25fps CVI: 5MP@25fps, 4MP@30fps, 4MP@25fps |
|
Interface | ||
Power | 5.5mm power interface | |
Video output | BNC, supports TVI/AHD/CVI/CVBS | |
Operating environment | ||
Temperature | -30°C to 60°C (-22°F to 140°F) | |
Humidity | ≤95% (RH, non-condensing) | |
Surge protection | 4kV | |
Ingress protection | IP67 | |
General | ||
Power | DC12V (±25%), with reverse polarity protection. Max 3.28W | |
Mount | Surface mount (default), optional junction box and wall mount bracket | |
Dimensions | Φ111mm*96mm (diameter*height) | |
Material | Metal and plastic | |
Weight | 356g (0.79lb) | |
Certification | CB, CE, FCC, UL |
