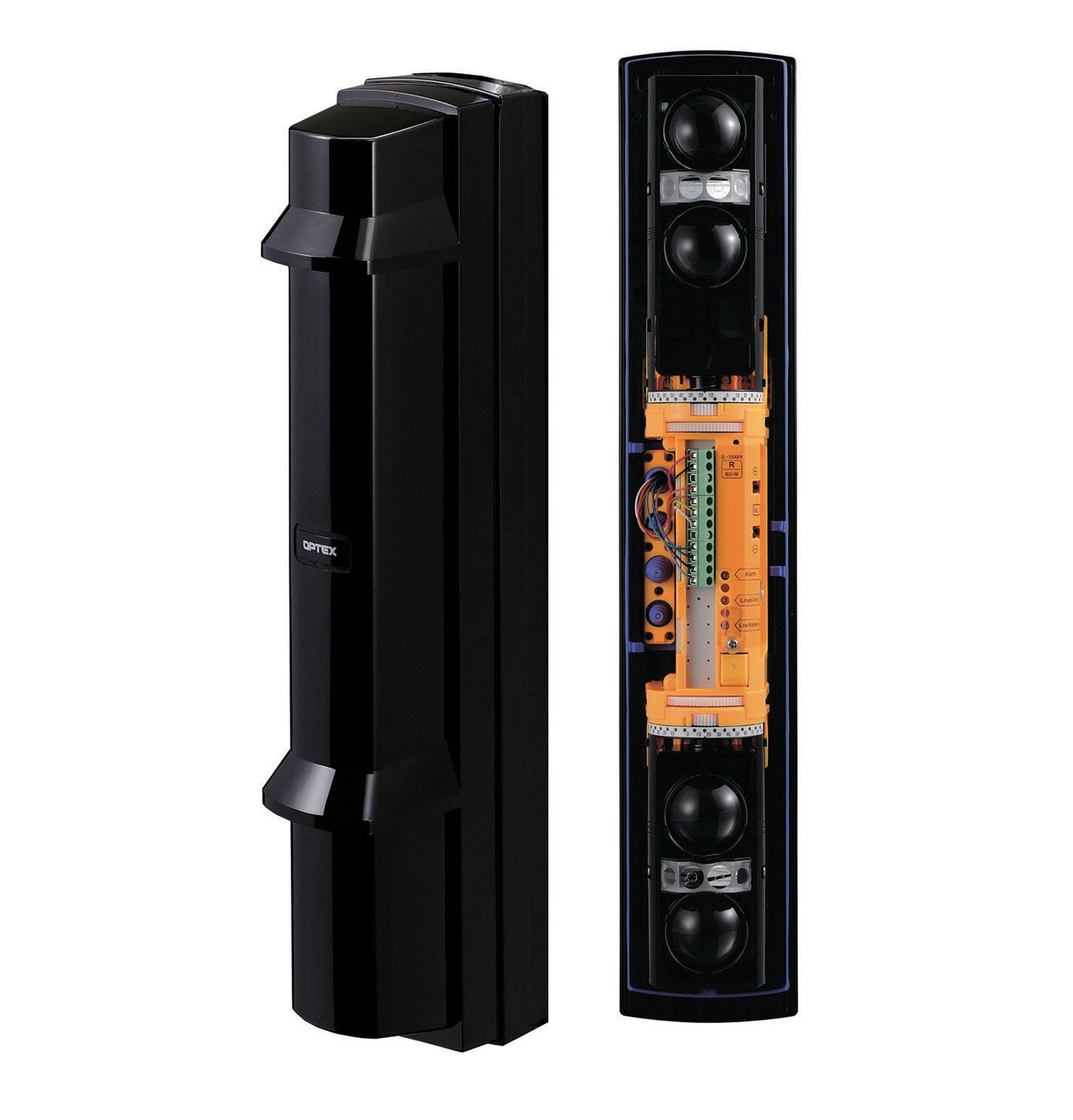

OPTEX SL-350QFRi Wireless 350' Quad Beam Detector

$ 1,193.75
Vendor OPTEX

PN / OPT-SL-350QFRi *

**Contains Lithium Batteries - Cannot Air Ship**

Description:

Optex expands on its industry leading outdoor battery-powered iSeries line by adding the quad beam SL-350QFRi, a 350 ft. battery-powered photoelectric detector requiring no trenching or wiring. Because of this, Integrators and Dealers can offer a significant cost saving alternative to traditional hardwired systems, while End Users will benifit from less downtime to business operations during install. The iSeries SL-350QFRi includes an Inovonics EN1941 wireless transmitter pre-installed, and comes with four batteries per set, with the option of expanding to eight for up to 10 years of battery life. In addition, the SL-350QFRi is compatible with the AX-TW200 line of beam towers for a clean, concealed, wireless mounting option. The SL-350QFRi is the perfect solution for perimeter protection where labor costs or trenching is an issue.

Features:
  • Inovonics EN1941 wireless transmitter and batteries pre-installed (2 batteries per transmitter and receiver)
  • Quad beam detection
  • 4ch selectable beam frequency
  • Long battery life
  • fit for most of the major wireless transmitters in the market
  • sniper viewfinder for easy alignment
  • water protection IP65
  • 8 to 10 years battery life operation for detector
Technology:
Active Infrared
Wiring:
Battery Powered
Installation:
Commercial
Government
Industrial
Residential
Indoor/Outdoor:
Indoor
Outdoor
Product Type:
Detector
Zone:
Building
Perimeter
Interior
Power Input:
3.6 V, 13.0Ah LSH20 lithium batteries manufactured by SAFT Operating range: 3.2 V - 4.0 V lithium batteries Transmitter: 2 or 4 units, Receiver: 2 or 4 units
Alarm Output:
Form C-Solid State Switch: 3.6 VDC, 0.01 A
Current Consumption:
745µA (Transmitter: 420 µA + Receiver: 325 µA (at 77°F, 3.6 VDC))
Operation Temperature:
-4°F – +140°F (-20°C – +60°C)

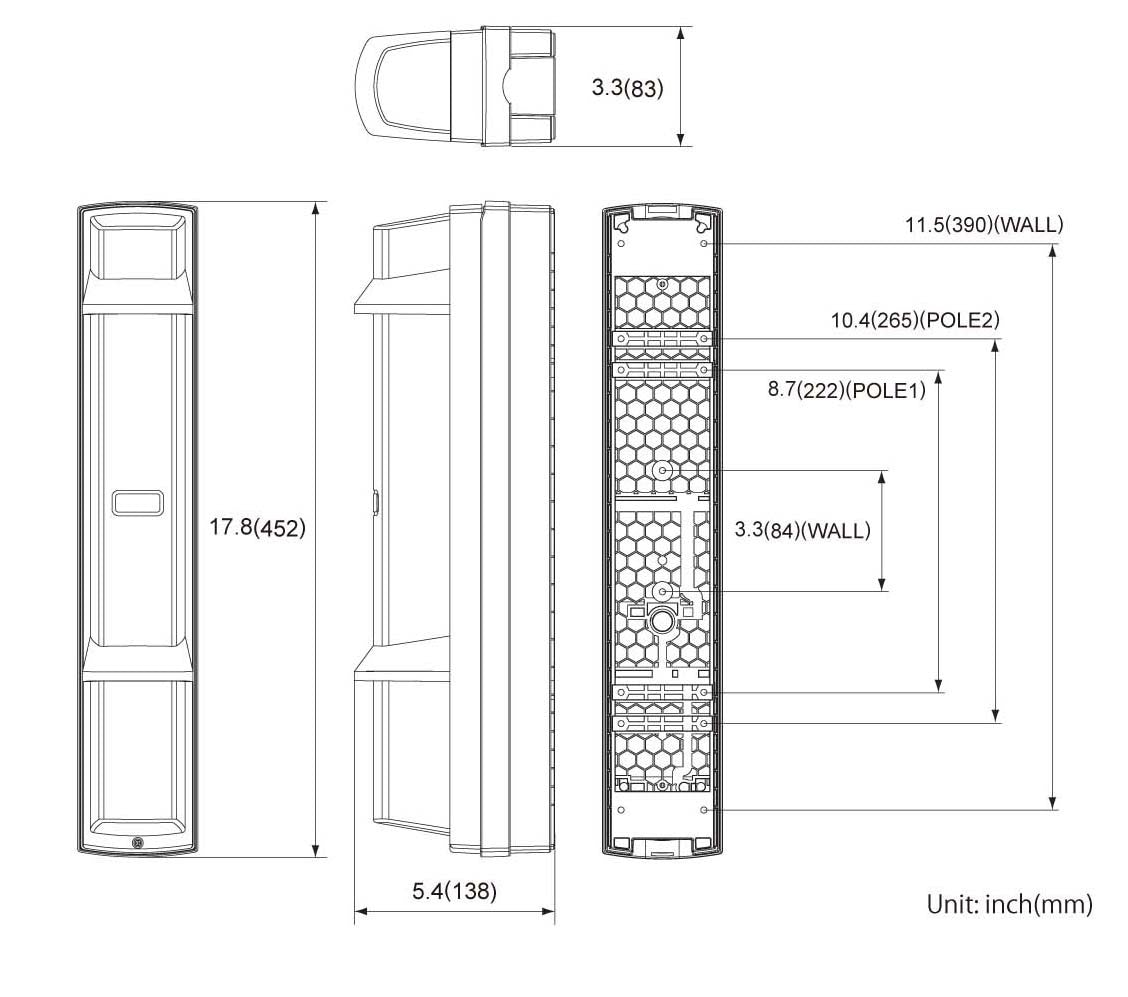

Dimensions:

17.9in. x 3.3in. x 5.4in.

Installation Manual

Literature

Wiring Diagram

Optex Beam and Tower Guide
