TA-25 Distribution Amplifier 18-25dB UHF/VHF/FM
$ 34.80
Couldn't load pickup availability
Vendor
PICO DIGITAL, INC.
PN / TA-25 *

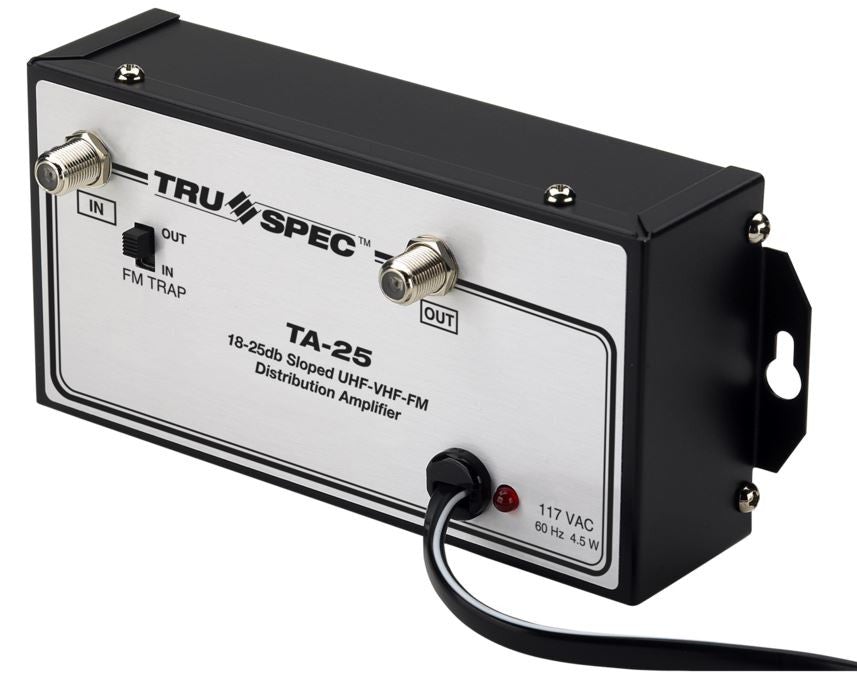

TA-25: 18-25DB SLOPED UHF/VHF/FM DIST AMPLIFIER
- Cost-effective wide-frequency bandwidth amplifier
- 68 Off-air channel range (54~108MHz) suitable for small to large MATV-SMATV systems
- 7db Sloped-output across band provides low harmonic distortion
- -20db FM trap switch (88~108MHz) filters high level local FM radio stations reducing harmonic distortion
- Heave gauge rugged shielded wall-mount case
- Convenient and compact design allows quik and easy installation
- Front Panel LED Power Indicator
| Bandwidth | 54~108MHz 174~216MHz 470~806MHz |
| Gain | 18~25dB |
| Maximum Output (15 channels) | |
|---|---|
| VHF | 25dBmV |
| UHF | 18dBmV |
| Flatness | 7dB |
| Noise Figure | 5dB (VHF) 7dB (UHF) |
| Power Input | 117VAC |
| Power Rrequency | 60Hz |
| Power Required | 4.4Watt |
| Weight | 1.2 lbs |
