PN/ ALC-1200S*

1200LB MAGLOCK

UPC: 604840236423
Also known as: AC-1200S, HES-1200S

The Alarm Controls 1200S is a single magnetic lock with a holding force of 1200 lbs. The lock features a clear anodized aluminum finish and its metal non-aluminum parts are plated. The 1200S can be used with any access control system.

Features:

1200lb holding force
Single door
Clear anodized aluminum finish
Instant release, no hysteresis
Can be used with any access control system
Self drilling TEC screws
Built-in arc suppression
E-Z mount system, no special tools required
Non-aluminum parts are plated to resist corrosion
Limited lifetime warranty

Technical Specifications:

1200 lbs holding force
Magnet size: 10-1/2" L x 2-7/8" H x 1-1/2" W
Armature size: 7-3/8" L x 2-3/8" H x 9/16" W
Operates on 12 or 24 VDC, switch selectable
Low current draw: 400 mA at 12 VDC, 200 mA at 24 VDC
Operating temperature: +14 to +131F [-10 to +55C]
UL and Canadian UL listed, R16759

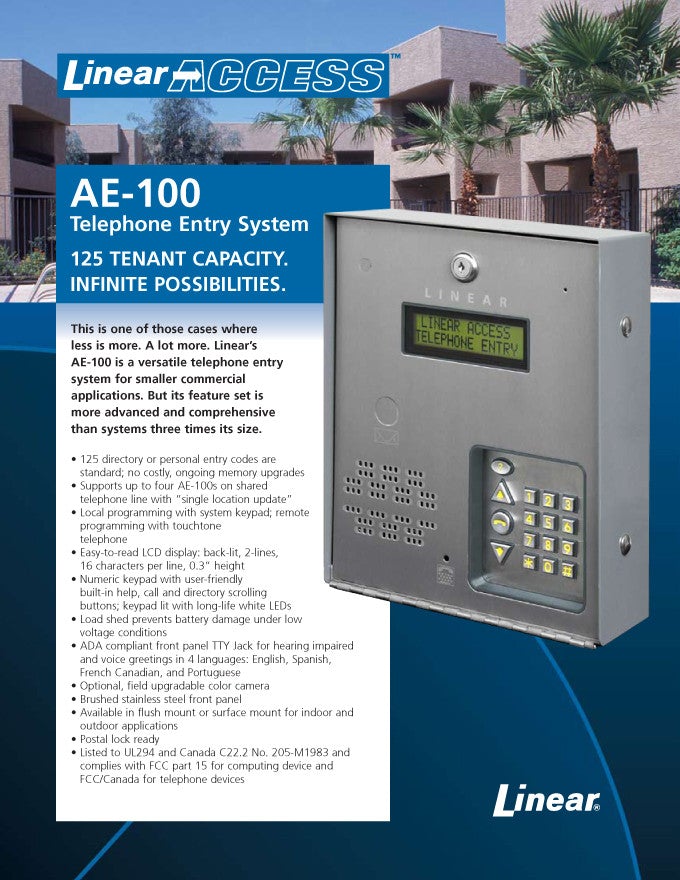

TELEPHONE ENTRY SYSTEM 1 DOOR/
