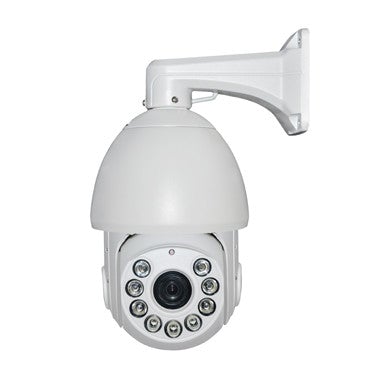

SeeStation PTZ Dome Camera, (AHD) Motorized 18x 2MP/1080P Analog High Definition (9 IR LED Array)

SKU: SS-CAHD4570AV2-18X

PN/ SS-CAHD4570AV2-18X *

SeeStation (AHD) Motorized PTZ Dome Camera

2MP/1080P Analog High Definition 18x optical zoom F=5-90mm. Long Range Night Vision, (120M) with 9 IR LED Array and White Metal Outdoor IP66 Rated Housing

This High Grade Professional Camera has about every important feature required to deliver Near Broadcast Quality images in viewing and recorded form. The SeeStation PTZ Series offers features found on much more expensive cameras. Users can control all features Including the Motorized Pan / Tilt / Zoom with a Keyboard or from the Remote Menu Operated Software. • Video resolution: 1920*1080

  • IR Range: 120M
    • Manual control 180° / sec 360° horizontal 90° vertical auto flip 180°
    • Video coding H.264
    • Preset: 255 Communication
    • 4 pattern scan, 8 group cruise track, support horizontal scan, two area   scan, random scan
    • Full screen OSD menu,
    • Compatible with a variety of other control protocol
    • Compatible with SeeStation  Local & Remote Control            Software
    • Baud rate adjustable
    • Metal casing, IP66, DC12V, 4A
    • Includes wall mount bracket and power adaptor

Model No.

SS-CAHD4570AV2-18X

Image Sensor

1/2.8" SONY CMOS

Signal Model

PAL/NTSC

Effective Pixel

1920(H)x1080(V)

Horizontal Resolution

1080P

Minimum Illumination

Color:0.01Lux, B/W:0.001Lux

S/N Radio

>60dB

Back Light Compensation

On/off

White Balance

Auto

Electronic Shutter

PAL:1/25~1/100000s; NTSC:1/30~1/100000s

Focus Length

5-90MM

Optical Focus

18X

Focus System

Auto/Manual

IR Distance

150M

IR Light Control

Intelligent Control Technology

IR Light Angle

Infrared Zoom Matching Technology

IR Light Power

Manual Setting

IR On

Auto/Camera/Timing

IR Life

30000 Hours

Horizontal Range

360° Continuous Rotation

Vertical Range

-90°~0°

Preset Call Speed

Max 30°/S

Manual Call Speed

0.01°~180°/S

Presets

255

Pattern

4, Each Can Record 3 Minutes

Tour

4, Each Group for 32 Presets

Fan Control

ICR Infrared Filter

Function Support

AB Scan, Patrol Track, Guard Position, Ratio Zoom, Timing Function, Speed Dome Camera's Title

Cooling Structure

Dust Proof Structure Outside the Circle

Preset Call Speed

Max 200°/s

Synchronization Mode

inter-sync / Mains Hold

IR Life

30000 Hours

IR Irradiation Angle

Adjustable by Zoom

IR Power

Self Regulation

IR Mode

Auto/Color/B&W

Heat Dissipation Structure

Outer Loop Dust Proof Structure

Protection Level

IP66

Power Supply

DC12V(4A)

Power

35W

Work Temperature

-35℃~+65℃
