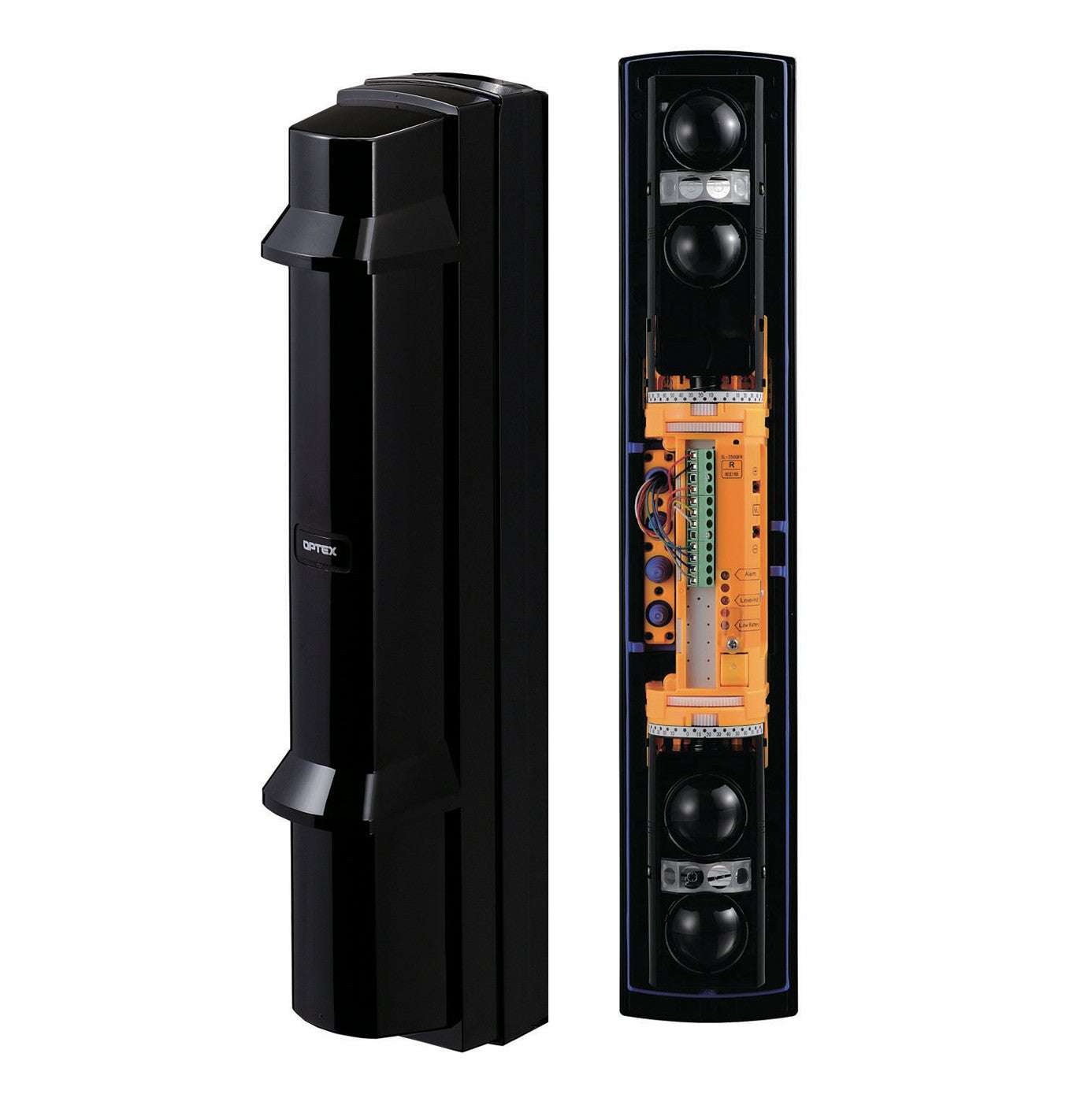

OPTEX SL-350QFR Wireless Ready 350' Quad Beam Detector (4 batteries included) **Contains Lithium Batteries - Cannot Air Ship**

Brand OPTEX
SKU: OPT-SL-350QFR

OPTEX SL-350QFR Wireless Ready 350' Quad Beam Detector (4 batteries included) **Contains Lithium Batteries - Cannot Air Ship**

PN / OPT-SL-350QFR *

Description:

Optex expands on its industry leading outdoor battery-powered intrusion line by adding the quad beam SL-350QFR, a 350 ft. battery-powered photoelectric detector requiring no trenching or wiring. Because of this, Integrators and Dealers can offer a significant cost saving alternative to traditional hardwired systems, while End Users will benefit from less downtime to business operations during install. The iSeries SL-350QFR includes a multi functional backbox that accepts most manufacturers wireless transmitters, and comes with four batteries per set, with the option of expanding to eight for up to 10 years of battery life.  In addition, the SL-350QFR is compatible with the AX-TW200 line of beam towers for a clean, concealed, wireless mounting option.The SL-350QFR is the perfect solution for perimeter protection where labor costs or trenching is an issue.

Features:
  • Quad Beam Detection
  • 4ch selectable beam frequency
  • Long battery life (2 batteries per transmitter and receiver included)
  • Accepts most major wireless transmitter
  • Sniper viewfinder for easy alignment
  • Water protection IP65
  • 5 to 10 years battery life operation for detector
Technology:
Active Infrared
Wiring:
Battery Powered
Installation:
Commercial
Industrial
Residential
Indoor/Outdoor:
Indoor
Outdoor
Product Type:
Detector
Zone:
Building
Perimeter
Interior
Power Input:
3.6 V, 13.0Ah LSH20 lithium batteries manufactured by SAFT Operating range: 3.2 V - 4.0 V lithium batteries Transmitter: 2 or 4 units, Receiver: 2 or 4 units
Alarm Output:
Form C-Solid State Switch: 3.6 VDC, 0.01 A
Current Consumption:
745µA (Transmitter: 420 µA + Receiver: 325 µA (at 77°F, 3.6 VDC))
Operation Temperature:
-4°F – +140°F (-20°C – +60°C)

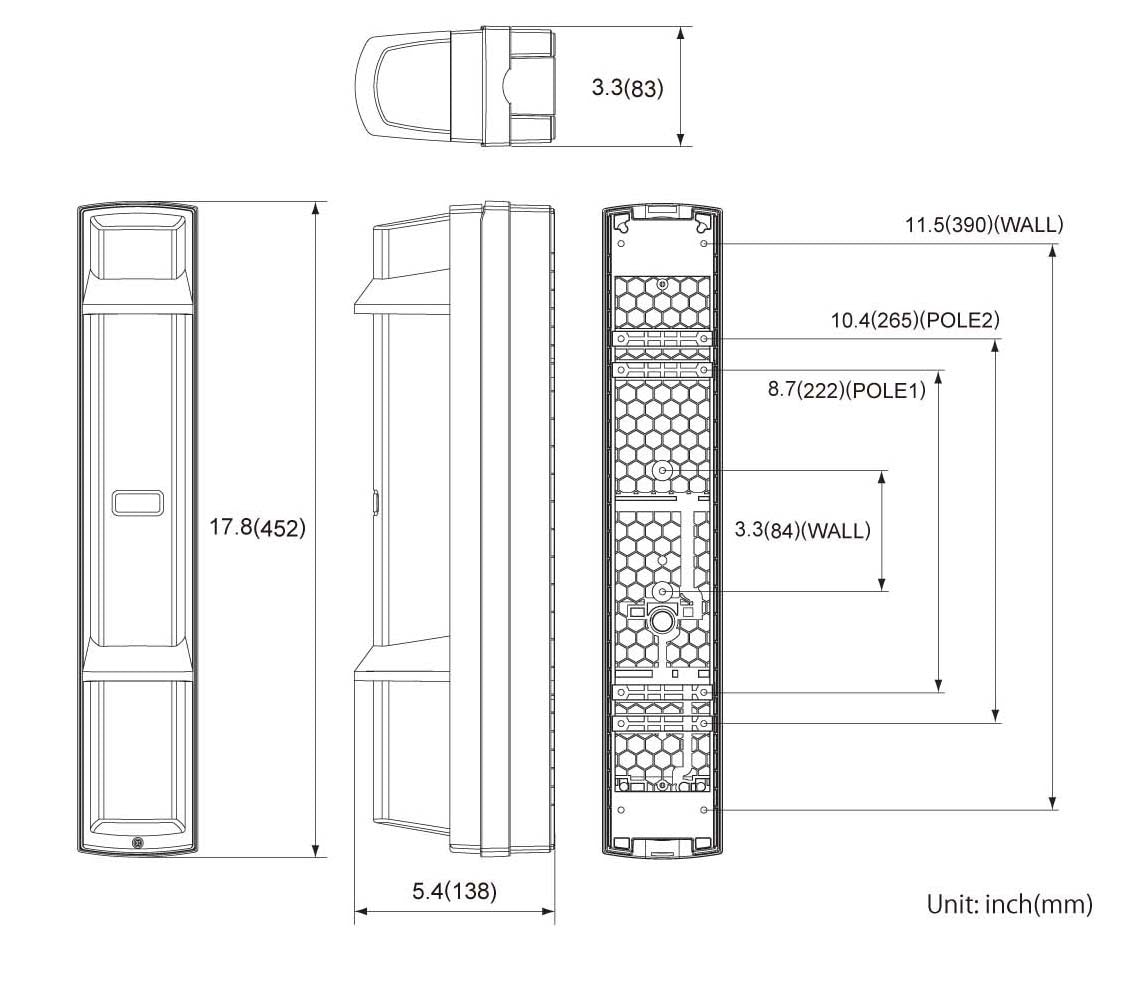

Dimensions:

17.9in. x 3.3in. x 5.4in.

 **Contains Lithium Batteries - Cannot Air Ship**
