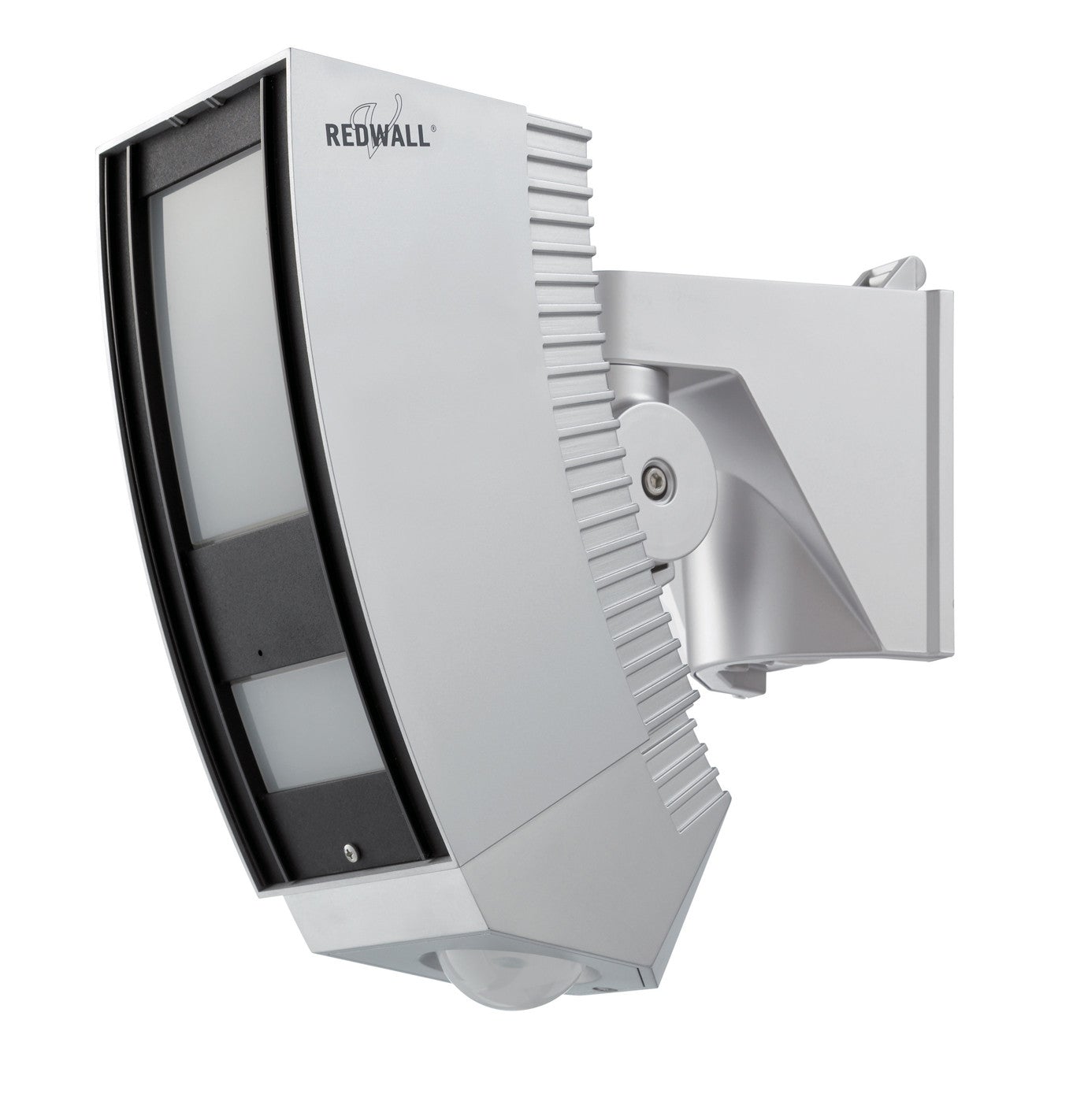

OPTEX SIP-5030 165' x 100' Superior Intelligent PIR detector with Anti-Masking and Rotation

Call 1-800-888-8101 for pricing
Vendor OPTEX

PN / OPT-SIP-5030 *

**AVF-1 & AWT-3 Required for Proper Installation**

Description:

The SIP-5030 offers wide angle-detection for triggering CCTV systems in large areas outside. It has an intelligent detection system that uses data from the ambient environment, such as temperature and illuminance conditions, to automatically adjust the sensitivity. In addition, the SIP-5030 has a seperate PIR detector at the bottom of the unit to cover the creep zone area. This second creep zone PIR has an independent output that is separate from the main output, and can be used to protect the area around the detector while the main output can trigger the CCTV system. The detection angle in the main area of the SIP-5030 can be adjusted to easily match a camera's field of view and the unit is also equipped with anti-rotation and anti-masking functions, which can detect vandalism or tampering with the unit.

Features:

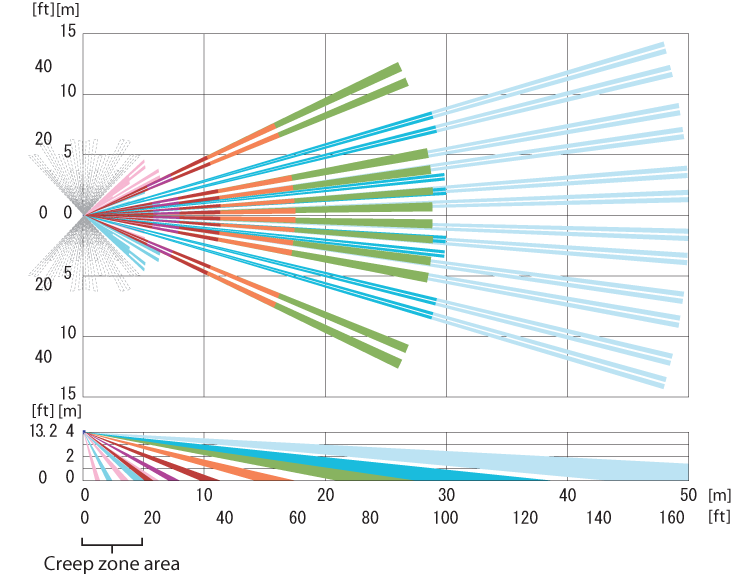

  • 2 in one detectors with an independant creep zone sensor unit to cover the area between the detector and the buidling
  • Intelligent PIR detection system
  • Automatic sensitivity management to ambient temperature and light
  • Advanced detection algorithm
  • Double dual/one Quad pyro-elements with patented Double Conductive Shielding for main area
  • Anti-vandalism functions including anti-masking and anti-rotation function with 3-axis accelerometer
  • 7.6ft to 13ft mounting height
  • Independant sensitivity for creep/ near and far detection zones
  • Detection logic selector
  • Detection range selector
  • Independant N.C. and N.O. outputs for main areas
  • Adjustable alarm interval time
Technology:
Passive Infrared
Wiring:
PoE
Wired
Installation:
Commercial
Government
Industrial
Indoor/Outdoor:
Outdoor
Product Type:
Detector
Zone:
Building
Approach
Perimeter
Power Input:
11 - 16VDC, 22 - 26 VAC (22 - 26VAC with optional heating unit)
Alarm Output:
N.O., N.C. 28VDC 0.2A max.
Current Consumption:
40mA max. at 12V DC, 75mA max. at 24V AC (415mA max. (24VAC) with optional heating unit)
Operation Temperature:
-13° to +140°F (-40° to +140°F with optional SIP-HU heating unit)
Coverage:

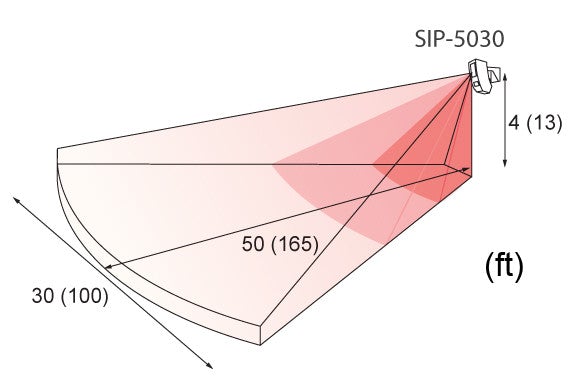

165' x 100' Superior Intelligent PIR detector with Anti-Masking and Rotation
