PN / OPT-SIP-404WFI *
**Contains Lithium Batteries - Cannot Air Ship**
Description:

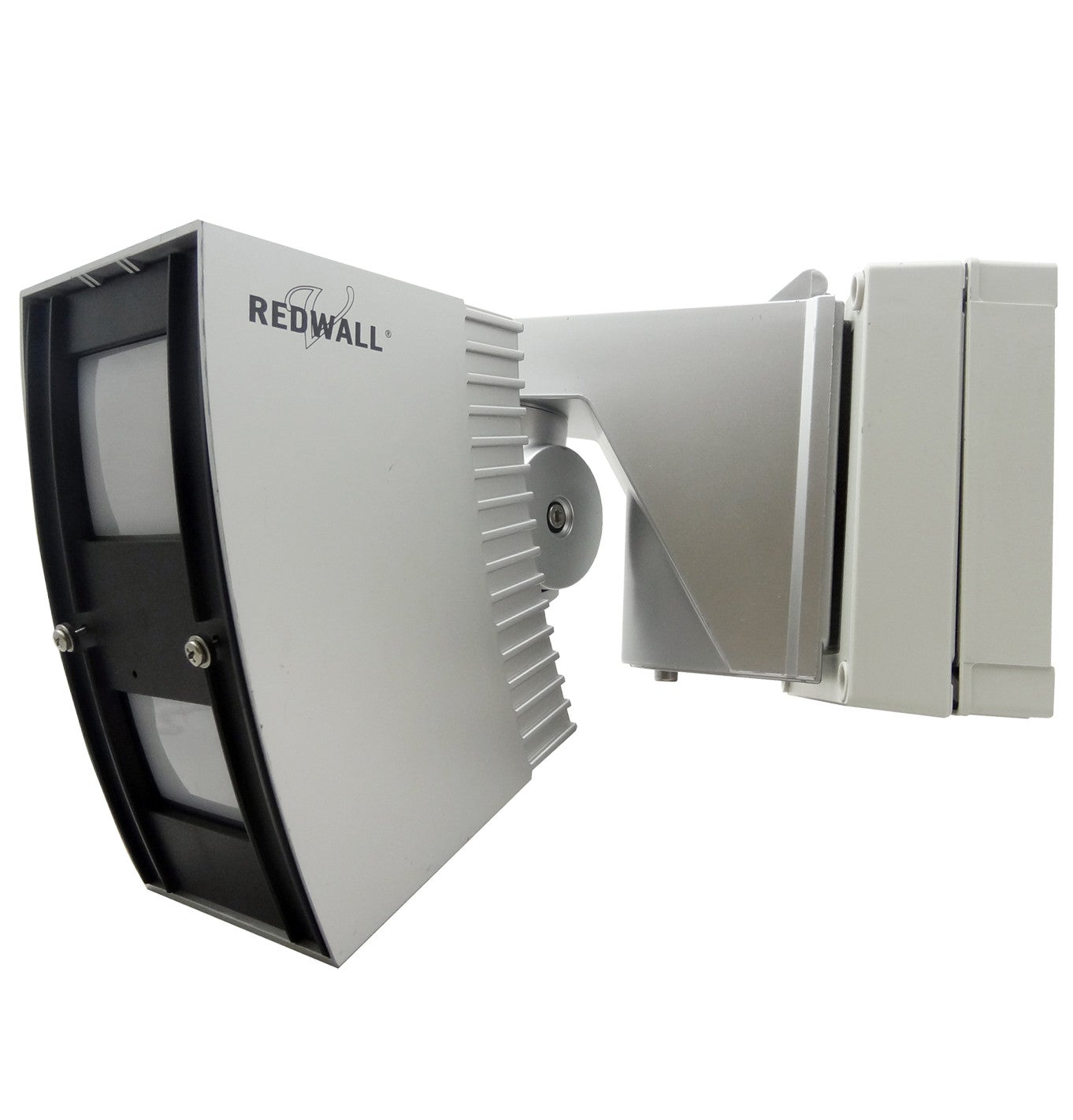

The iSeries SIP-404WFi is a battery powered PIR detector that offers mid range outdoor detection for triggering CCTV systems. It includes a weatherproof backbox with an Inovonics EN1941 wireless transmitter and battery pre-installed, eliminating the need to run wire to power the detector. The SIP404WFi is also equipped with anti-rotation, anti-masking functions in addition to the anti-tamper feature which provides further security. The superior power management circuit achieves low current consumption without compromising the rich functionality.
Features:
- Inovonics EN1941 wireless transmitter and battery pre-installed
- Detection of ambient temperature and illuminance for automatic sensitivity management
- Advanced detection algorithm
- Three dual pyro-elements with patented Double Conductive Shielding
- Anti-vandalism functions
- Anti-rotation function with 3-axis accelerometer
- Anti-masking function with photo-beam
- Reinforced polycarbonate housing

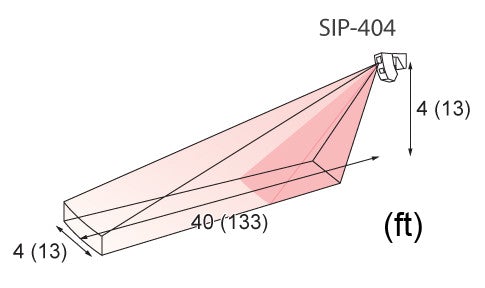

- Max. 4m (13ft.) installation height
- Independent sensitivity selector for near/far areas
- Detection logic selector Detection range selector
- Independent N.C. and N.O. outputs
- Adjustable alarm interval time
Technology:
Passive Infrared
Wiring:
Battery Powered
Installation:
Commercial
Government
Industrial
Indoor/Outdoor:
Outdoor
Product Type:
Detector
Zone:
Building
Approach
Perimeter
Power Input:
3 to 9VDC Alkaline or lithium battery (Not included)
Alarm Output:
N.C. 10VDC, 0.01A max. N.O. 10VDC, 0.01A max.
Current Consumption:
40μA(Standby) 5mA max. (Operating LED ON)
Operation Temperature:
-13°to +140°F (-25 to +60°C)
