OPTEX SIP-3020WFI Wireless 100' X 65' Outdoor PIR detector with Anti-Masking and Rotation complete with Inovonics transmitter and battery

Brand OPTEX
SKU: OPT-SIP-3020WFI

OPTEX SIP-3020WFI Wireless 100' X 65' Outdoor PIR detector with Anti-Masking and Rotation complete with Inovonics transmitter and battery

PN / OPT-SIP-3020WFI *

**Contains Lithium Batteries - Cannot Air Ship**

Description:

The iSeries SIP-3020WFi is a battery powered PIR detector that offers mid range outdoor detection for triggering CCTV systems. It includes a weatherproof backbox with an Inovonics EN1941 wireless transmitter and battery pre-installed, eliminating the need to run wire to power the detector. The SIP3020WFi is also equipped with anti-rotation, anti-masking functions in addition to the anti-tamper feature which provides further security. The superior power management circuit achieves low current consumption without compromising the rich functionality.

Features:
  • Inovonics EN1941 wireless transmitter and battery pre-installed
  • Detection of ambient temperature and illuminance for automatic sensitivity management
  • Advanced detection algorithm
  • Three dual pyro-elements with patented Double Conductive Shielding
  • Anti-vandalism functions
  • Anti-rotation function with 3-axis accelerometer
  • Anti-masking function with photo-beam
  • Reinforced polycarbonate housing
  • Max. 4m (13ft.) installation height
  • Independent sensitivity selector for near/far areas
  • Detection logic selector Detection range selector
  • Independent N.C. and N.O. outputs
  • Adjustable alarm interval time
Technology:
Passive Infrared
Wiring:
Battery Powered
Installation:
Commercial
Government
Industrial
Indoor/Outdoor:
Outdoor
Product Type:
Detector
Zone:
Building
Approach
Perimeter
Power Input:
3 to 9VDC Alkaline or lithium battery
Alarm Output:
N.C. 10VDC, 0.01A max. N.O. 10VDC, 0.01A max.
Current Consumption:
40μA(Standby) 5mA max. (Operating LED ON)
Operation Temperature:
-13°to +140°F (-25 to +60°C)

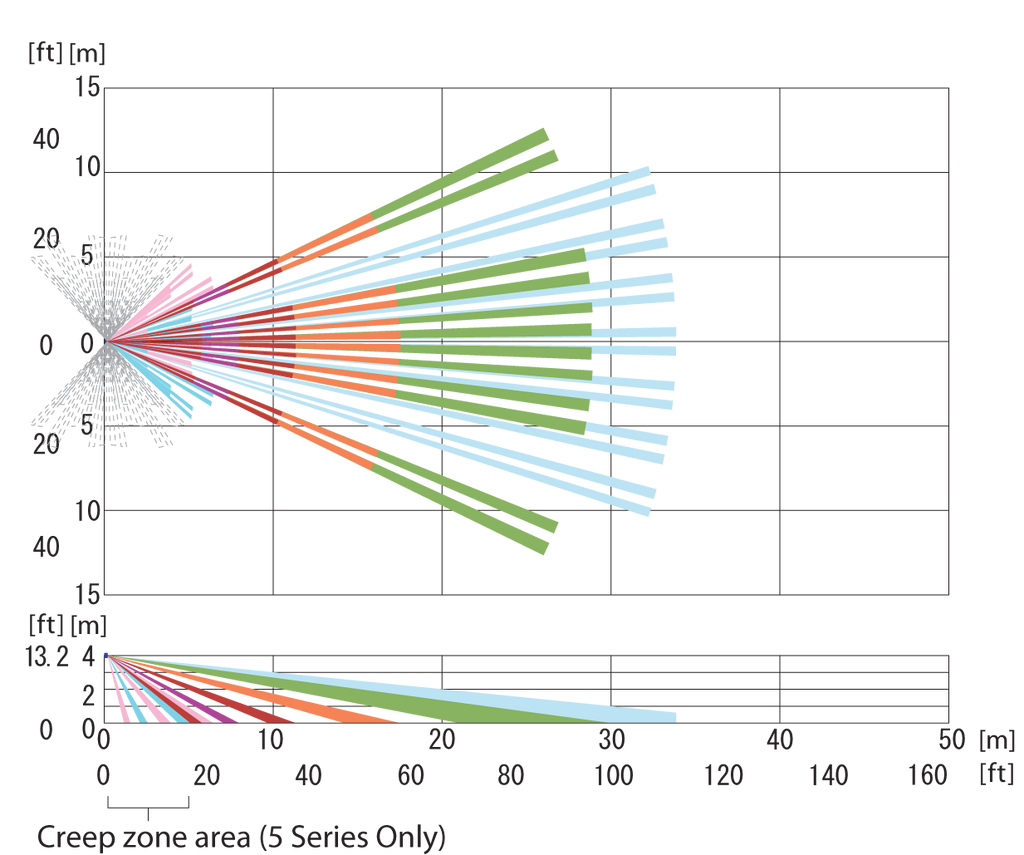

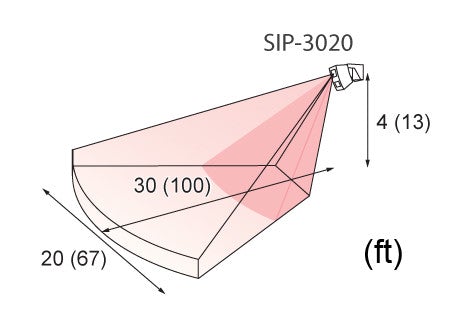

Coverage:

Wireless 100' X 65' Superior Intelligent battery-powered PIR detector with Anti-Masking and Rotation complete with Inovonics transmitter and battery

A&E Specifications

VIEW OPTEX WARRANTY INFORMATION

VIEW OPTEX WEB SITE
