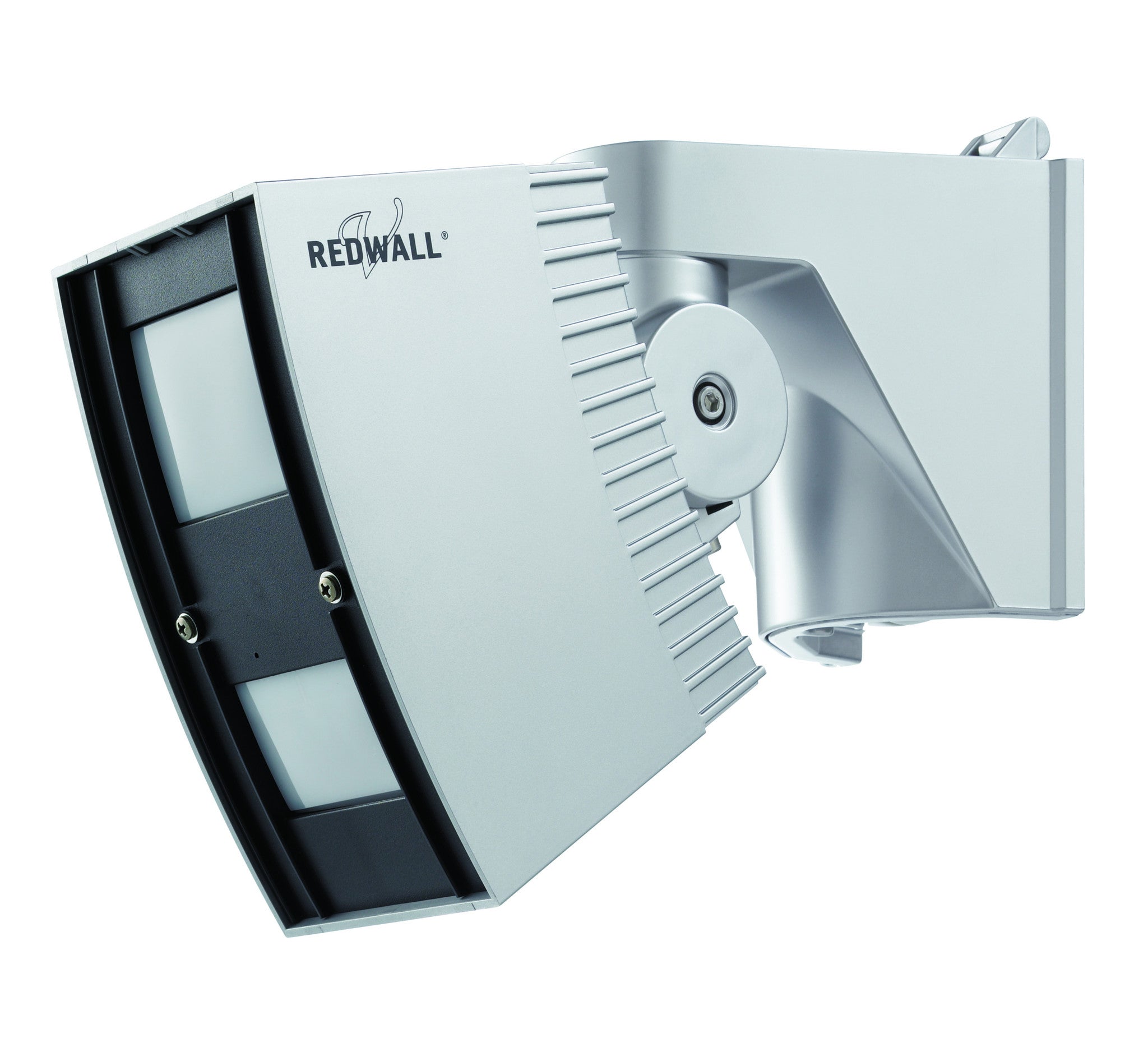

OPTEX SIP-3020WF Wireless Ready 100' X 65' Superior Intelligent PIR detector with Anti-Masking and Rotation

Brand OPTEX
SKU: OPT-SIP-3020WF

OPTEX SIP-3020WF Wireless Ready 100' X 65' Superior Intelligent PIR detector with Anti-Masking and Rotation

PN / OPT-SIP-3020WF *

 **AVF-1 & AWT-3 Required for Proper Installation**

Description:

The SIP-3020WF is a battery powered PIR detector that offers mid range outdoor detection for triggering CCTV systems. It is compatible most manufacturers wireless transmitters, eliminating the need to run wire to power the detector. The SIP3020WF is also equipped with anti-rotation, anti-masking functions in addition to the anti-tamper feature which provides further security. The superior power management circuit achieves low current consumption without compromising the rich functionality. (Battery and backbox not included.)

Features:
  • Battery operated Intelligent PIR Detection System (Battery Not Included)
  • Detection of ambient temperature and illuminance for automatic sensitivity management
  • Advanced detection algorithm
  • Three dual pyro-elements with patented Double Conductive Shielding
  • BS 8418 Compliant
  • Anti-vandalism functions
  • Anti-rotation function with 3-axis accelerometer
  • Anti-masking function with photo-beam
  • Reinforced polycarbonate housing
  • Max. 4m (13ft.) installation height
  • Independent sensitivity selector for near/far areas
  • Detection logic selector Detection range selector
  • Independent N.C. and N.O. outputs
  • Adjustable alarm interval time
Technology:
Passive Infrared
Wiring:
Battery Powered
Installation:
Commercial
Government
Industrial
Residential
Indoor/Outdoor:
Outdoor
Product Type:
Detector
Zone:
Building
Approach
Perimeter
Power Input:
3 to 9VDC Alkaline or lithium battery (Not included)
Alarm Output:
N.C. 10VDC, 0.01A max. N.O. 10VDC, 0.01A max.
Current Consumption:
40μA(Standby) 5mA max. (Operating LED ON)
Operation Temperature:
-13°to +140°F (-25 to +60°C)

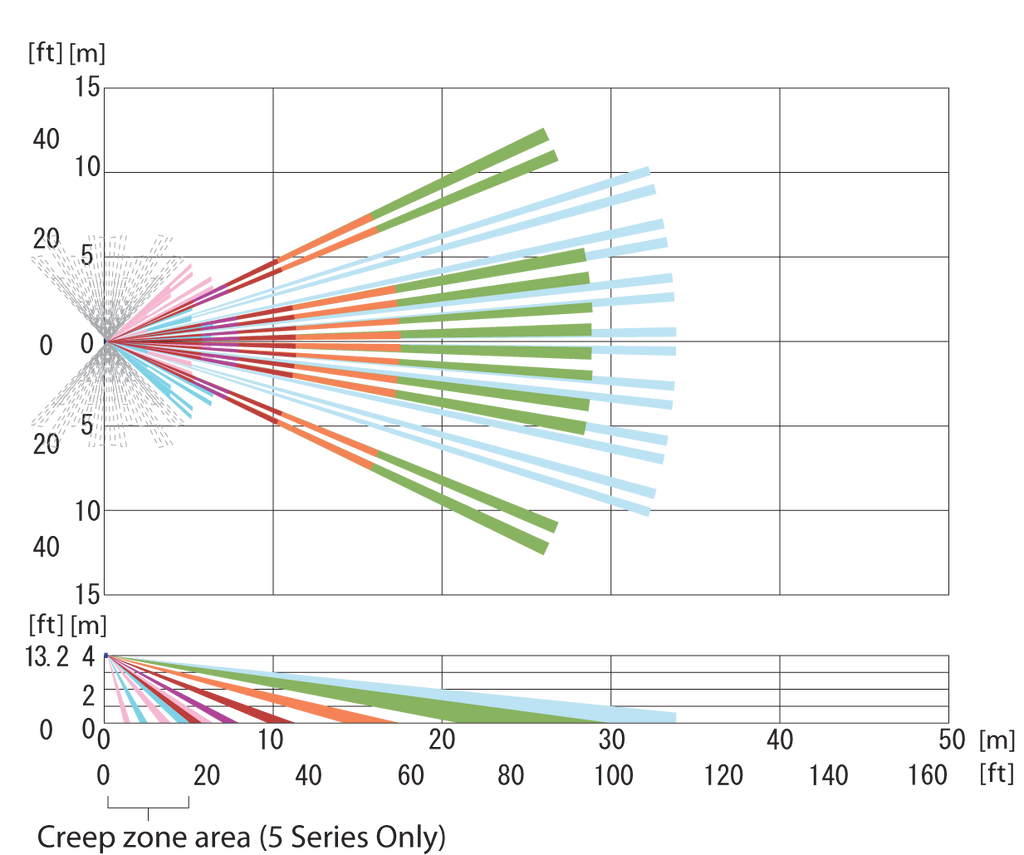

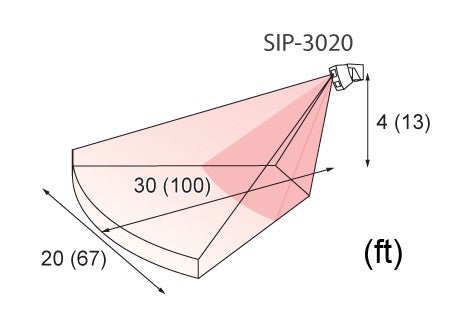

Coverage:

Wireless Ready 100' X 65' Superior Intelligent PIR detector with Anti-Masking and Rotation

A&E Specifications

VIEW OPTEX WARRANTY INFORMATION

VIEW OPTEX WEB SITE
