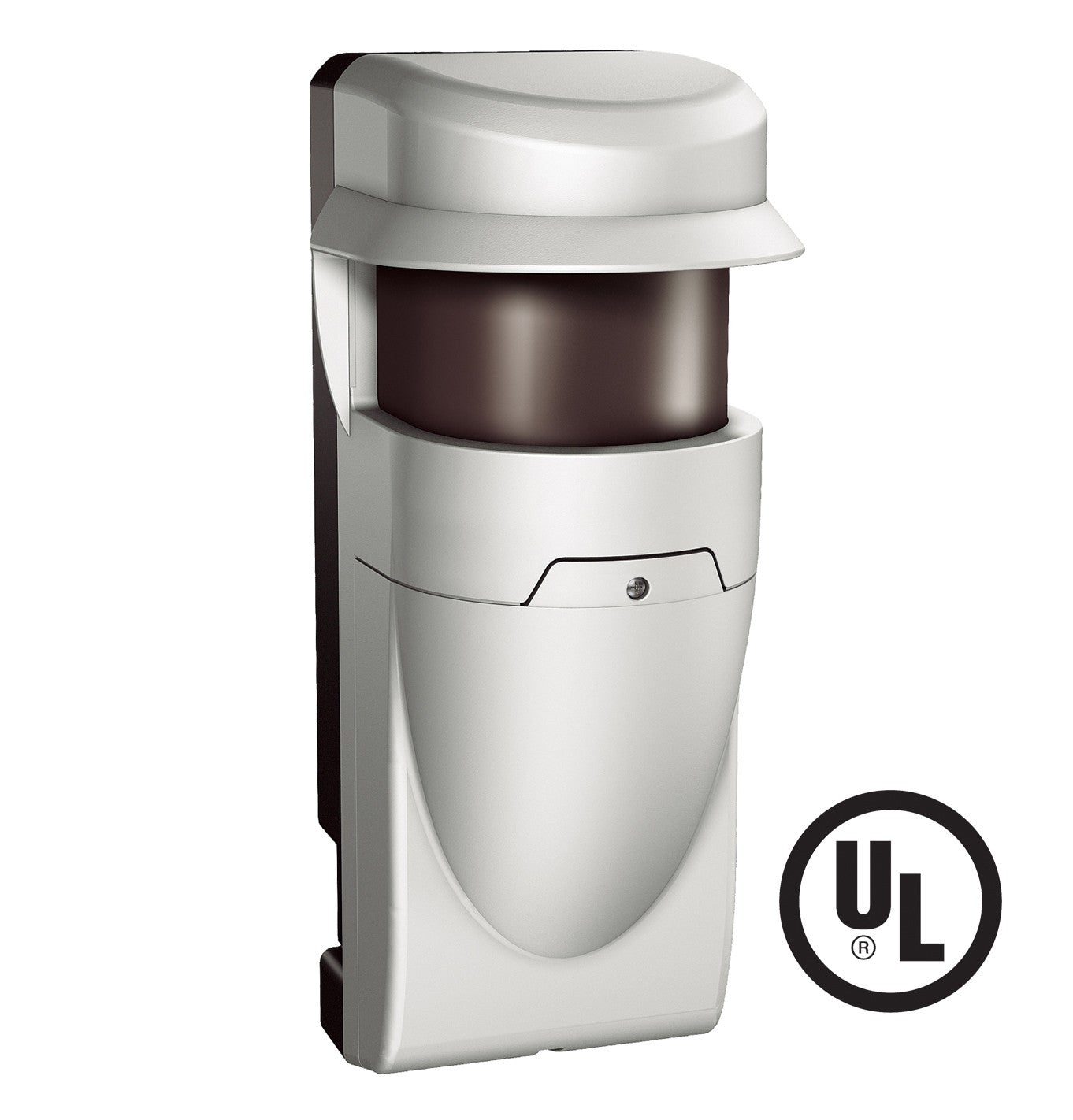

OPTEX RLS-3060SH 100' x 180 degree laser scan detector, advanced version

Brand OPTEX
SKU: OPT-RLS-3060SH

OPTEX RLS-3060SH 100' x 180 degree laser scan detector, advanced version

PN / OPT-RLS-3060SH *

Description:

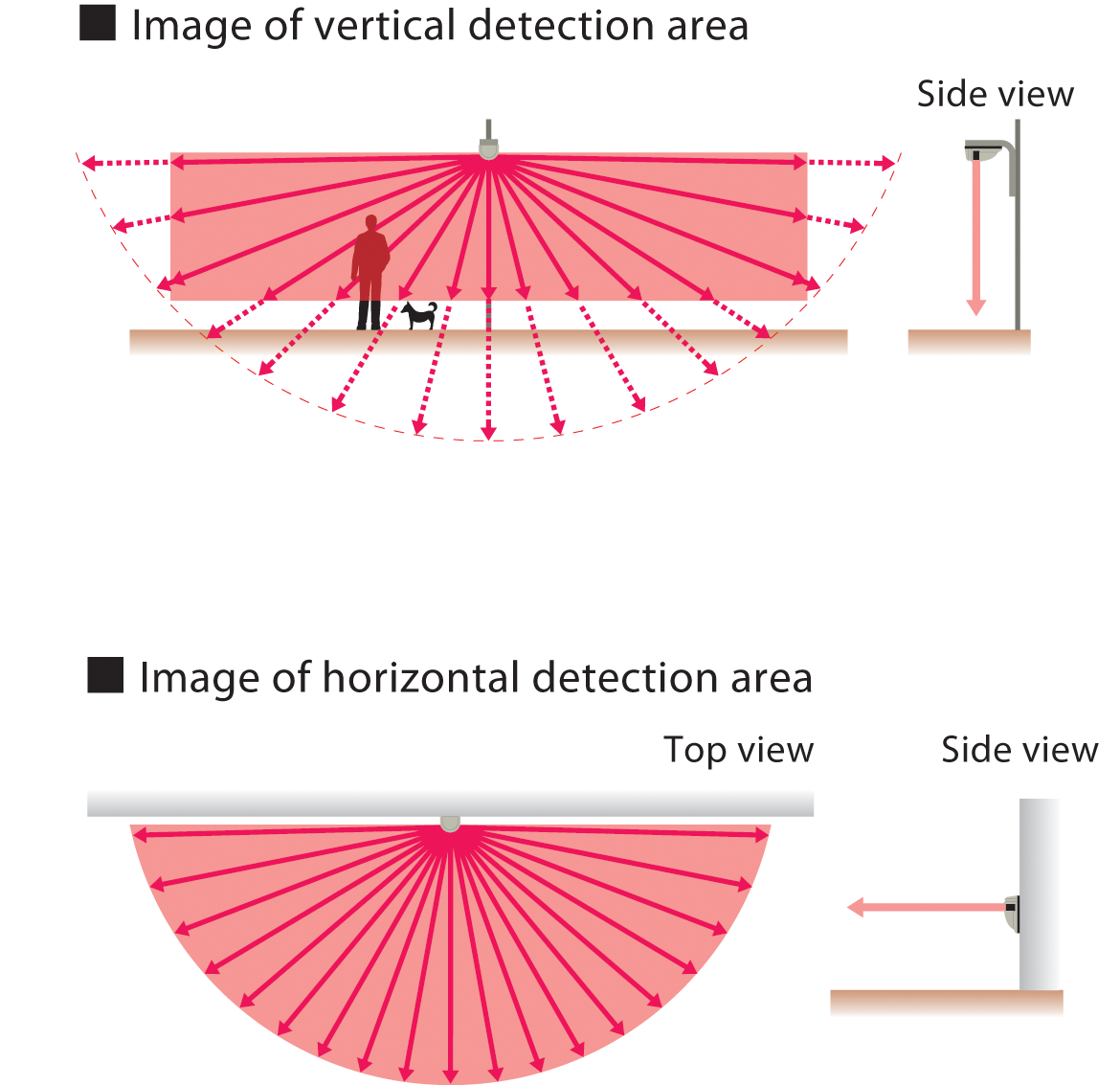

The REDSCAN RLS-3060SH is an innovative laser scan detector that can detect a moving object's size, speed, and distance from the detector and process that information with a unique algorithm. This results in a high-reliability detection of people with minimal false alarms. The detector can also be mounted vertically or horizontally according to the application and site conditions. When vertical detection area is selected, the 3060SH creates a 200ft. detection area that functions like an invisible wall. With four outputs for remote video applications and 8 independently adjustable detection areas and REDWALL event codes, the RLS-3060SH is the ideal detector for controlling PTZ cameras and is integrated with leading VMS platforms. When horizontal detection area is selected, the RLS-3060SH creates a detection area with a radius of 100ft. and an arc of 190°. The detection area can be set manually or automatically. If the automatic setting is used, the detector will set the proper detection area; even for complicated area shapes. REDSCAN is a sophisticated next-generation outdoor detector that streamlines video monitoring and reduces installation costs.

Features:
  • Innovative Laser technology
  • Analog or IP
  • identifies the size, speed and distance of a moving object
  • 100ft. radius for 190 range (horizontal mounting)

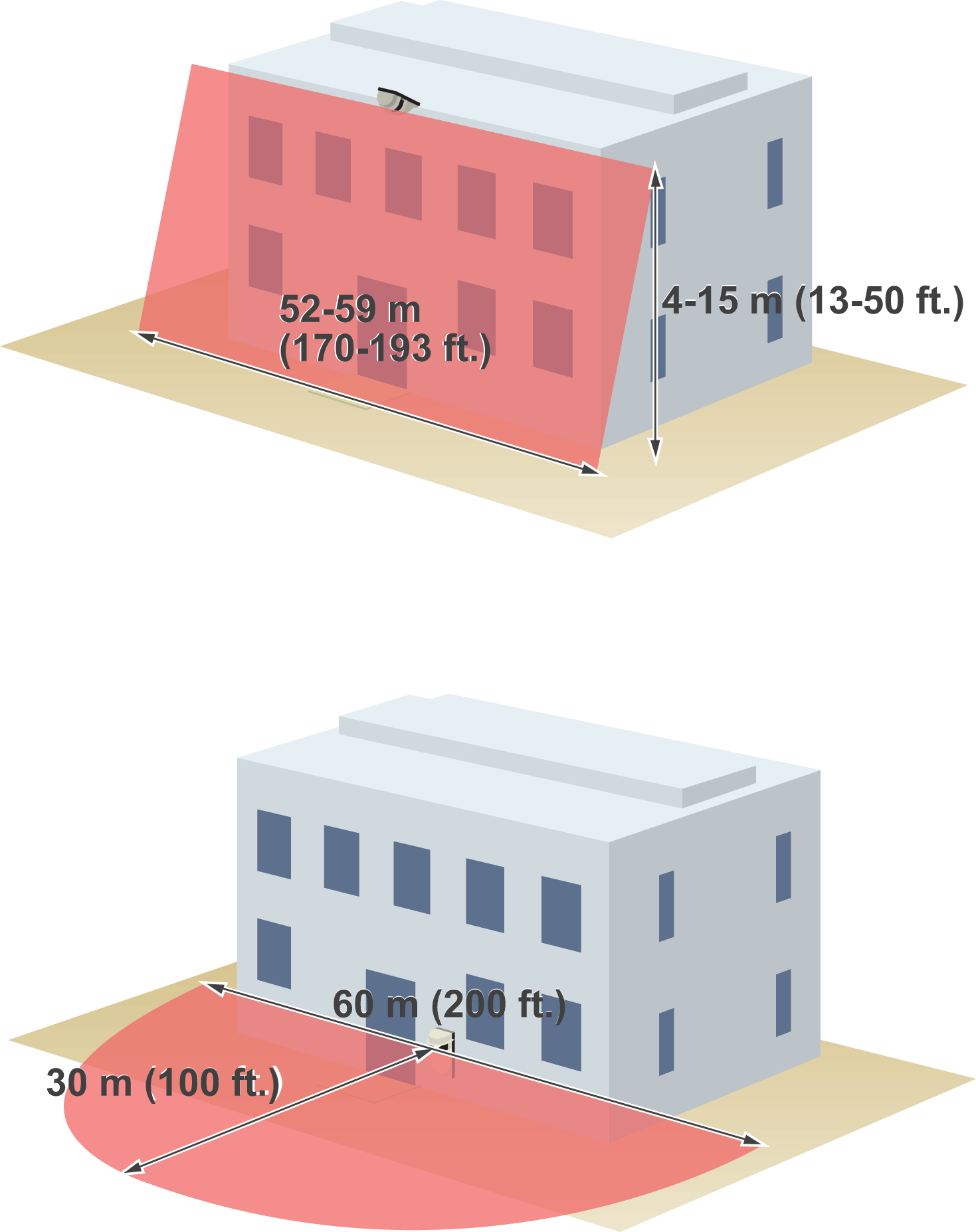

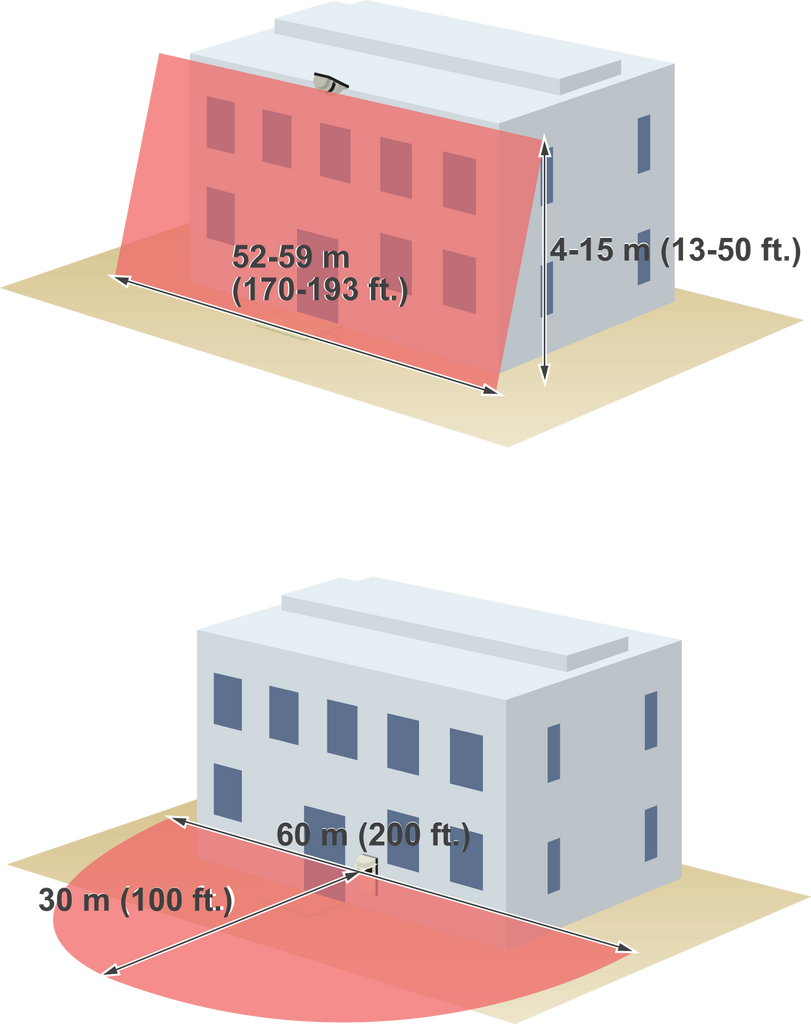

  • virtual wall of 13ft. -50ft. high x 170ft. - 195ft. wide for the vertical applications
  • unique detection algorithm
  • automatic area seting function
  • 8 independently adjustable detection areas and REDWALL event codes for network recorder and Video Management Software (VMS)
  • fog cancellation algorithm
  • scene selection (indoor / outdoor, ceiling / wall protection and vehicle)
  • Can be powered with PoE plus using PIE-1
Technology:
Laser
Wiring:
PoE
Wired
Installation:
Commercial
Government
Industrial
Residential
Indoor/Outdoor:
Indoor
Outdoor
Product Type:
Detector
Zone:
Building
Approach
Perimeter
Interior
Power Input:
Main Unit: 24V AC/DC ±10%, Heater: 24V AC/DC ±10%
Alarm Output:
Form C, 28V DC .2mA max.
Current Consumption:
Main Unit: 400mA (24VDC), 600mA (24VAC). Heater: 400mA (24V AC/DC)
Operation Temperature:
-4°F – +140°F (-20°C – +60°C), -40°F to 140°F with heater
Coverage:

100' x 180 degree laser scan detector,advanced version **Dealer must be certified & registered with Optex to Purchase**

Installation Manual

Literature

A&E Specifications

Product Digest

VIEW OPTEX WARRANTY INFORMATION

VIEW OPTEX WEB SITE
