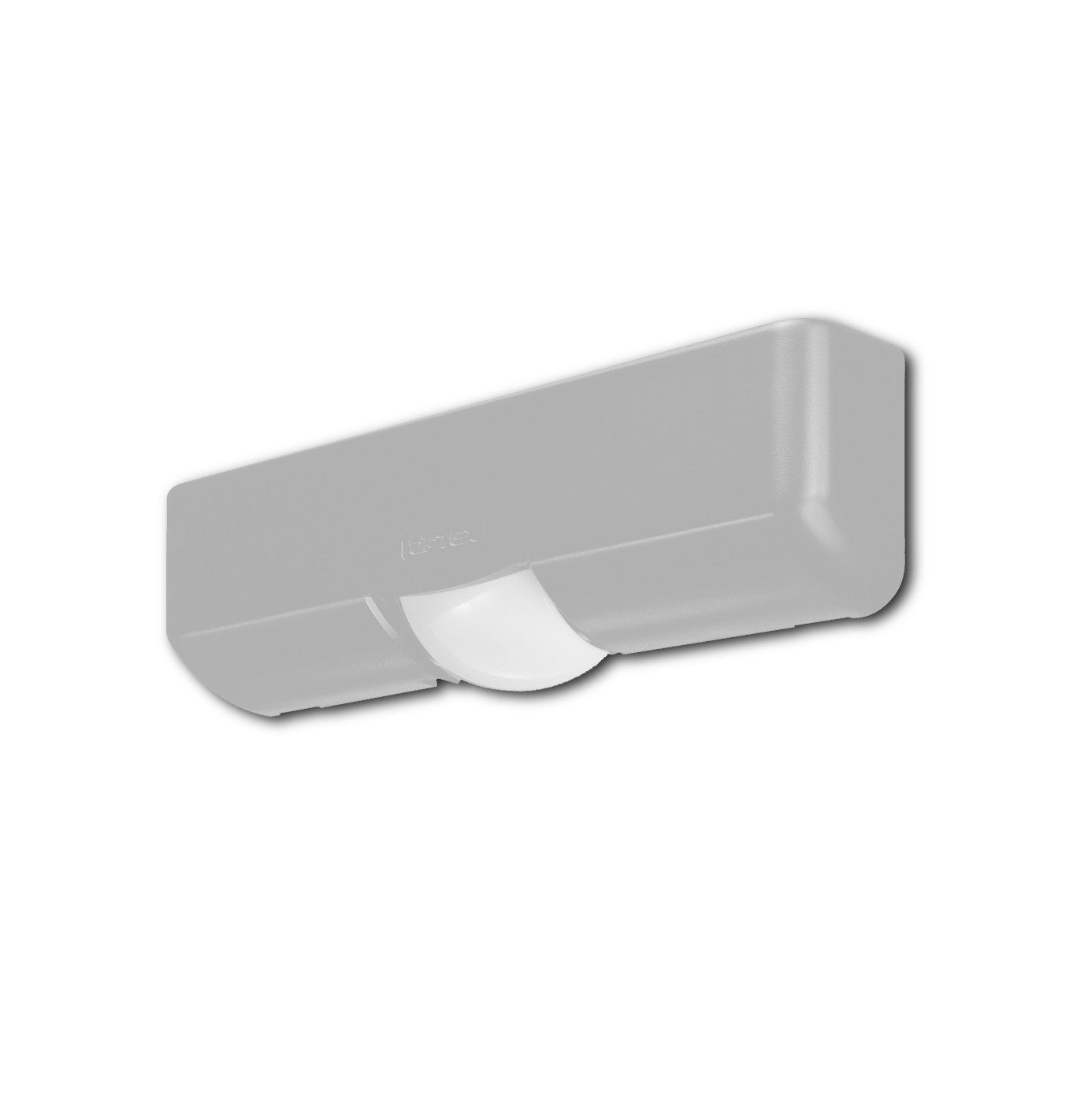

OPTEX OP-08CW Request-to-Exit PIR 12/24V FORM C (White)

Brand OPTEX
SKU: OPT-OP-08CW

OPTEX OP-08CW Request-to-Exit PIR 12/24V FORM C (White)

PN / OPT-OP-08CW *

Description:

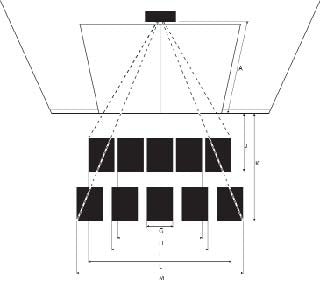

The Optex OP-08CW passive infrared door sensor is a reliable and cost effective sensor for every type of automatic door application. The compact housing also makes it suitable for recessed mounting, and it brings good looks, versatility, and high performance to request-to-exit PIR applications. The OP-08CW mounts on the transom or ceiling and has 10 individual detection zones which can easily be masked to control detection. Its special 'Wide & Deep' pattern adjustment doubles your detection pattern options. Available in black or white, OP-08 is Fail Safe or Fail Secure selectable, 12-24V AC/DC, and has a form C relay.

Features:
  • Compact and Attractive Housing Design
  • Ceiling Mounting
  • Environmental and Artificial Disturbance Immunity
  • Flexible Detection Area Setting
  • Two Color Choices (Black / White)
  • 12 -24 V AC/DC Universal Power Input
  • "Form C" Output Relay (N/O or N/C)
  • Fail Safe or Fail Secure Selectable
  • "CE" Marked
Technology:
Passive Infrared
Wiring:
Wired
Installation:
Commercial
Indoor/Outdoor:
Indoor
Outdoor
Product Type:
Detector
Zone:
Building
Interior
Power Input:
12 - 24VAC/DC
Alarm Output:
Form C Relay 50V, 0.3A (Resistance Load)
Current Consumption:
50mA max
Operation Temperature:
-4ºF - +131ºF (-20ºC - +55º)
Coverage:

Request-to-Exit PIR 12/24V FORM C (White)
