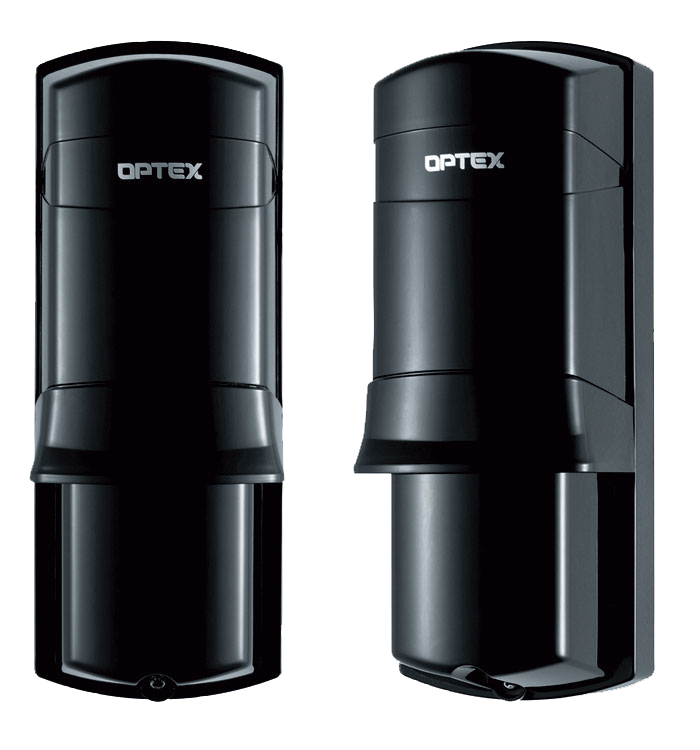

OPTEX AX-100TF 100' Outdoor 4 Channel Select Dual Beam w/Form C Relay Output
Couldn't load pickup availability
Vendor OPTEX
PN / OPT-AX-100TF *
100' Outdoor 4 Channel Select Dual Beam w/Form C Relay Output
Description:
The AX-100TF short range photoelectric detector is compact in design with selectable beam frequencies. The selectable beam frequencies can be used to avoid unwanted crosstalk that can occur when using multiple photobeams over long distances or for beam stacking applications. The AX-100TF also carries the IP65 high durable structure, which prevents water, dust or bugs from getting into the unit. The ideal optical pitch design reduces false alarms due to accidental beam interruption by falling leaves, birds, and so on. These features deliver performance with higher reliability in severe outdoor environmental condition.
Features:
- Selectable 4 channel beam frequencies
- 4 step alarm indicator LED
- Environmental disqualification circuit
- IP65 structure
- Lightning and surge protection
- Anti-frost hood cover
- 99% beam blocking stability
- A.G.C circuit
- Adjustable beam interruption time
Power Input:
10.5 - 28V DC
Alarm Output:
Form C
Current Consumption:
44mA max
Operation Temperature:
-30ºF - +140ºF (-35ºC - +60ºC)
Technology:
Active Infrared
Wiring:
Wired
Installation:
Commercial
Industrial
Residential
Indoor/Outdoor:
Indoor
Outdoor
Product Type:
Detector
Zone:
