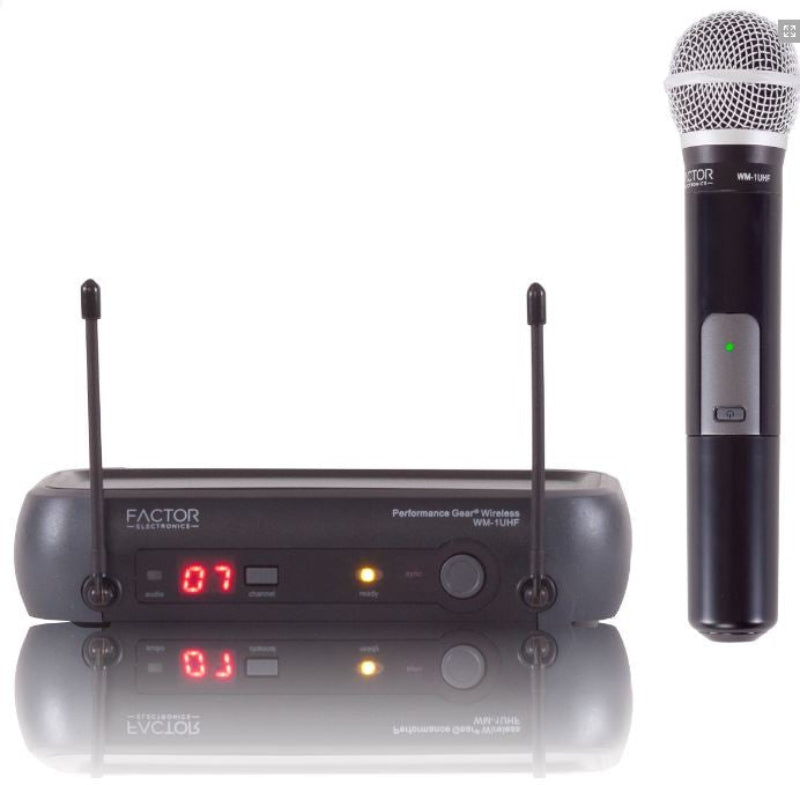

FACTOR WM-1 WIRELESS HAND HELD UHF MIC SYSTEM

Call 1-800-888-8101 for pricing
In stock

PN / FAC-WM-1UHF *

Single diversity UHF wireless microphone system

Features:
Single diversity UHF wireless microphone system
10 Selectable UHF channels
Wide frequency hand-held microphone
Operates on two inexpensive AA batteries
Infrared microphone auto sync function
Excellent feedback rejection
Cardioid pickup pattern
Integrated ON/OFF switch
3 Pin balanced XLR output & 1/4 unbalanced output
Receiver with LCD display
Includes 6' 1/4 phone cable and power supply

Specifications:
Receiver:
Carrier wave freq range - UHF 600-870MHz
Oscillation Mode Phase-lock loop controlled
Carrier wave stability - 10PPM
Sensitivity 100dB @ sinad= 12dB
S/N ratio 80dB
THD - <0.8% @ 1kHz
Image rejection 85dB
Spurious rejection 75dB
Frequency response 50Hz-16kHz
Working distance 200ft approx
Squelch Dual-squelch circuit
AF Output impedance 2.2k ohms
Max output level 0-400mv bal / 0-200mv unbal
Display type LCD
Power supply 0.4A 12 DC Included

Hand-held Transmitter:
Capsule Type Moving coil dynamic
Pickup pattern- Cardioid
Frequency Response 50Hz- 16kHz
Sensitivity - (-74dB +/- 3dB)
ON/OFF switch Yes
Power 30mW
Spurious Emission <40dB (with carrier)
Display LED
Battery voltage 1.5V x 2 AA batteries
Battery life- 8 hours approx

Dimensions: (W x D x H)
W= 8.5/216mm x
D= 6.25/158mm
H=1.75/44mm
Shipping Weight 3 lbs (1.36kg)
