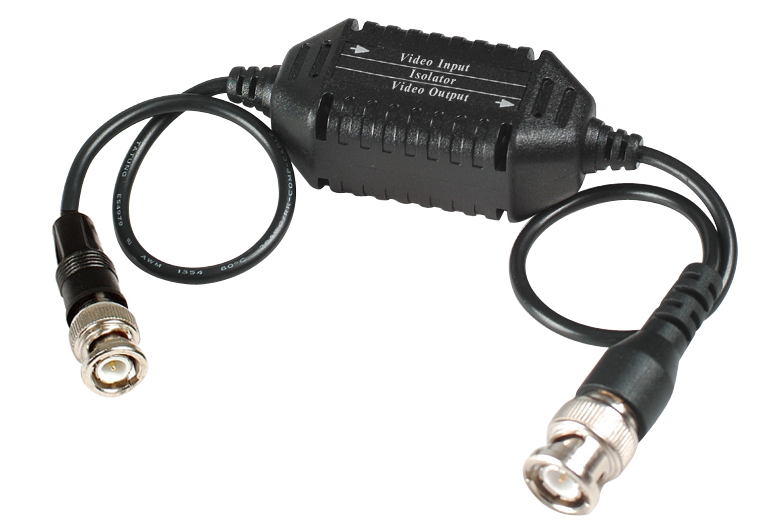

SEESTATION GL001H Coaxial Video Ground Loop Isolator, High Performance

Call 1-800-888-8101 for pricing
Vendor SeeStation

PN / SEE-GL001H *


The GL001H Video Ground Loop Isolator is passive devices which reduce Ground Loop Interference with CCTV signals and can easily install in a new or added to existing systems.   It is useful where a video signal is transmitted via cable between points with different ground potentials, Differences in ground potentials are typically caused by unbalanced power line loads.

  • BNC male to BNC female with mini cable 15cm on both sides.
  • Passive type, no power need.
  • Hi Performance to eliminate ground loop problem.
  • Low video loss , Bandwidth: 20hz -11Mhz ,+0/-3Db
  • Prevents video-signal distortion caused by video ground loops.
  • Eliminates picture tearing, cross talk and rolling.
  • Prevents power cables laid by others interfering with the CCTV system.
  • ITEM NO. GL001H
    Insertion Loss
    Bandwidth 20Hz -11MHz, +0/-3dB
    Input Resistance 75 ohm
    Output Resistance 75 ohm
    Ground loop rejection >90dB @>50Hz
    Isolation Voltage 600VDC (Min)
    Insulation Resistance 100m Ohm
    Transient Voltage Suppressors 12 Vrms
    Dimensions (mm) 28x26.5x73 with 15cmx2 cable
    Material ABS Black
