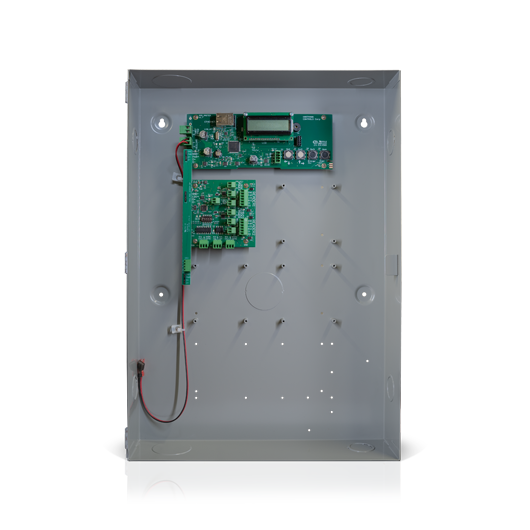

The PRS is a compact, powerful and cost effective 2-8 door traditional style controller, designed to be easily scalable and make retrofits seamless. The PRS-2DR Starter can control up to 2 doors and be expanded to 8 doors with the addition of 3 x PRS-T DM. Uses standard access control cabling. Wiegand or OSDP readers. Dedicated battery port for use with standard 12VDC 7Ah dry cell battery (not included). LCD screen can be used for diagnostics, troubleshooting, network configuration. Utilizing a solid -state design; this controller is difficult to break and easy to learn.
Advanced hardware functions include built-in ADA opener sequencing, Key-switch level alarm integration, mantrap/interlock support, Anti-passback, Triple swipe actions, user specifi c actions, local/remote lockdown.
Door controller connects to PROTECTOR.Net software deployed locally/remotely, hosted by the integrator or Hartmann Controls Corp cloud-based hosting.
Enterprise grade PROTECTOR.Net software meets the needs of small to enterprise type sites. Some highlights include Open API, unlimited customization via ACE server-side scripting engine, powerful Partitioning, administrator permissions, extensive Notification/Alert customization, mobile support, end-to-end encryption, VMS integration, Active Maps, LDAP integration and more.


  • PROTECTOR.Net product line includes PoE Door controllers, traditional 12VDC powered 2-8 door controllers, elevator controllers and IO controllers.
  • 12-13.8VDC 1-5A power (PRS-Power available)
  • Lockable and vented steel enclosure, 13.6" x 3" x 19.3"
  • Dediated port for battery backup with built in charging
  • RJ45 Ethernet Port 10/100Mbps
  • 2 x RS485 port (used for communication between master controller/PRS-TDM and OSDP readers)
  •  2 x Integrated lockpower 12VDC 500mA (expandable to 8)
  • Intelligent power conol to reduce power consumption and reduce strain on solenoid based locksets
  • 2 wiegand reader ports, expandable to 8 (OSDP readers connect to RS-485 port)
  • Extra 12VDC power for readers and other peripherals
  • 4 dry contact solid state relays can switch u to 24VDC 1A (expandable to 16)
  • 6 fully customizable Inputs (expandable to 24)
  • Onboard diagnostics via LCD display
  • Diagnostics and IP programming also accessible via password/bruteforce protected web interface
  • Solid State Design
  • Fully distributed prssing; functions when disconnected from server
  • Maintenance free, no battery, uses super capacitor for Real Time Clock
