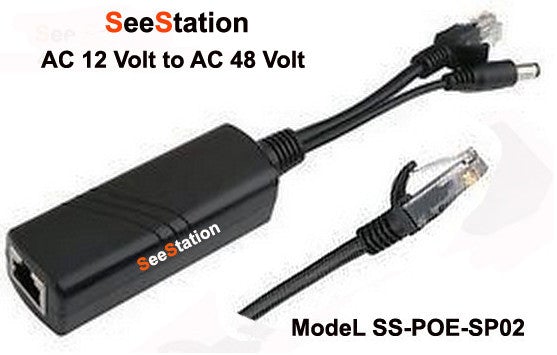

PN / SS-POE-SP02 *

POE Splitter Cable Adapter IEEE802.3af 12VDC 2A For IP Cameras.
Use with AC48V POE Switch, Power Supply or other power device Transfer distance of 100M. Compatible with all brands POE switches, network cameras. lightning proof and interference resistant.

Main Features:

RJ45 female INPUT Port:
Support the IEEE 802.3af the Power over Ethernet PoE Switch
Support 48V Unsolicited Power Over Ethernet PoE Switch
Support 48V Unsolicited Power Over Ethernet PoE Adapter

Specification:

Compliant with IEEE802.3af 15.4W
Power Input: DC44~57V
Power Output: DC12V, max 2A
Splits the 48V DC power over RJ-45 Ethernet cable into different DC output
Data & Power INPUT Port: from RJ45 female
Data Output Port: RJ45 Male
Power Output Port: 5.5x2.1mm DC Power Plug
Data Transfer Rate: 10/100Mbps
Data Transfer Distance 300M
Devices will be detected before poe input
Power Pin: support both 1/2(+),3/6(-) or 4/5(+),7/8(-)
Body size: 80 x 26x 26 mm
DC cable length：210mm
RJ45 Modular Plug cable length：210mm
